Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Features:
- Proprietary Silicon Nomex Diaphragm
- Choice of Springs from 3psi to 26psi (Optional)
- High Grade Billet Aluminum Construction
- Stainless Steel Rods and Clevis
- Turbosmart Unique Locking Collar System

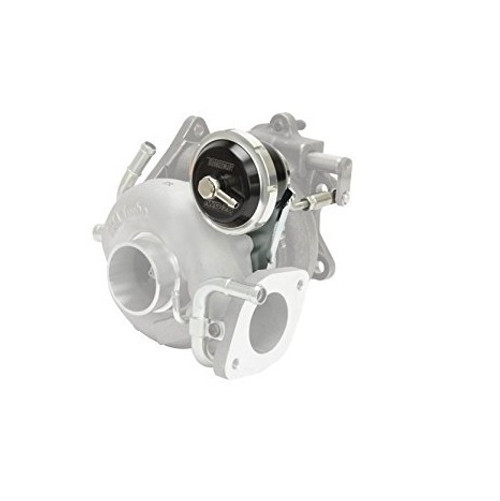

This is a bolt on fitment for the TD04 Series turbocharger as fitted factory to various EJ20 and EJ25 WRX’s from 1997 – 2007.
Supplied With:
- IWG75 Wastegate Actuator
- Vehicle Specific Mounting Bracket
- Springs Pre-Fitted as per Description
- Required Fasteners & Swivel Hose Barb
Vehicle Fitment:
This is a bolt on fitment for the TD04 Series turbocharger as fitted factory to various EJ20 and EJ25 WRX's from 1997 - 2007.
- Subaru WRX GC8/GF8 1997 – 2000
- Subaru WRX GDA/GGA 2001 – 2007
