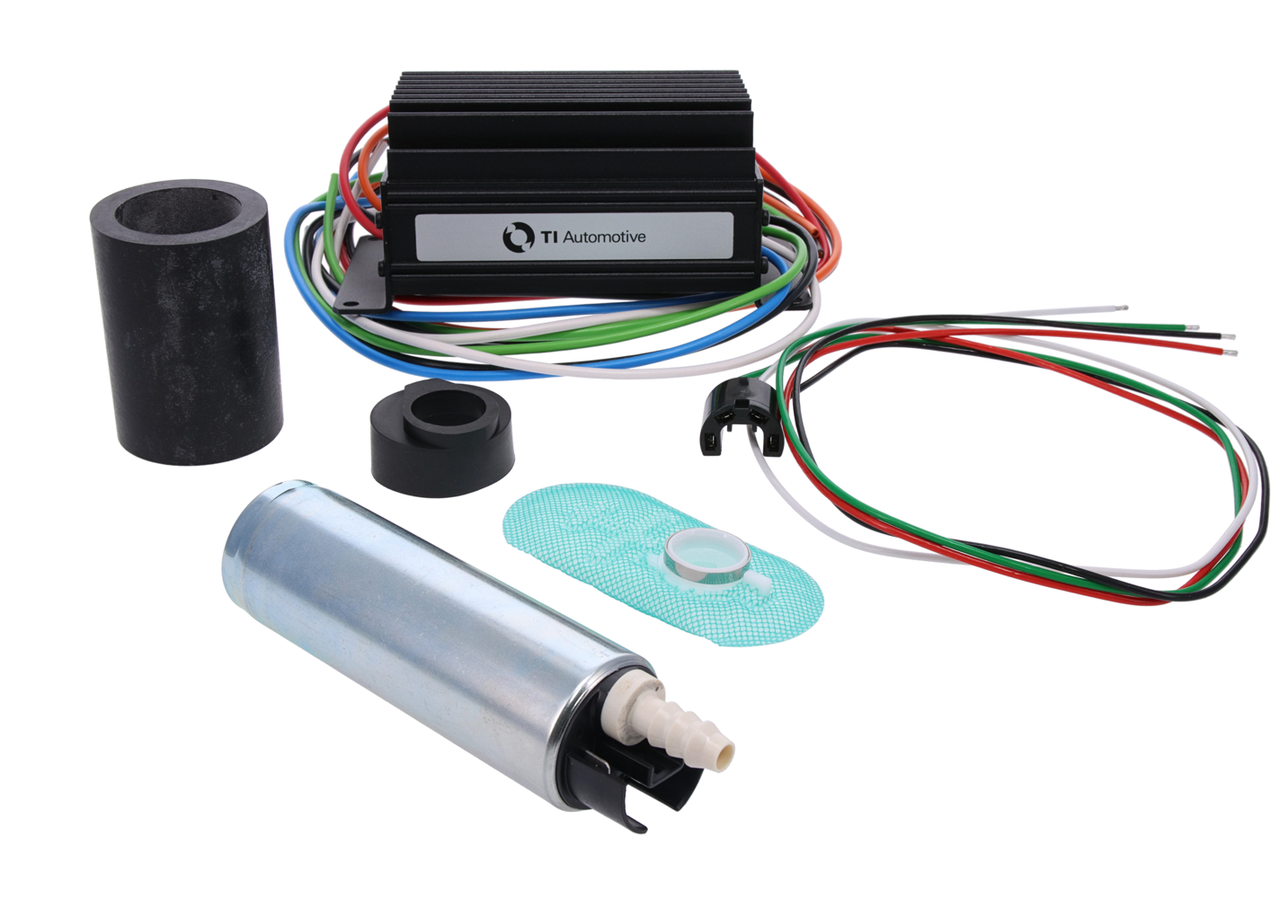

Walbro BKS1001 E5LM Brushless In Tank Fuel Pump w/Controller

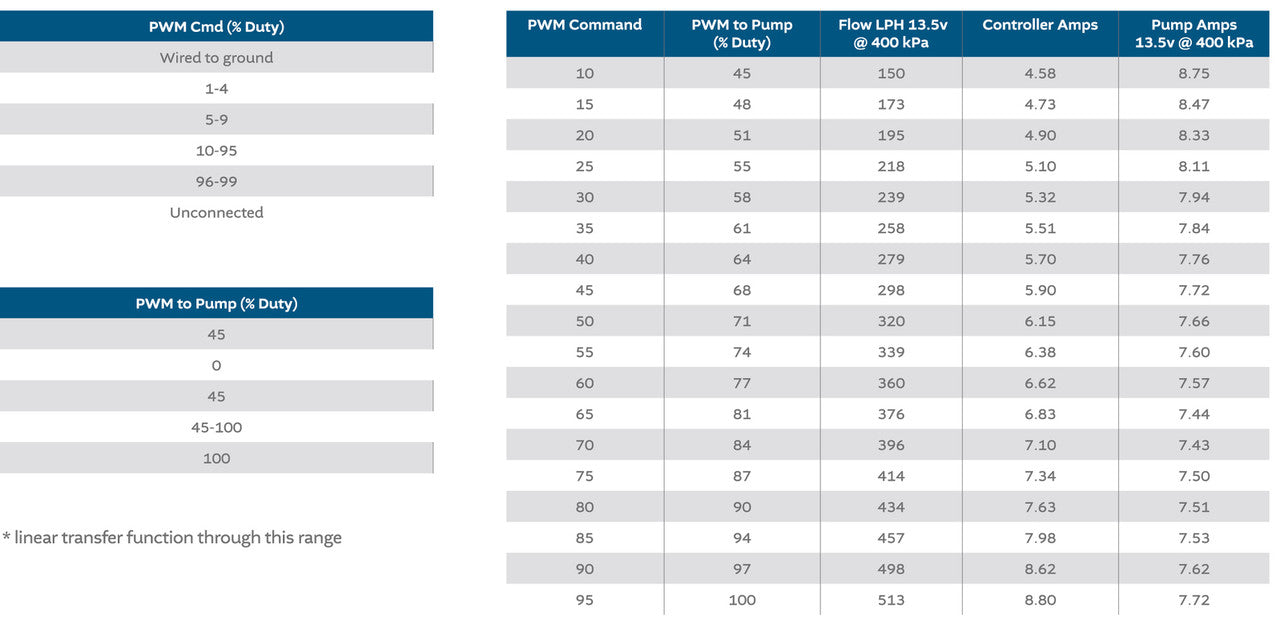

The BKS1001 is the next generation of our popular BKS1000 high pressure direct-fit fuel pump kit. Now

with PWM (pulse-width modulation) control, you’ll enjoy a true three-step controller with functions for 100%

duty cycle, 50% duty cycle by grounding the command wire, and full PWM command by wiring the input to a

100Hz battery level PWM signal. More customization at the controller level means more power for your ride.

Features:

• Direct-fit replacement
• PWM (pulse-width modulation) input command
• Supports 1,000+ horsepower
• High pressure, high flow E5LM brushless screw pump
• Reduced system current draw
• Suitable for naturally aspirated and boosted applications
• Replaces current BKS1000 part number

Pump Description:

• Fuel: GAS OR FLEX
• Horsepower: 650 - 1000
• Flow @ 276 kPa: 400 lph - 550 lph
• Flow @ 40 psi: 145 gph
• Max System Pressure (psi): 112
• Max System Pressure (kPa): 772
• Inlet Diameter: 39 mm
• Pump Type: In-Tank Pump Kit
• Inlet Configuration: High output, in-tank, brushless fuel pump kit. Designed to fit most popular EFI applications
