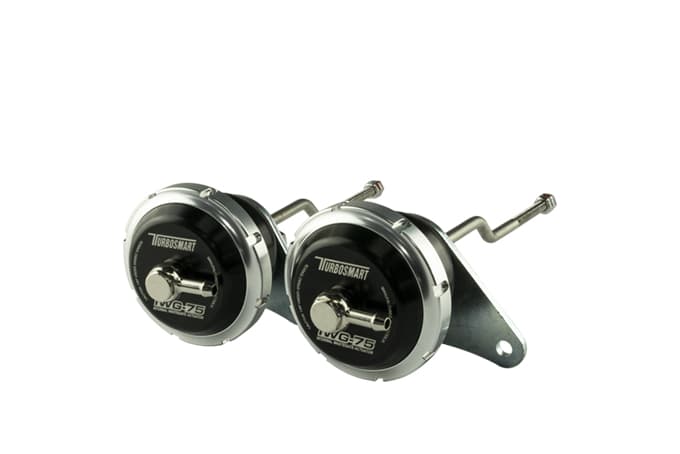

TURBOSMART IWG75 Wastegate Actuator Suit Porsche 996 911 Turbo Black 24PSI

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment, resulting in improved boost response throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost achieved earlier in the RPM and hold longer into higher RPM. These improvements can be amplified with higher base pressures, however, tuning and recalibration is likely required.

Available in
7 psi  / 0.5 BAR: TS-0624-3072

23psi / 1.7 BAR: TS-0624-3242

Features
Proprietary Silicon Nomex Diaphragm
Choice of Springs from 3psi to 26psi (Optional)
High-Grade Billet Aluminum Construction
Stainless Steel Rods and Clevis
Turbosmart Unique Locking Collar System

Notes
The 7psi Version is a direct replacement for the factory item. All other versions will require tuning/calibration of your engine's ECU.

SUPPLIED WITH

Pair IWG75 Wastegate Actuator

Pair Vehicle Specific Actuator Brackets

Springs Pre-Fitted as per Description

Required Fasteners and Swivel Hose Barb

SUITABLE FOR
This is a bolt-on fitment for the factory turbochargers fitted to the 3.6 Turbo motor in the Porsche 996 911.
