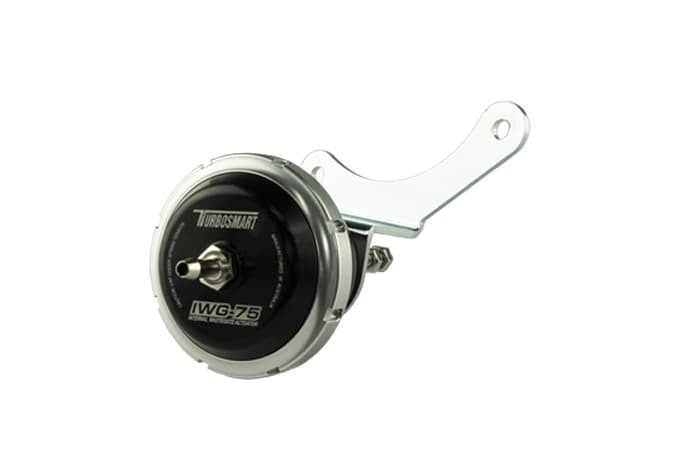

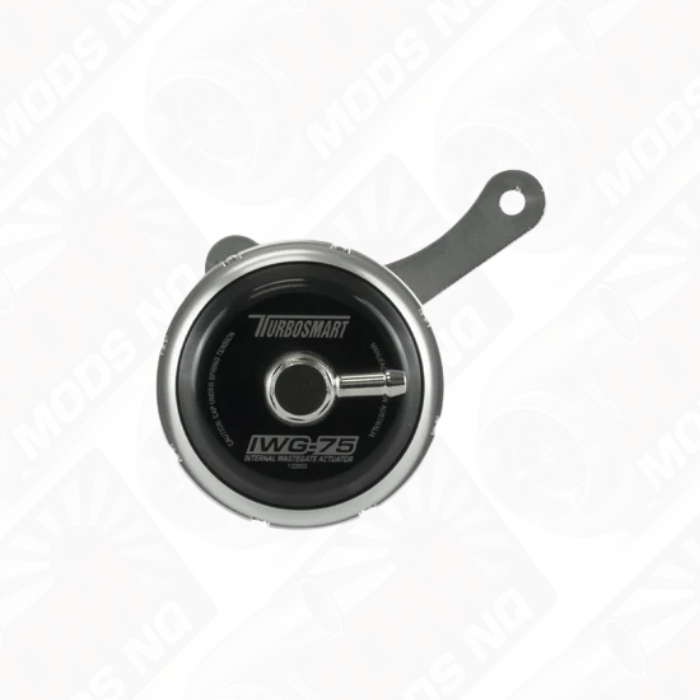

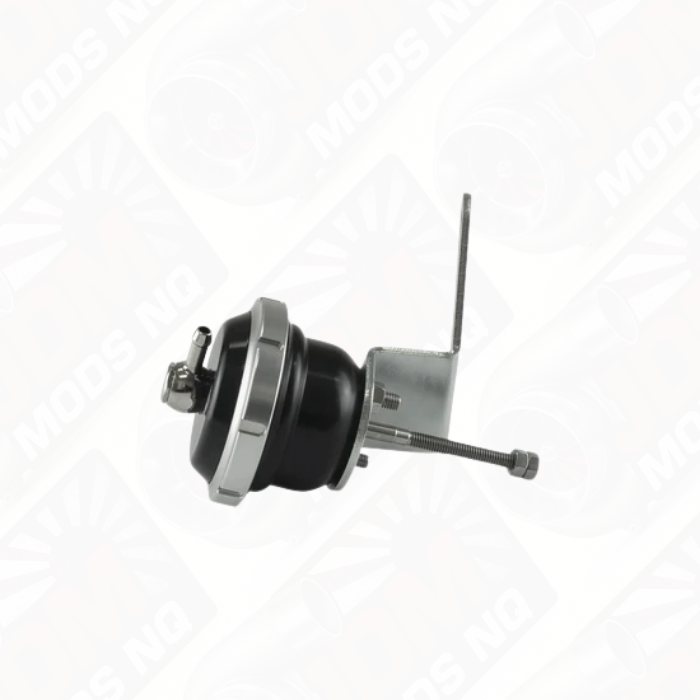

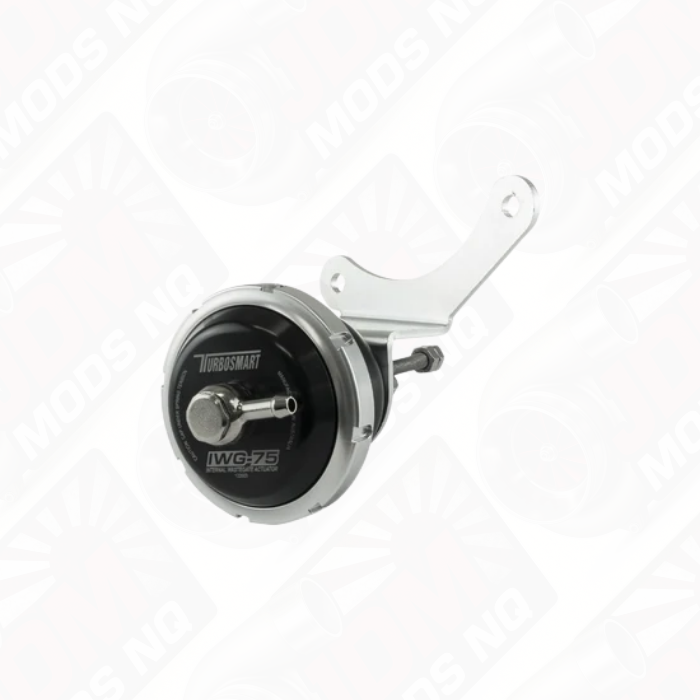

Turbosmart IWG75 Internal Wastegate Actuator 7psi - Ford Focus XR5 Turbo LS/LT/LV TS-0622-2072

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment resulting in improved boost response throughout the RPM range.

This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost being achieved earlier in the RPM and being held longer into higher RPM. These improvements can be amplified with higher base pressures. However, tuning and recalibration are likely required.

Features

Proprietary Silicon Nomex Diaphragm

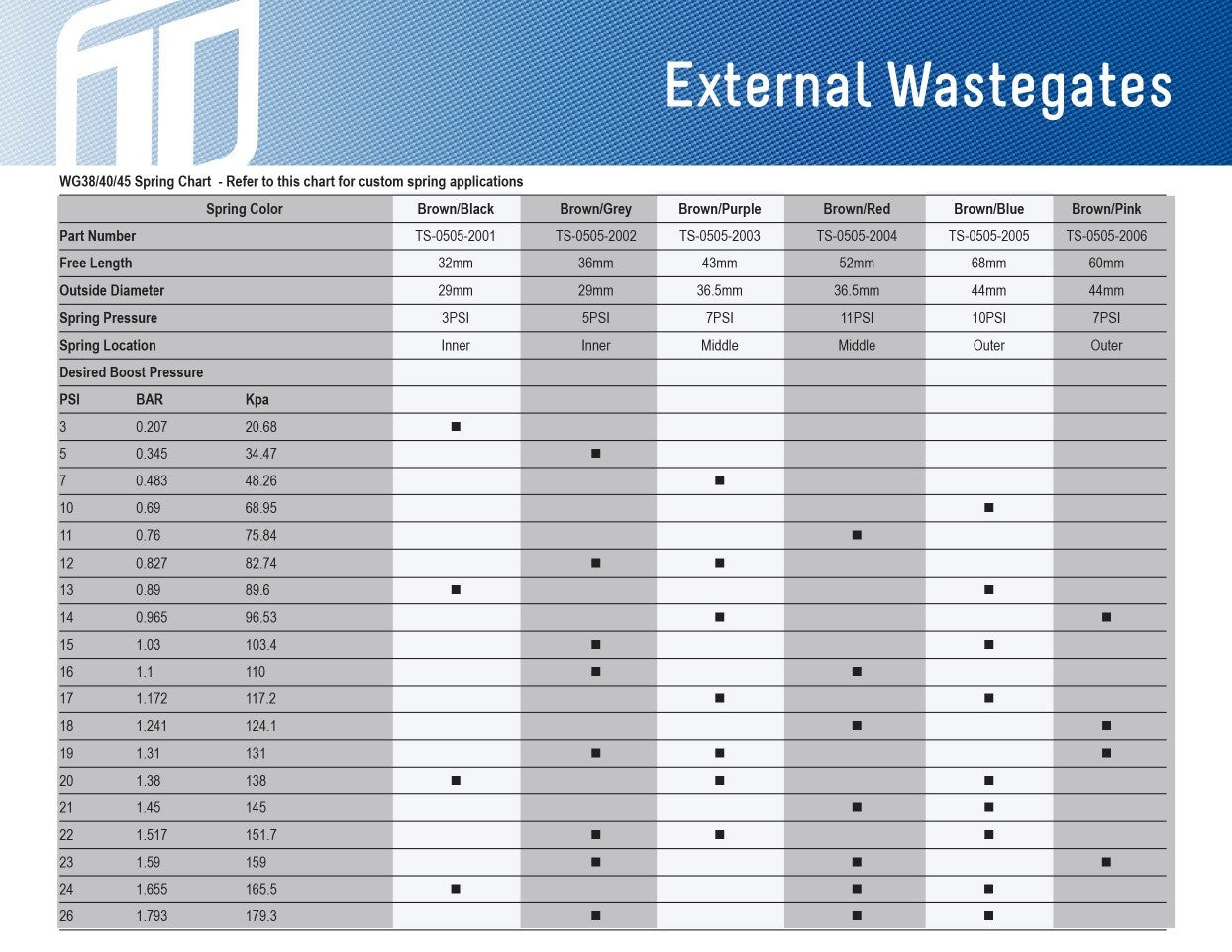

Choice of Springs from 3psi to 26psi (Optional)

High-Grade Billet Aluminum Construction

Stainless Steel Rods and Clevis

Turbosmart Unique Locking Collar System

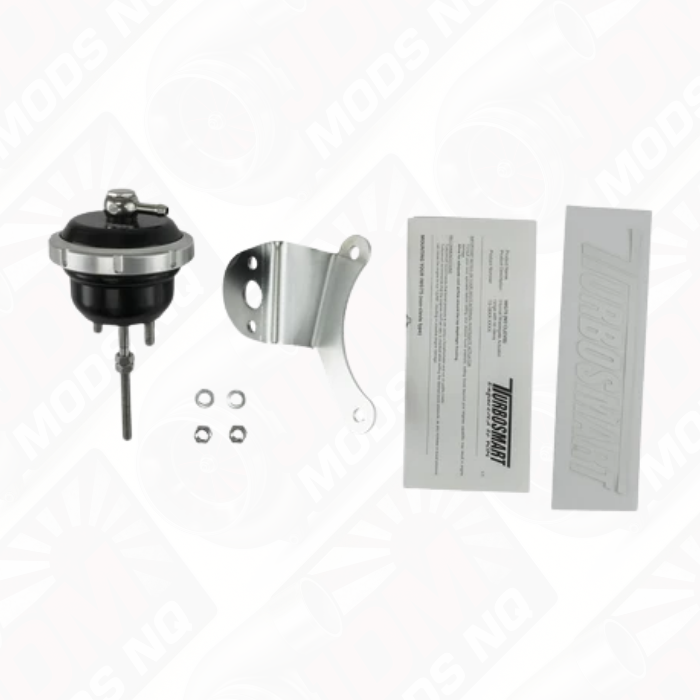

SUPPLIED WITH

IWG75 Wastegate Actuator

Springs Pre-Fitted as per Description

Required Fasteners & Swivel Hose Barb

SUITABLE FOR

This is a bolt-on fitment for the Borg Warner K04 turbocharger as fitted to the 2.5L DOHC Turbo 5 Cylinder motor in Ford Focus, Mondeo and Kuga (Excludes Focus RS Turbo, instead refer: TS-0622-3072)
