Turbosmart IWG75 Internal Wastegate Actuator 7psi - Ford Focus RS LV TS-0622-3072

Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.

Features

• Proprietary Silicon Nomex Diaphragm

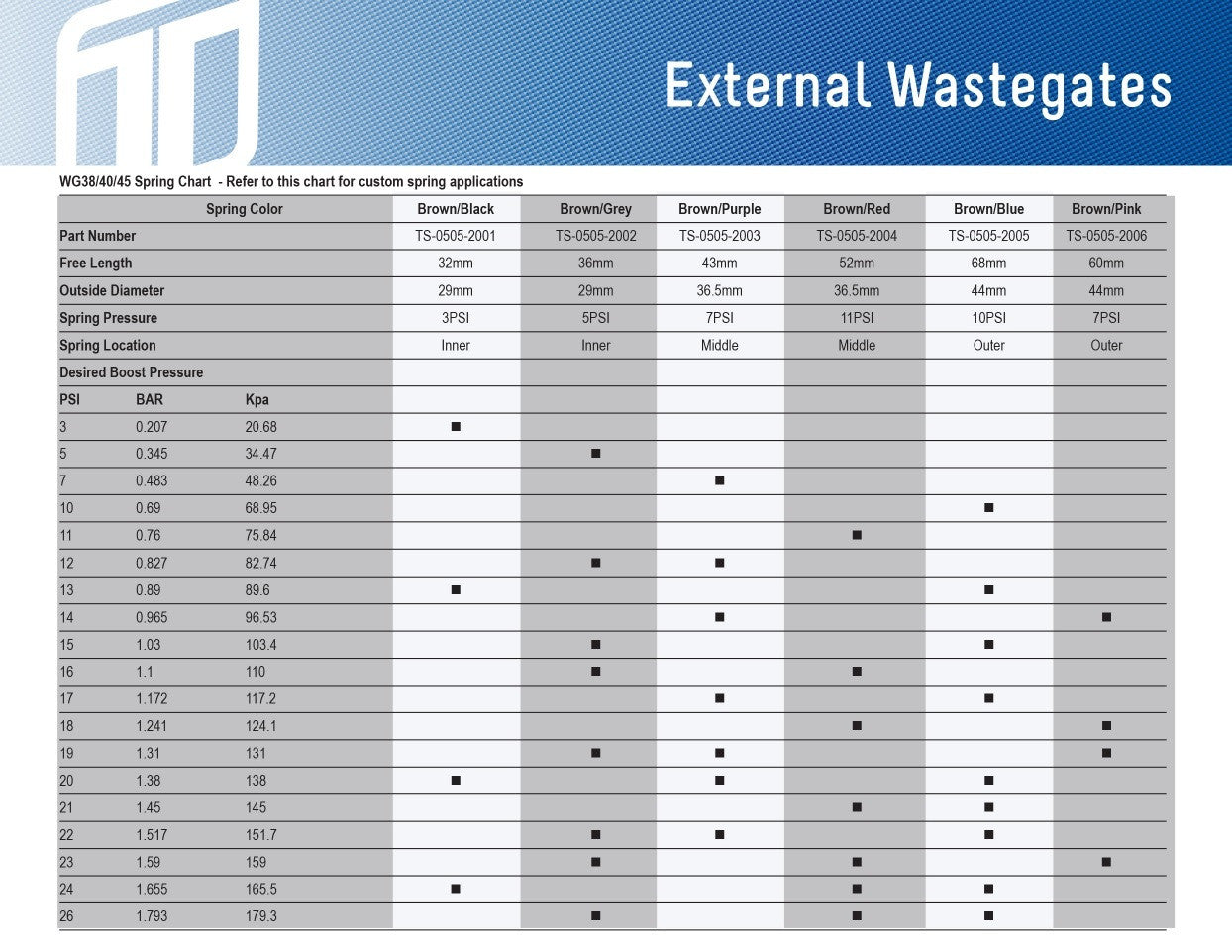

• Choice of Springs from 3psi to 26psi (Optional)
• High Grade Billet Aluminum Construction
• Stainless Steel Rods and Clevis
• Turbosmart Unique Locking Collar System

Supplied With:

• IWG75 Wastegate Actuator
• Springs Pre-Fitted as per Description
• Required Fasteners & Swivel Hose Barb

Fitment:

• Ford Focus RS LV 2009-2011
• Ford Focus RS LZ 2016-2017
