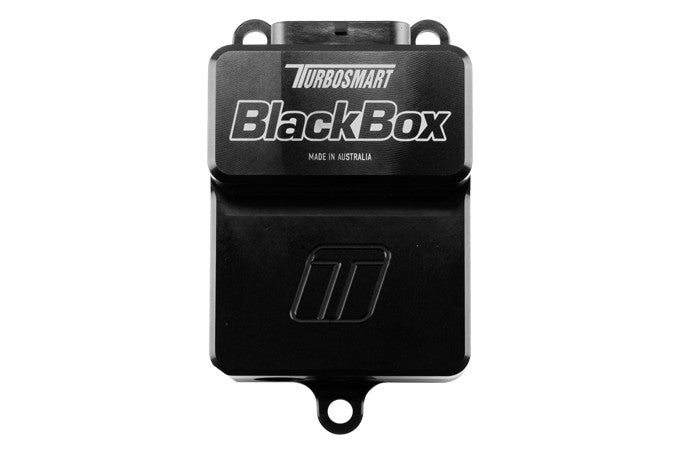

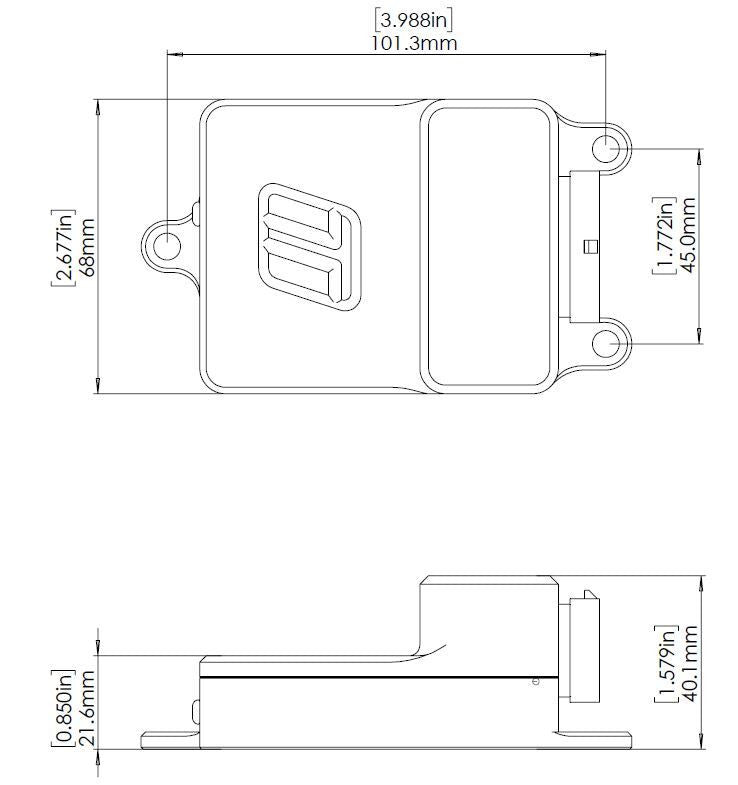

Turbosmart BlackBox Electronic Wastegate Controller

BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller which can be used in cooperation with a range of Factory, Aftermarket and Motorsport ECU’s.

The BlackBox provides protection from the current demands and translation of basic as well as more advanced boost control strategies into a gate position and can be used on single, or twin electronic wastegate systems for the ultimate in boost control.

The BlackBox is a Dual Channel, High current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50 as well as our Electronic poppet style gates including; CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates.

The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as used for traditional boost control solenoids, 0-5v position target, CAN position target and CAN bus override for more advanced ECU’s where control strategy can be developed natively. The Blackbox provides for auto-calibration of Electronic External Wastegates via a full sweep and includes over temp safety features using the temperature sensor inputs.

The BlackBox is pre-configured with the flow vs. lifts calibration data of all Electronic Actuatuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC-based application, and unlimited control strategies can be implemented with the CAN-based override system where your strategy is limited only by your ECU’s capability.

Supplied With:

• Turbosmart Black Box Wastegate Controller Unit
• 34 Pin Connector
• 34 Pins
• Turbosmart Decal
• Instruction Card

Features:

• Dual Channel High Current H-Bridge Outputs
• 2 x Wastegate Valve Position Inputs (0-5v)
• 2 x Wastegate Temperature Inputs (0-5v)
• 2 x Frequency Inputs (Advanced Wastegate Position Encoder)
• PWM Target Position Input
• Analog 0-5v Position Target
• CAN Bus Position Demand Target
• CAN Bus Valve Area Target
• CAN Bus Programmable PID Mode Option
• Factory Loaded PID Calibration for all Turbosmart eGates
• Internal Over-Current Protection
• Internal Over-Temp Protection
• Auto Position Calibration
• Anodized Aluminium Housing
• 34 Pin Superseal Connector

Suits:

• StraightGate50 eSG50
• GenV Electronic CompGate40 eWG40
• GenV Electronic HyperGate45 eWG45
• GenV Electronic ProGate50 eWG50
• GenV Electronic PowerGate60 eWG60
