Fenix Holden Kingswood HG-HZ/Torana 253 - 308 LH-UC Alloy Radiator & Fan Shroud Kit

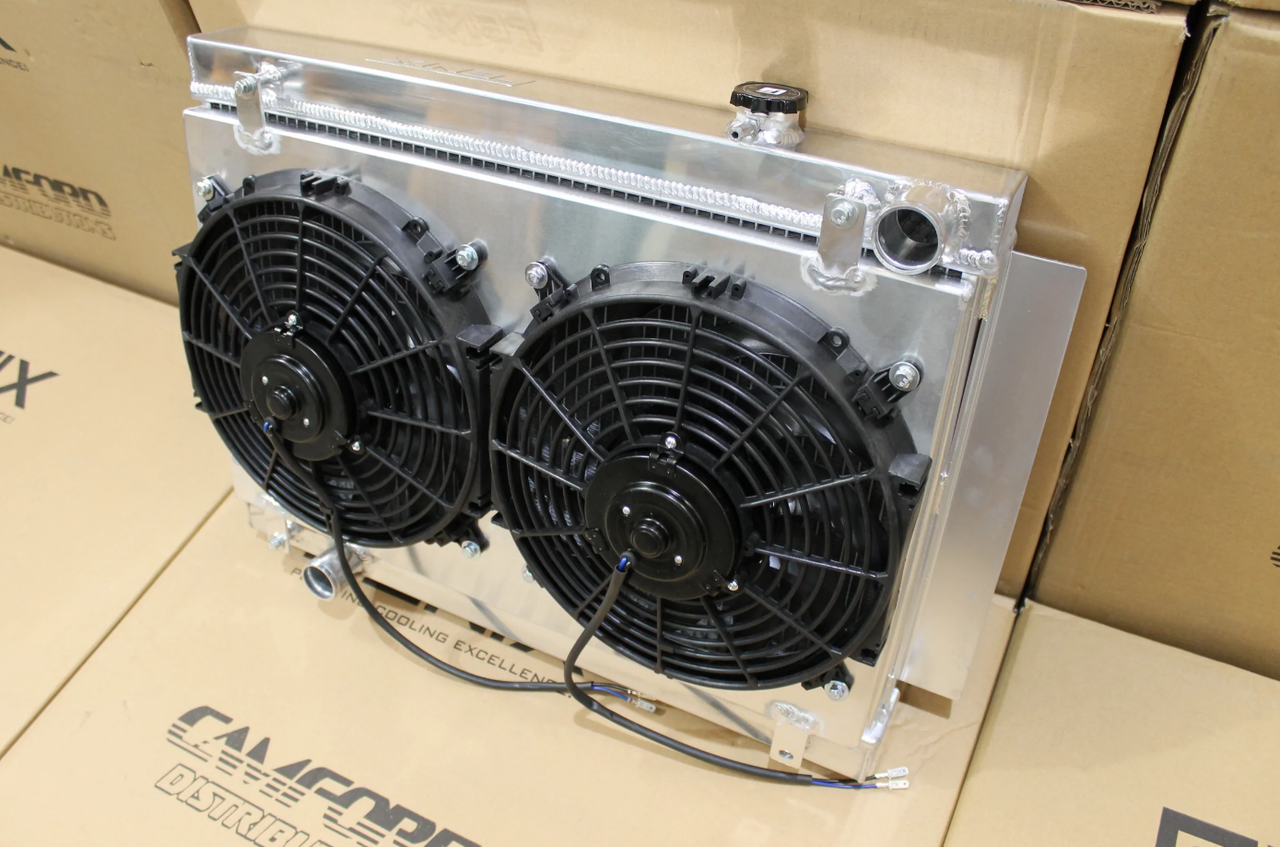

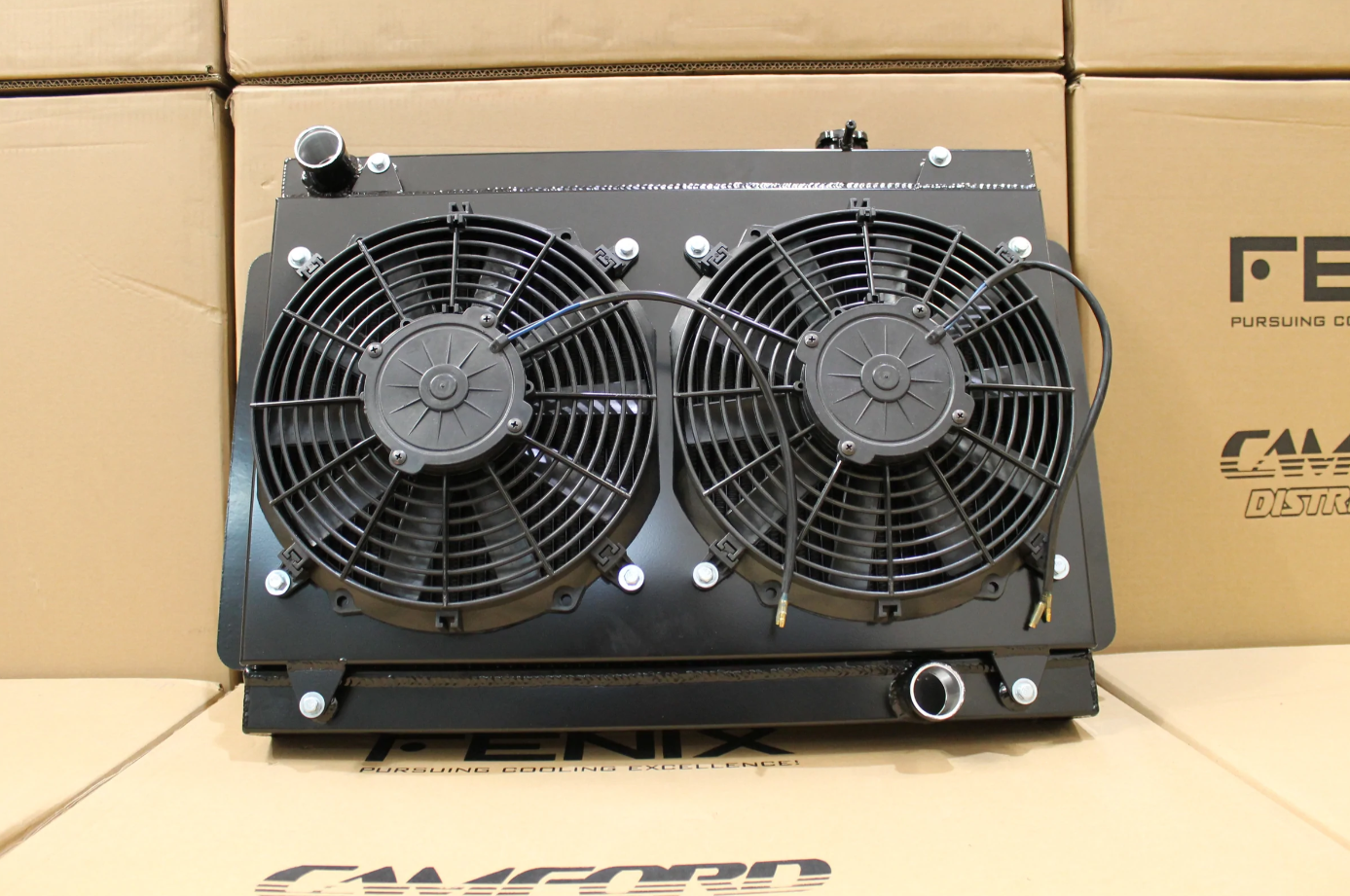

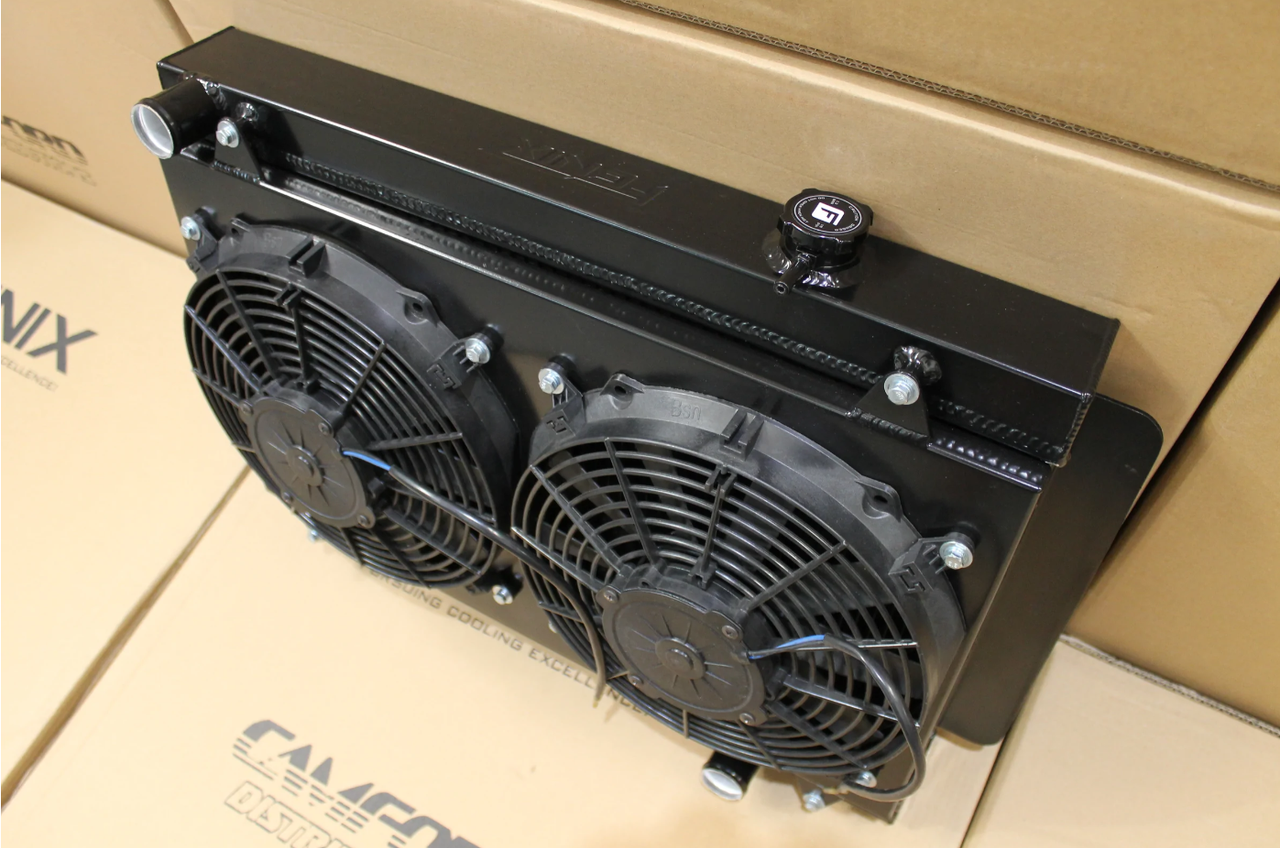

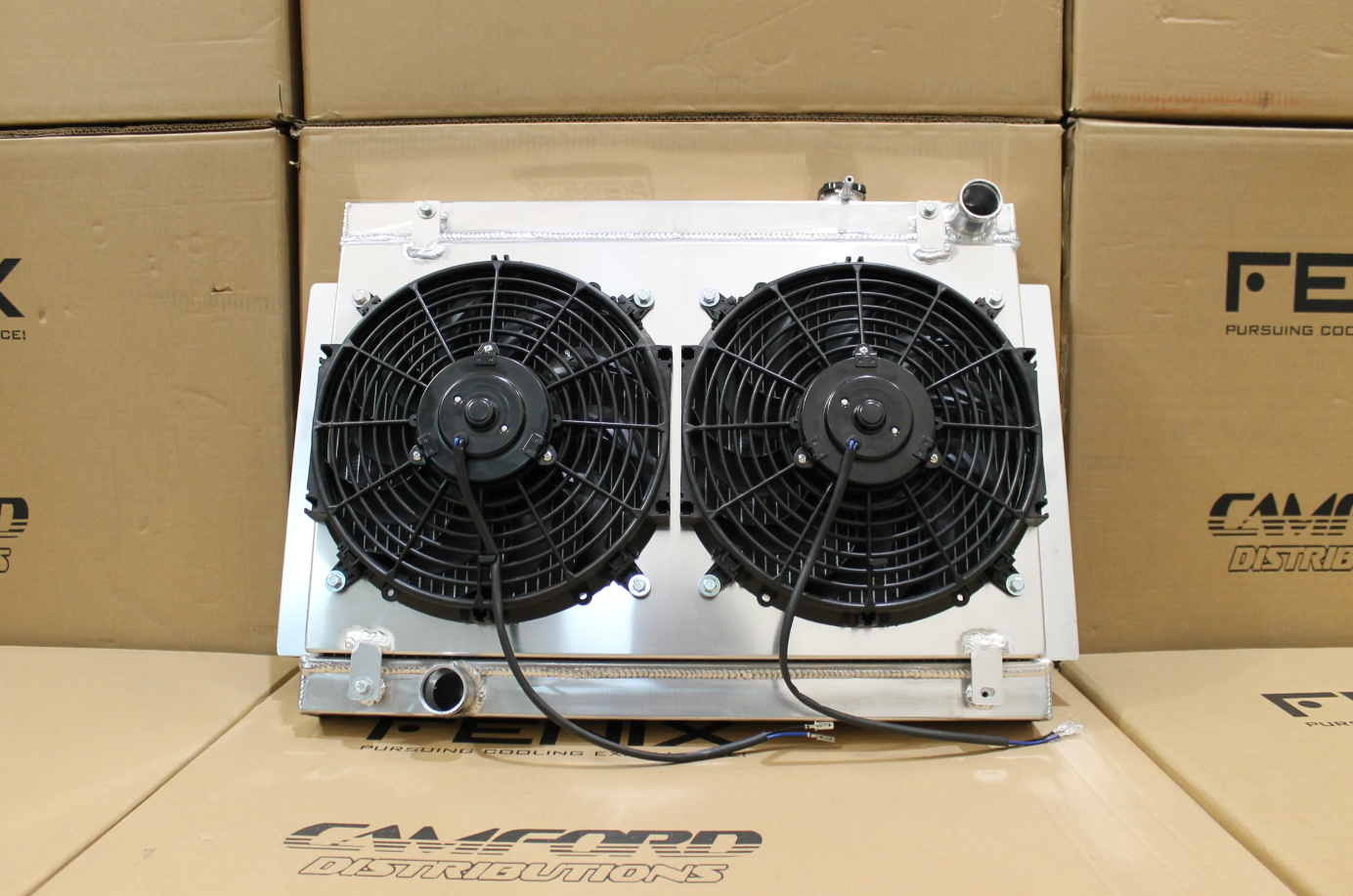

Fenix Holden Kingswood HG-HZ /Torana 253 - 308 LH-UC Full Alloy Performance Radiator & Fan Shroud Kit.

Part numbers and options

Specifications and installation

Fenix Part No: RACE3366W-FA56A, FAN3388-T.

Fan Specs: 1150CFM (ea).

Vehicle application and product details

Core size: 368mm x 620mm x 56mm

Direct replacement for:

Holden HG-HQ-HJ-HX-HZ Kingswood & Torana LH-LX-UC

253 – 308 V8

Transmission: Auto / Manual

Fan output: 1150 CFM each.

Features:

• Full Aluminium construction.

• 1/8” NPT temperature sensor port and hex bung.

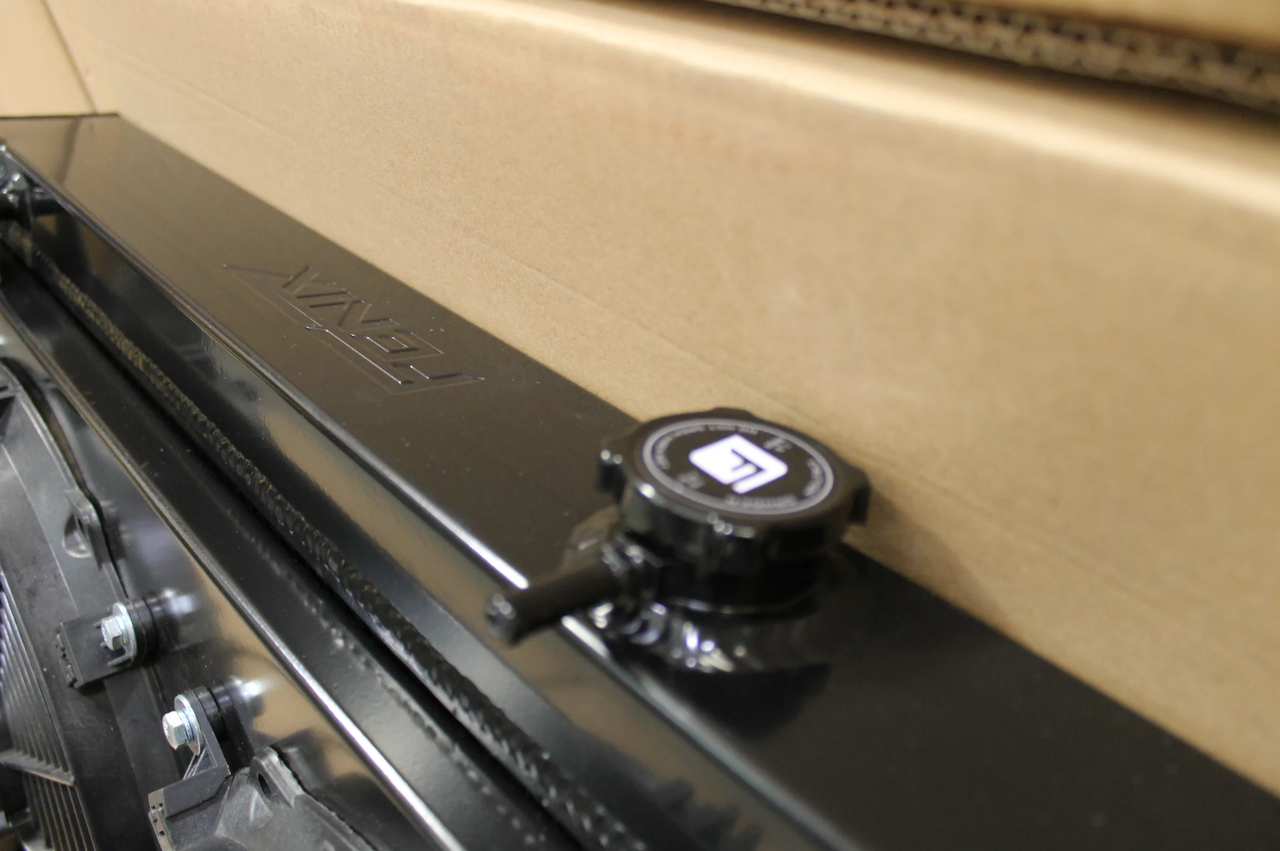

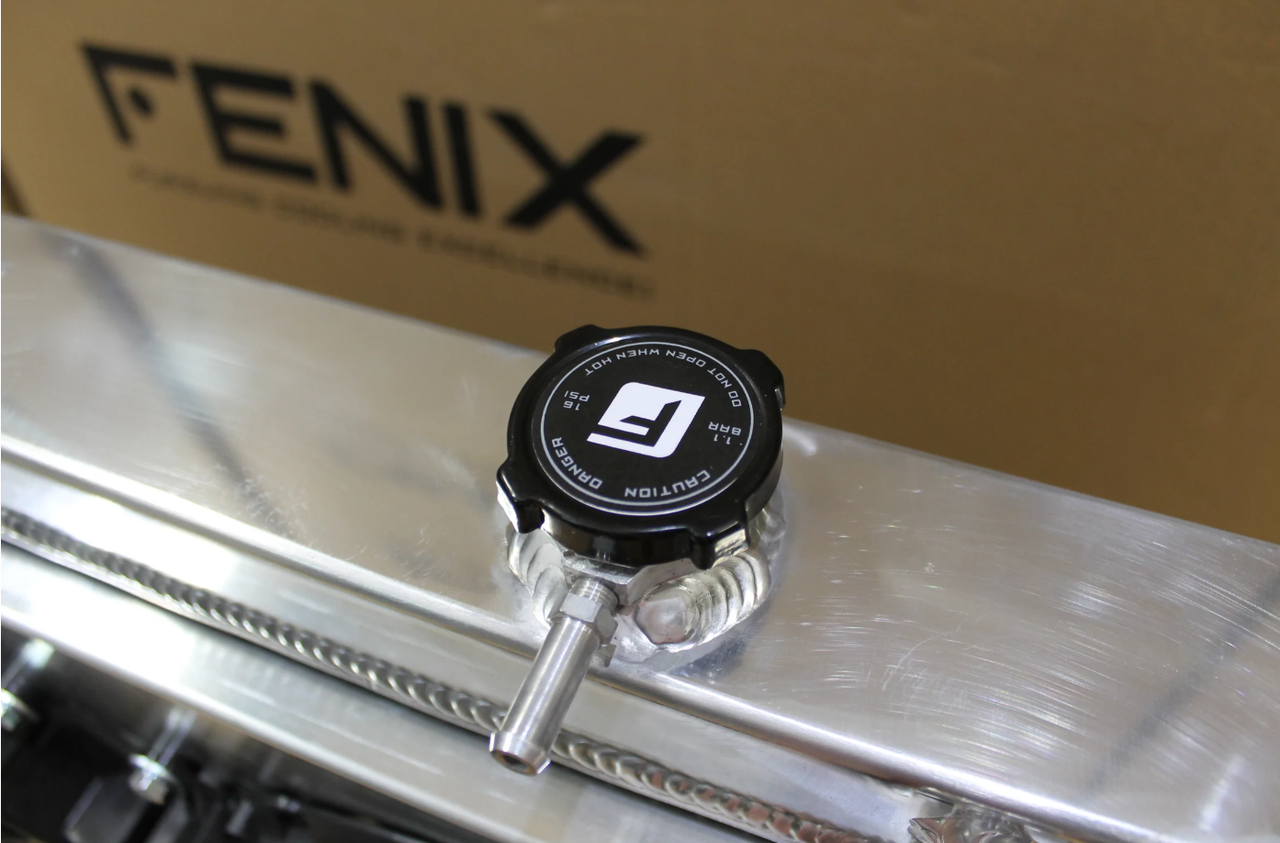

• V2 Fenix radiator cap.

• V2 billet drainage bung.

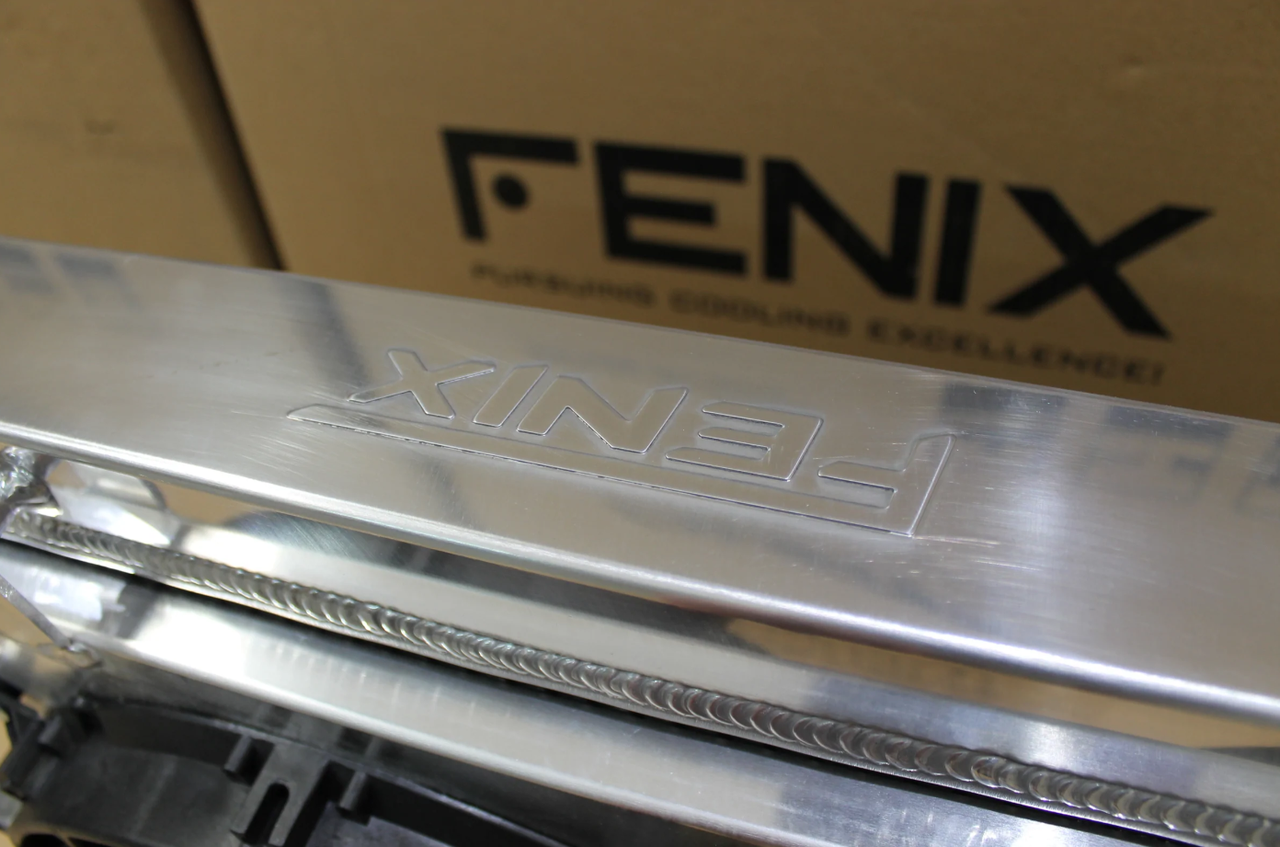

• Embossed Fenix logo on top tank.

NOTE:

Measurements for complete combo are as follows:

Top of cap to bottom of tank - 490mm

Tank to tank height - 465mm

Tank width - 620mm

Total width - 715mm

Tank thickness - 75mm

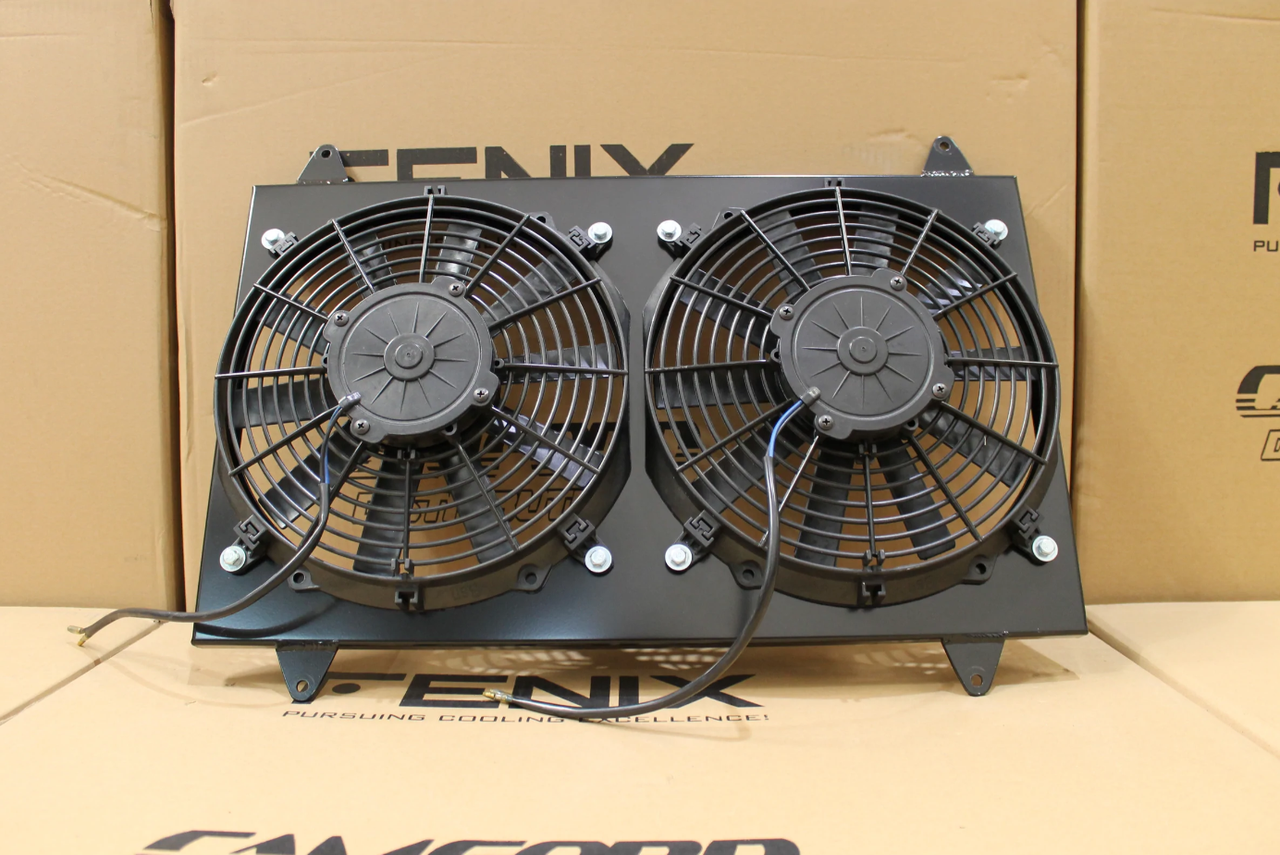

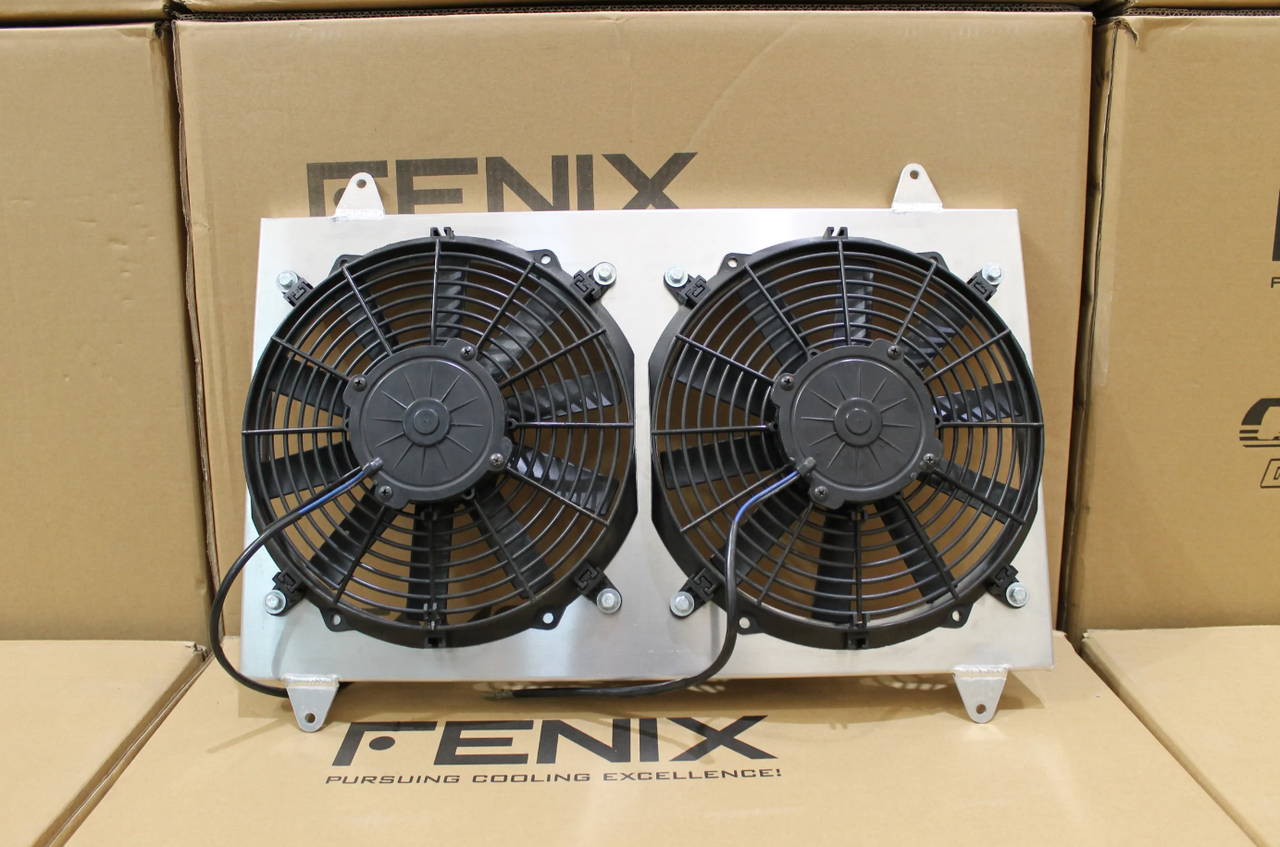

The shroud and fans are 85mm total depth, and 140mm bolted up to the radiator.

This rad comes with the Auto trans cooler. Fenix does not make a manual specific rad anymore.

If you want to bung the trans ports off (Not recommended) the threads are AN-6.

Please Note: This listing is for Manual Radiators only. If you require an Automatic Radiator with the built in transmission cooler, please contact us prior to purchasing to make sure they are available.

*Core size is tube and fin area only and does not include tanks or plate under tank.

Check the selected finish, transmission, dimensions and mounting requirements against your vehicle before ordering. Universal and conversion parts may require modification or professional installation.
