Full Alloy Radiator for Holden Kingswood HG-HZ/Torana LH-UC 253/308
SKU:
RACE3366W-BL
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$474.00
-100%
Regular price
Regular price
$474.00
Unit price
per
Full Alloy Radiator for Holden Kingswood HG-HZ/Torana LH-UC 253/308
Sale price
$474.00
Regular price
Regular price
$474.00
Unit price
per
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Product Description
FENIX: RACE3366-FA56A / BL
Core size: 368mm x 612mm x 52mm
Direct replacement for:
Holden HG-HQ-HJ-HX-HZ Kingswood & Torana LH-LX-UC,
253 – 308 V8,
AUG/1970 - APR/1980.
Transmission: Auto / Manual
Features:
• Full Aluminium construction.
• 1/8” NPT temperature sensor port and hex bung.
• V2 Fenix radiator cap.
• V2 billet drainage bung.
• Embossed Fenix logo on top tank.
NOTE:
38mm outlets. Configured to suit Holden V8 motors.
Total Size: 490mm (height), 620mm (tank width), 720mm (sideband width), 75mm (tank depth).
This rad comes with the Auto trans cooler. Fenix does not make a manual specific rad anymore.
If you want to bung the trans ports off (Not recommended) the threads are AN-6.

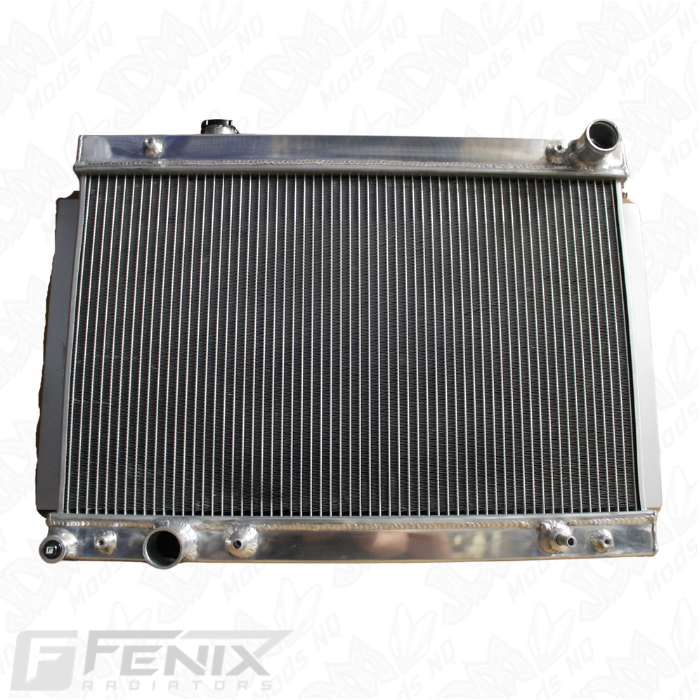

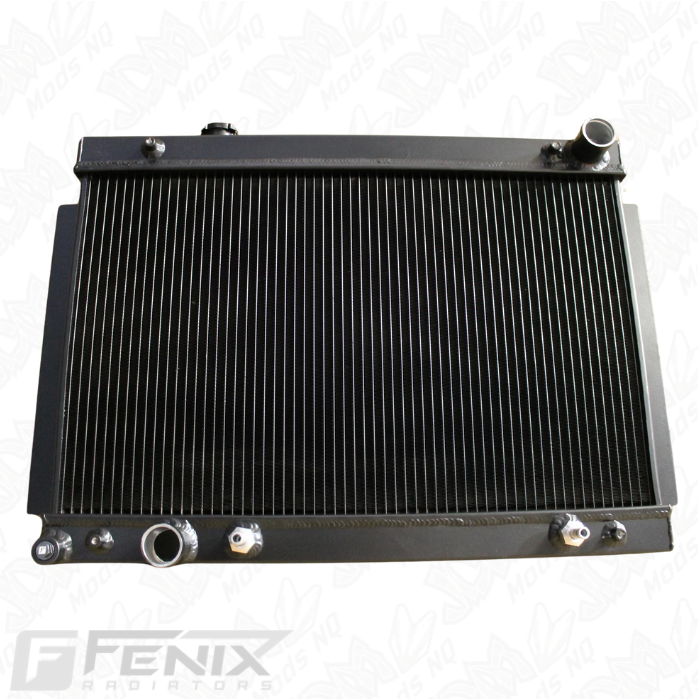

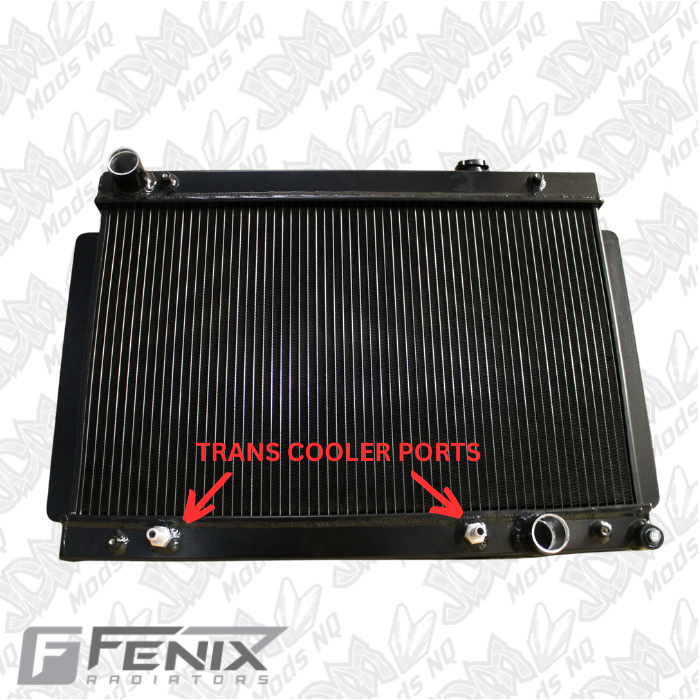

The picture dont show the trans ports except one black photo. They are for reference only.
Upgrade your old, stock radiator with a Fenix Performance alloy radiator. Designed with performance and reliability in mind, we find the weak points of OEM radiators and eliminate them, while offering a factory fit and an increased cooling efficiency of up to 30%.
Partner your Fenix Performance Radiator with the optional Fan & Shroud for the ultimate cooling combo.
*Core size is tube and fin area only and does not include tanks or plate under tank.
