SAAS Isuzu Dmax/MU-X 3.0 2012-20 Cold Side from Intercooler | SSH5101

SAAS Isuzu Dmax/MU-X 3.0 2012-20 Cold Side from Intercooler (part number SSH5101) is available from JDM Mods NQ. Review the specifications and fitting notes below to confirm suitability for your setup.

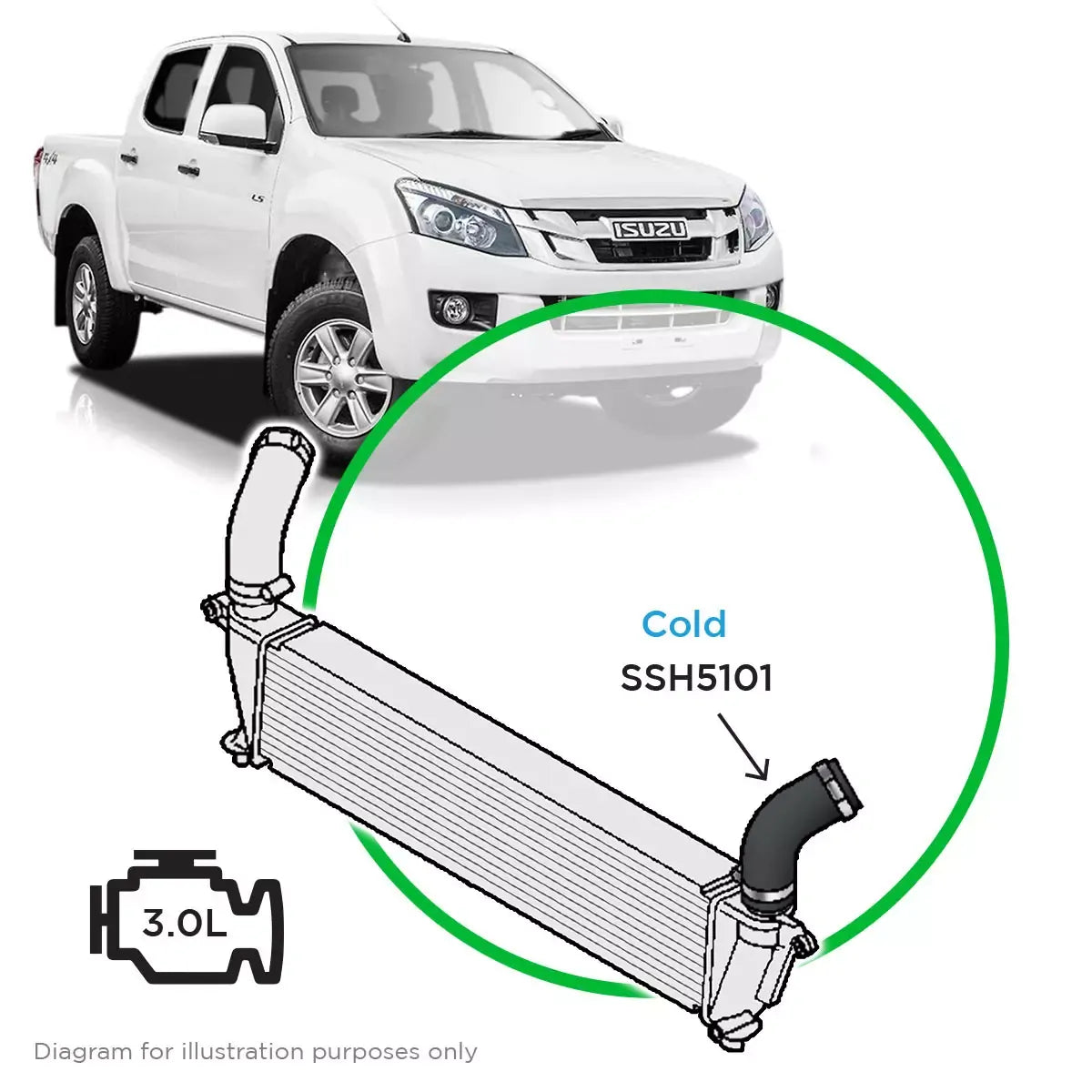

SSH5101 Isuzu Dmax/MU-X 3.0 2012-20 Cold Side from Intercooler

Suits:

• Isuzu D-MAX _ TFR-TFS _ 3.0 _ 4JJ1 4JJ3 _ 120-140kW _ 2012-
• Isuzu MU-X _ LS _ 3.0 _ 4JJ1 _ 130kW _ 2013-2021
• Mazda BT50 _ TF _ 3.0 _ 4JJ3 _ 140kW _ 2020-

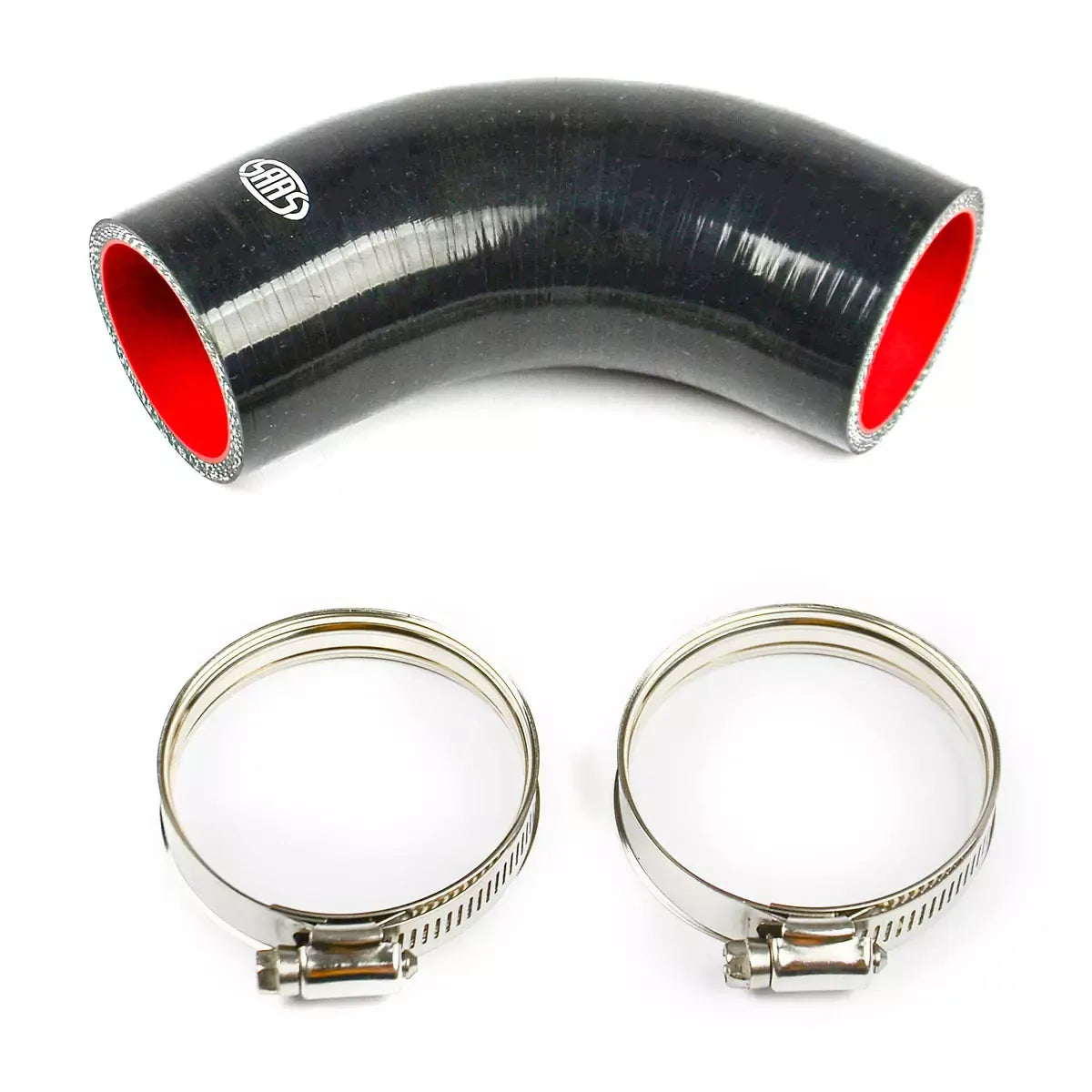

Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps. Featuring a robust 6mm wall thickness, a SAAS Silicone Turbo Intercooler Hose will provide additional pipe strength whilst remaining flexible and will not expand or collapse in on itself. Our new Stainless Dual Bead clamps provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don't be caught out with a split rubber hose roadside - upgrade to SAAS Silicone hoses today.

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry

Features

• ID 1: 48.5mm
• ID 2: 48.5mm

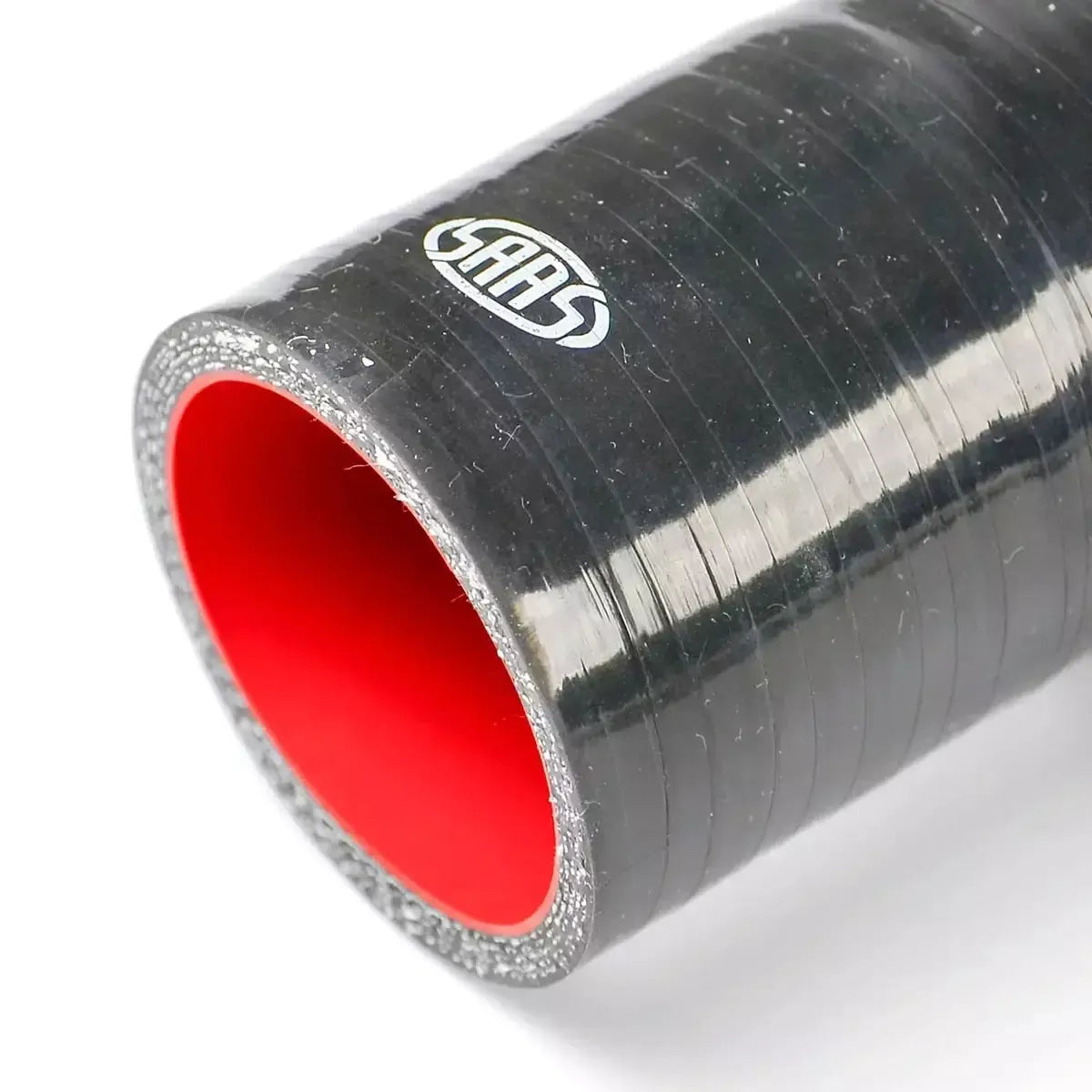

• Smooth Form 5 Ply polyester reinforced silicone moulded to factory shape
• 6mm wall thickness
• Stable operating temp from -50°C to +200°C
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products

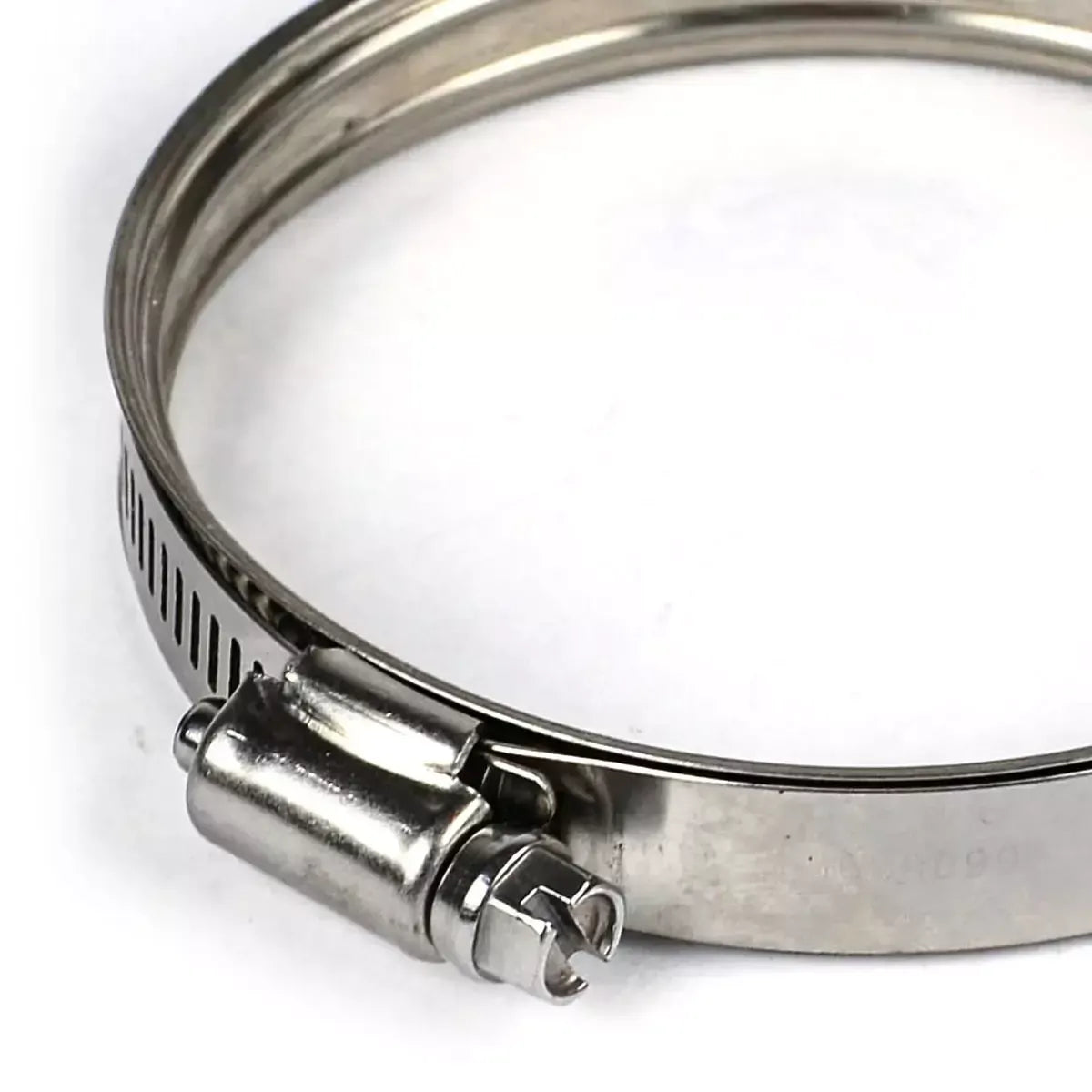

• Stainless Dual Bead Hose Clamps included

Specifications and applications

• D-MAX
  • Diesel 3L/120KW 3.0 DiTD 4x4 (TFS85) 4JJ1-TC,4JJ1E4C-L TFR,TFS All-wheel Drive Ute (01/07-06/12)
  • Diesel 3L/120KW 3.0 DiTD (TFR85) 4JJ1-TC,4JJ1E4C-L TFR,TFS Rear-Wheel Drive Ute (01/07-06/12)
  • Diesel 3L/130KW 3.0 CRDi 4x4 (TFS85J) 4JJ1-TC TFR,TFS All-wheel Drive Ute (06/12-05/20)
  • Diesel 3L/130KW 3.0 CRDi (TFR85J) 4JJ1-TC TFR,TFS Rear-Wheel Drive Ute (06/12-05/20)
  • Diesel 3L/130KW 3.0 CRDi 4JJ1-TC TFR,TFS Rear-Wheel Drive Platform/Chassis (06/12-05/20)
  • Diesel 3L/130KW 3.0 CRDi 4x4 4JJ1-TC TFR,TFS All-wheel Drive Platform/Chassis (06/12-05/20)
  • Diesel 3L/140KW 3.0 DDi 4x4 4JJ3-TCX TFR,TFS All-wheel Drive Ute (06/20-on)
  • Diesel 3L/140KW 3.0 DDi Rear-Wheel Drive (TFR40J) 4JJ3-TCX TFR,TFS Rear-Wheel Drive Ute (06/20-on)
• MU-X
  • Diesel 3L/130KW 3.0 CRDi 4x4 4JJ1-TC,4JJ1-TCX LS All-wheel Drive SUV (11/13-05/21)
  • Diesel 3L/130KW 3.0 CRDi 4JJ1-TC,4JJ1-TCX LS Rear-Wheel Drive SUV (11/13-05/21)
  • Diesel 1.9L/110KW 1.9 DDi RZ4E-TC TFS/TFR Rear-Wheel Drive SUV (11/23-on)
  • Diesel 1.9L/110KW 1.9 DDi RZ4E-TC TFS/TFR All-wheel Drive SUV (11/23-on)
• MAZDA BT-50
  • Diesel 3L/140KW 3.0 4x4 (TFS40JPR, TFS40JDR) 4JJ3-TCX TF All-wheel Drive Ute (07/20-on)
  • Diesel 3L/140KW 3.0 (TFR40JPR, TFR40JDR) 4JJ3-TCX TF Rear-Wheel Drive Ute (07/20-on)
  • Diesel 3L/140KW 3.0 4x4 (TFS40JSR-Y, TFS40JPR-Y, TFS40JDR-Y) 4JJ3-TCX TF All-wheel Drive Platform/Chassis (07/20-on)
  • Diesel 3L/140KW 3.0 (TFR40JSR-Y, TFR40JPR-Y, TFR40JDR-Y) 4JJ3-TCX TF Rear-Wheel Drive Platform/Chassis (07/20-on)
