SAAS Nissan Navara D40 Pathfinder R51 V9X V6 Silicone Intercooler Cold Side 2nd (Middle) Stage | SSH4402

SAAS Nissan Navara D40 Pathfinder R51 V9X V6 Silicone Intercooler Cold Side 2nd (Middle) Stage (part number SSH4402) is available from JDM Mods NQ. Review the specifications and fitting notes below to confirm suitability for your setup.

SSH4402 Nissan Navara D40 Pathfinder R51 V9X V6 01/2010 on Silicone Intercooler Cold Side 2nd (Middle) Stage

The SAAS SSH4402 Intercooler hose is an upgrade pipe to the OE rubber hose on Spanish built D40 Navara and R51 Pathfinder having a VIN starting with VSK.

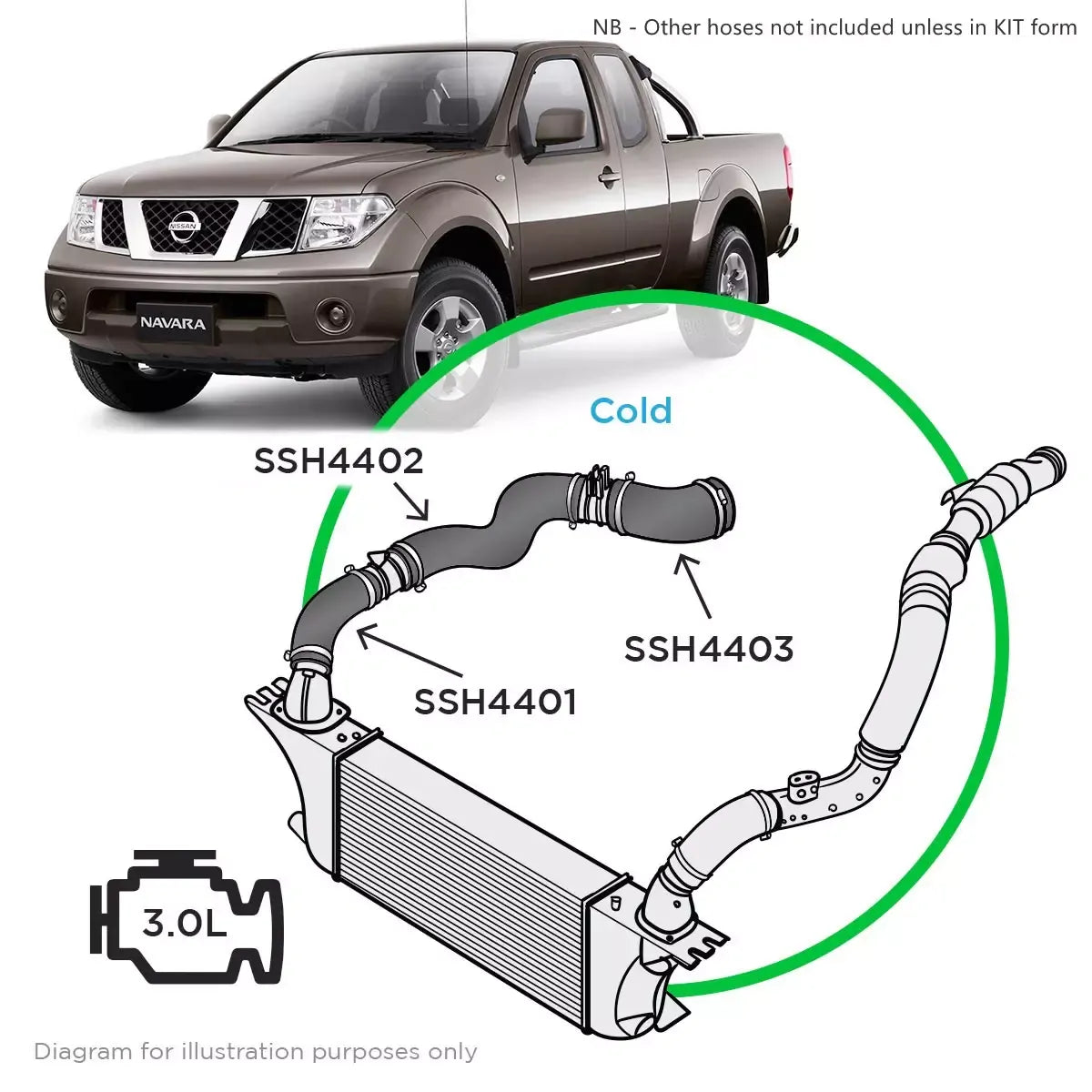

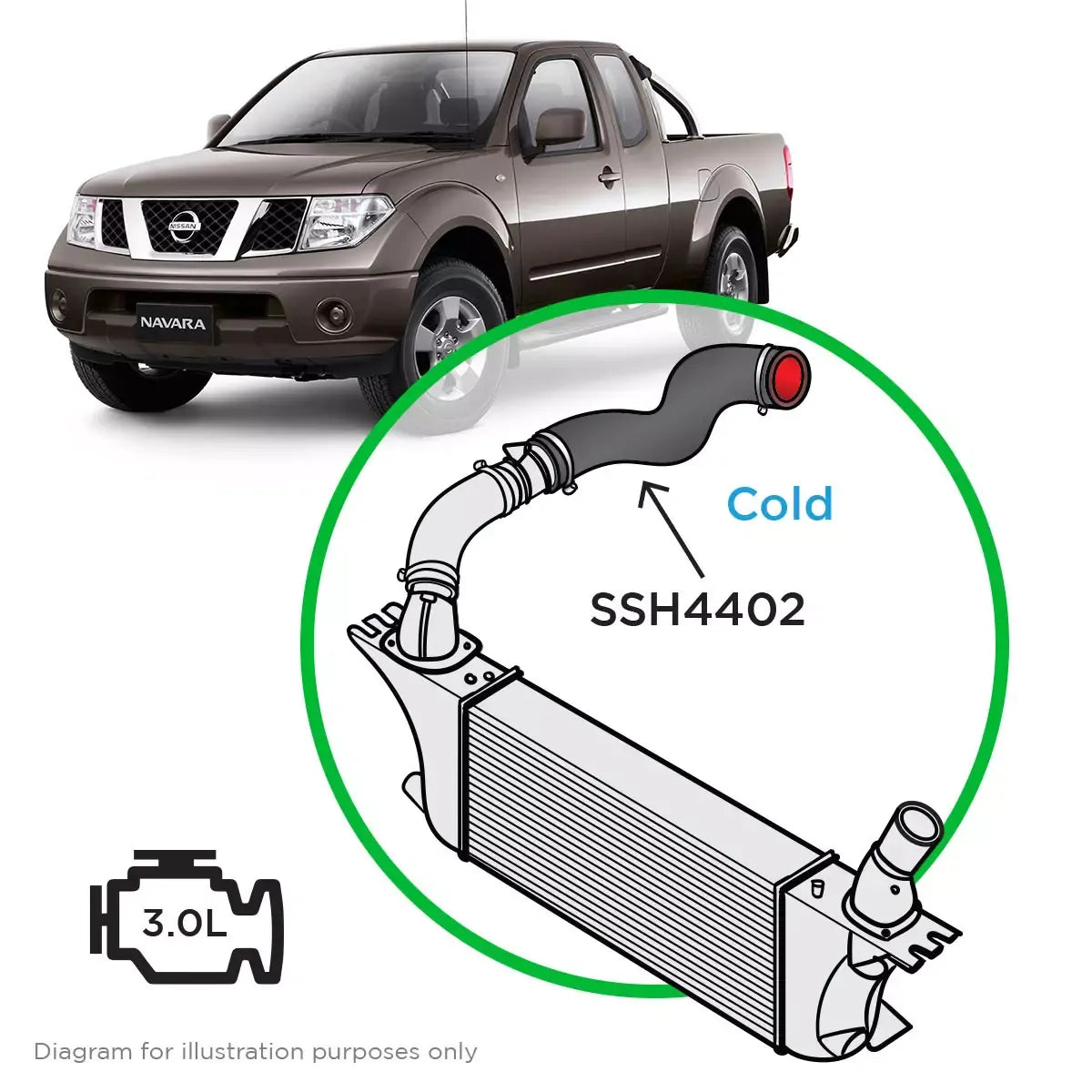

These have the V9X V6 diesel engine and are a POST 01/2010 build. It replaces the hose that connects between the intercooler and throttle body (middle section) and is the second stage of the 3 hoses that form the cold side intercooler to throttle body assembly.

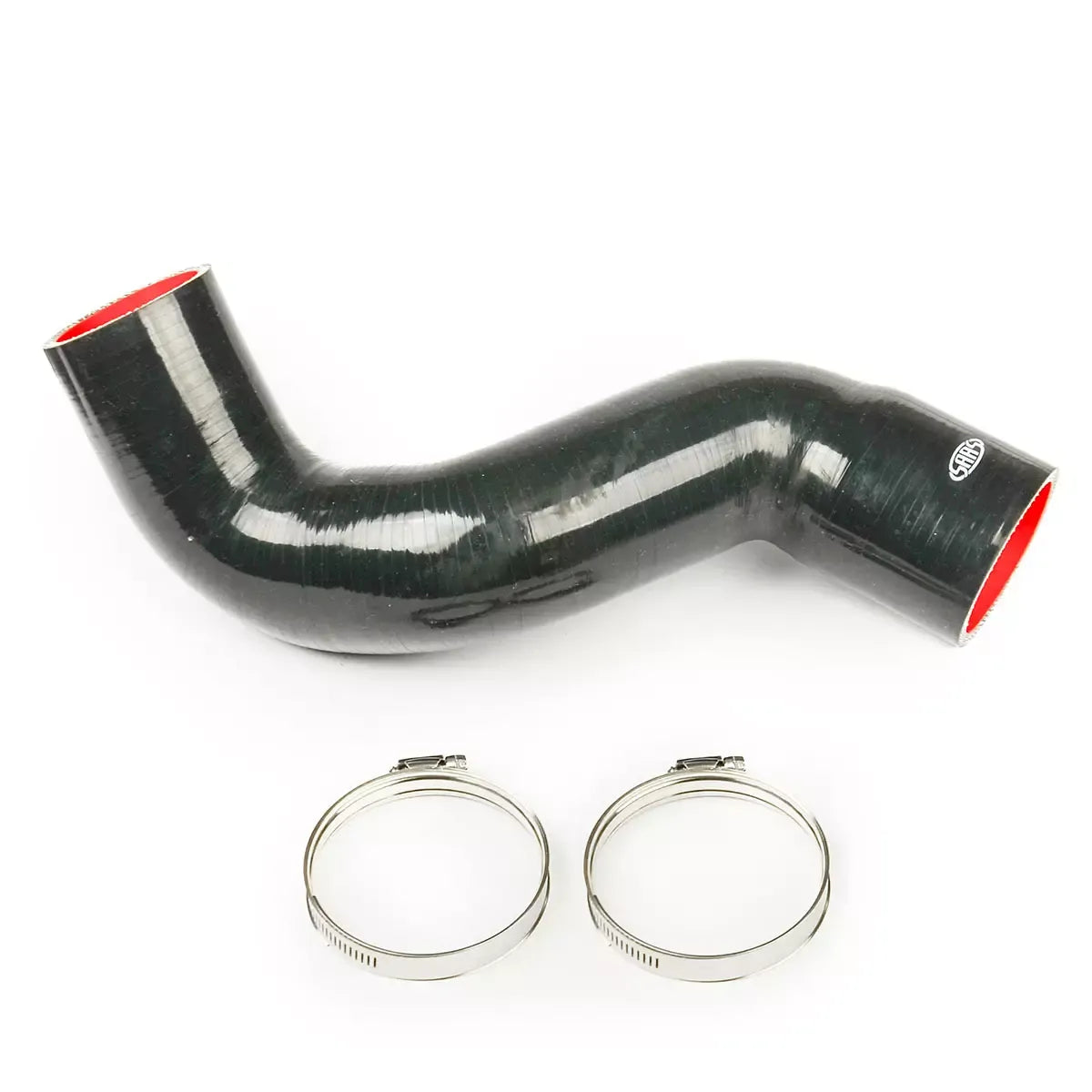

Designed to replace the factory cold side middle hose pipe - 144635X21B - with an upgraded flurosilicone coated silicone hose. Our multi-ply hose kits are supplied with stainless dual bead hose clamps and provide a secure solution and reduce the possibility of hose failure. Leaking, swollen or split intercooler hoses can lead to a loss of power and/or ingestion of unfiltered air

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry

Fitting Notes:

SAAS Silicone Intercooler Hoses are designed to be more robust than the OE style of rubber hose. The multi-ply design may require warming to fit over pipe flanges and should be installed with the provided hose clamps to ensure a secure seal.

Features

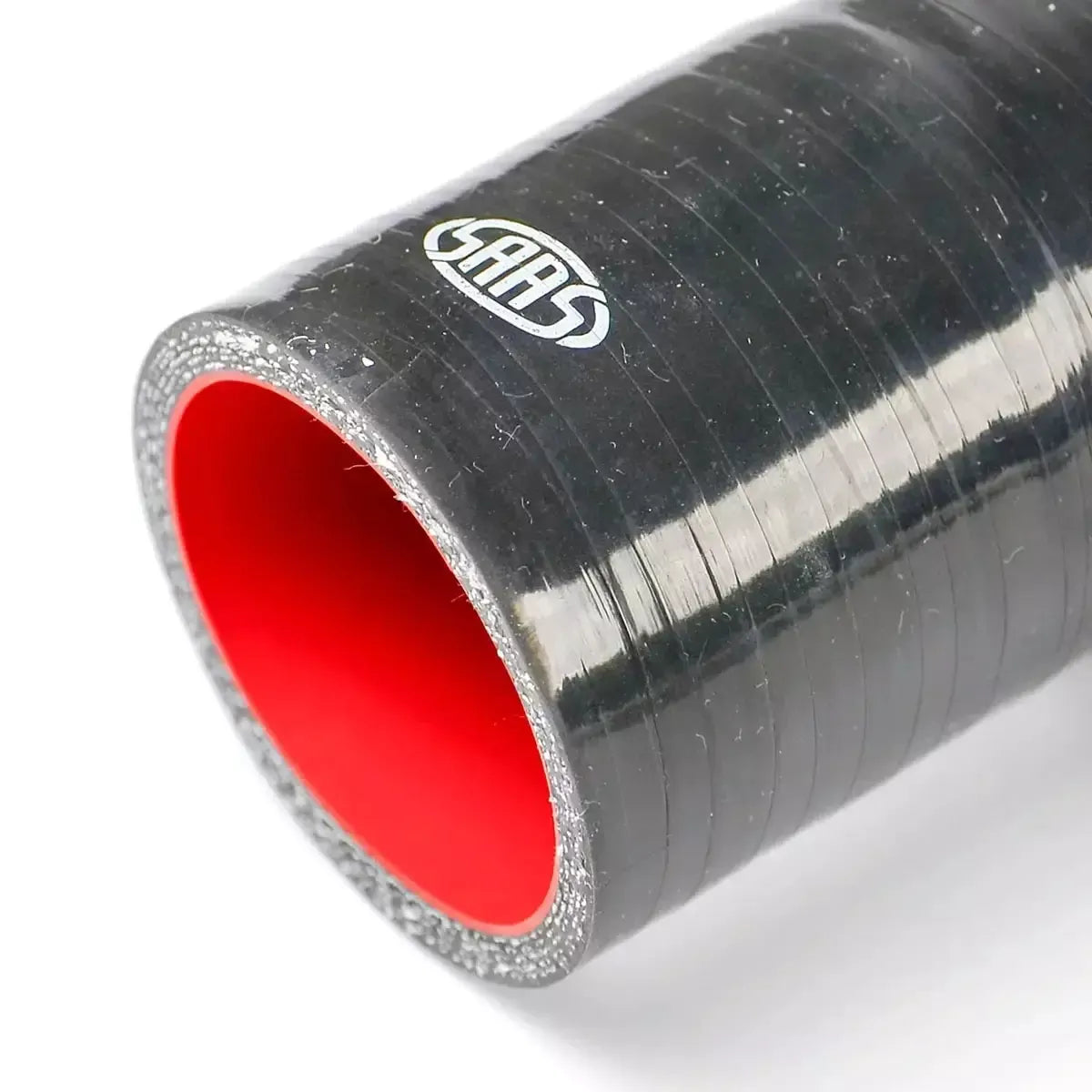

• Smooth Form 5 Ply polyester reinforced silicone moulded to factory shape
• ID 1: 66mm
• ID 2: 59mm
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products
• Stable operating temp from -50°C to +200°C
• 4:1 burst pressures at safe working loads
• Black finish to retain that OE look

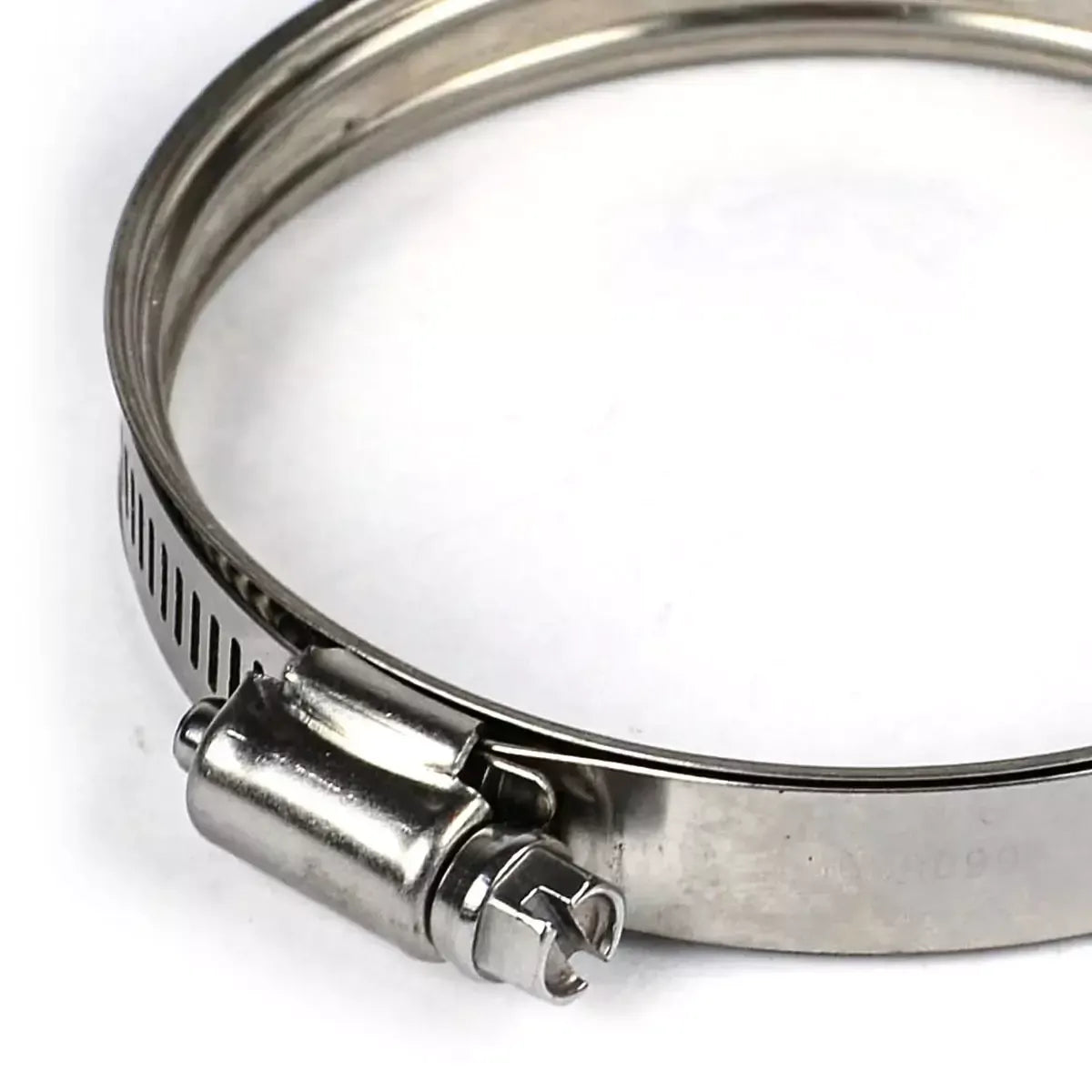

• Stainless Dual Bead Hose Clamps included
