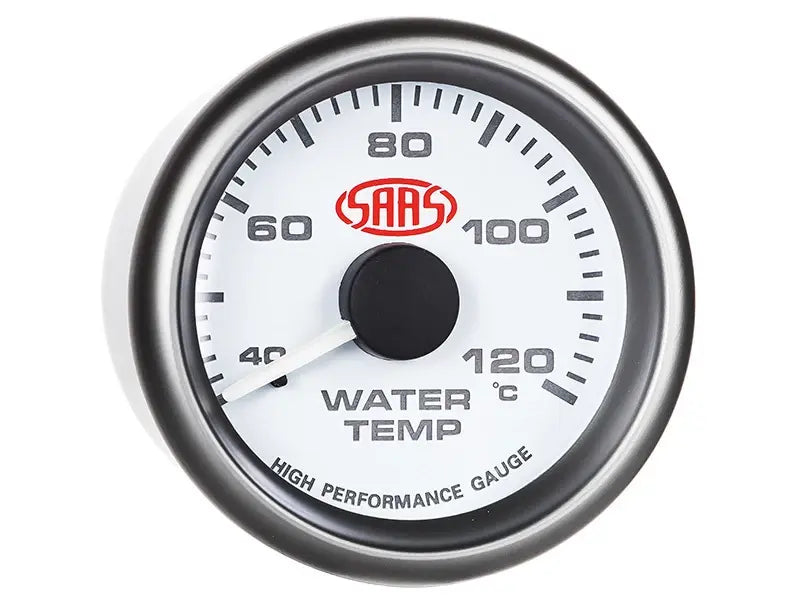

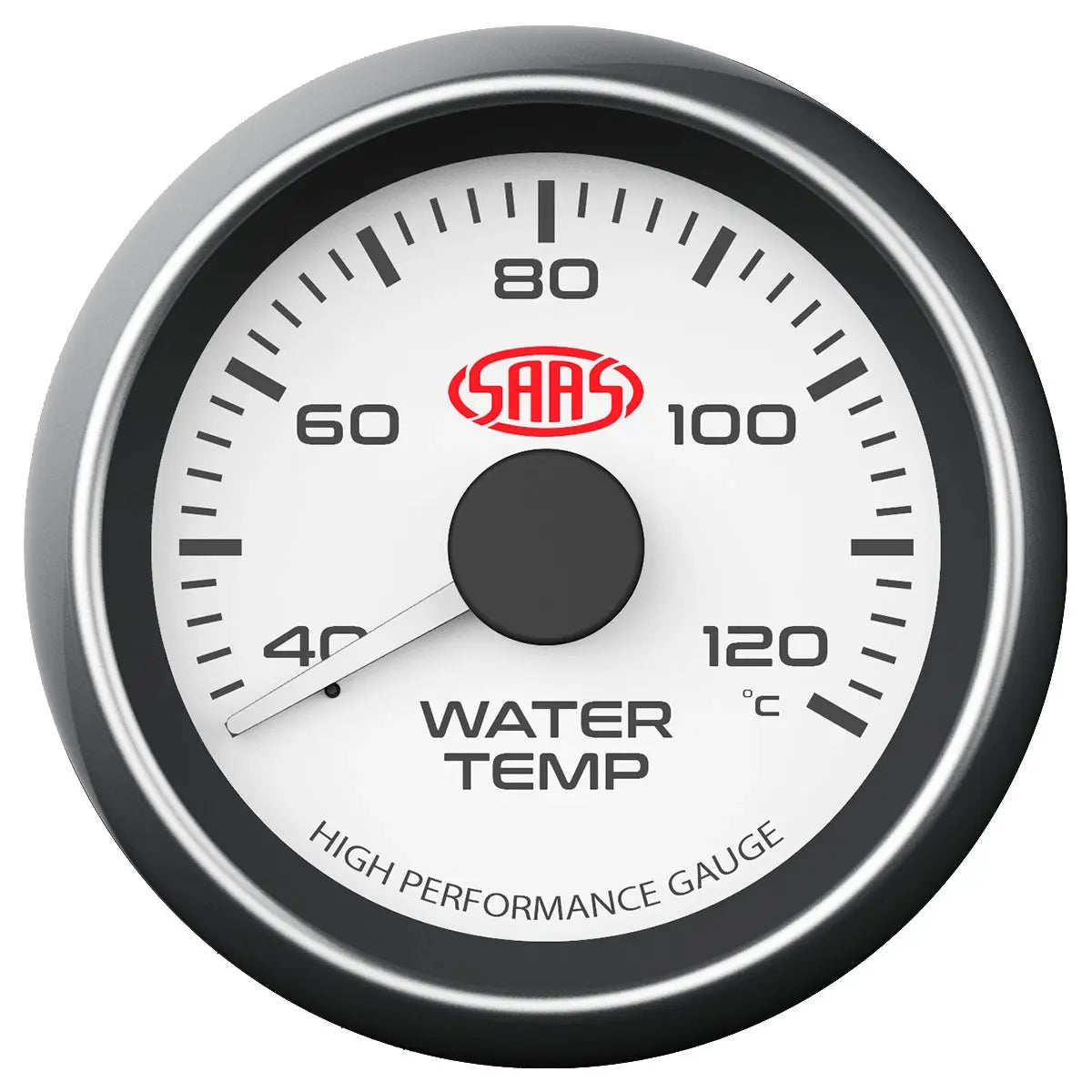

SAAS Water Temp Gauge 40°-120° 52mm Muscle Series I White 12V (part number SG-WT52W) is available from JDM Mods NQ. Review the specifications and fitting notes below to confirm suitability for your setup.

SAAS Water Temp Gauge

SG-WT52W Water Temp Gauge 40°-120° 52mm White Muscle Series

Keep an eye on your vehicle's water temperature and be on the alert for possible overheating or other potential engine issues.

What's Included :

• Water Temp Gauge
• Water Temperature Sender
• SGA-320051 Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
• Wiring Loom
• Mounting Bracket and fittings

Fitment Notes:

The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.

Features

• 40°-120° Temperature Range

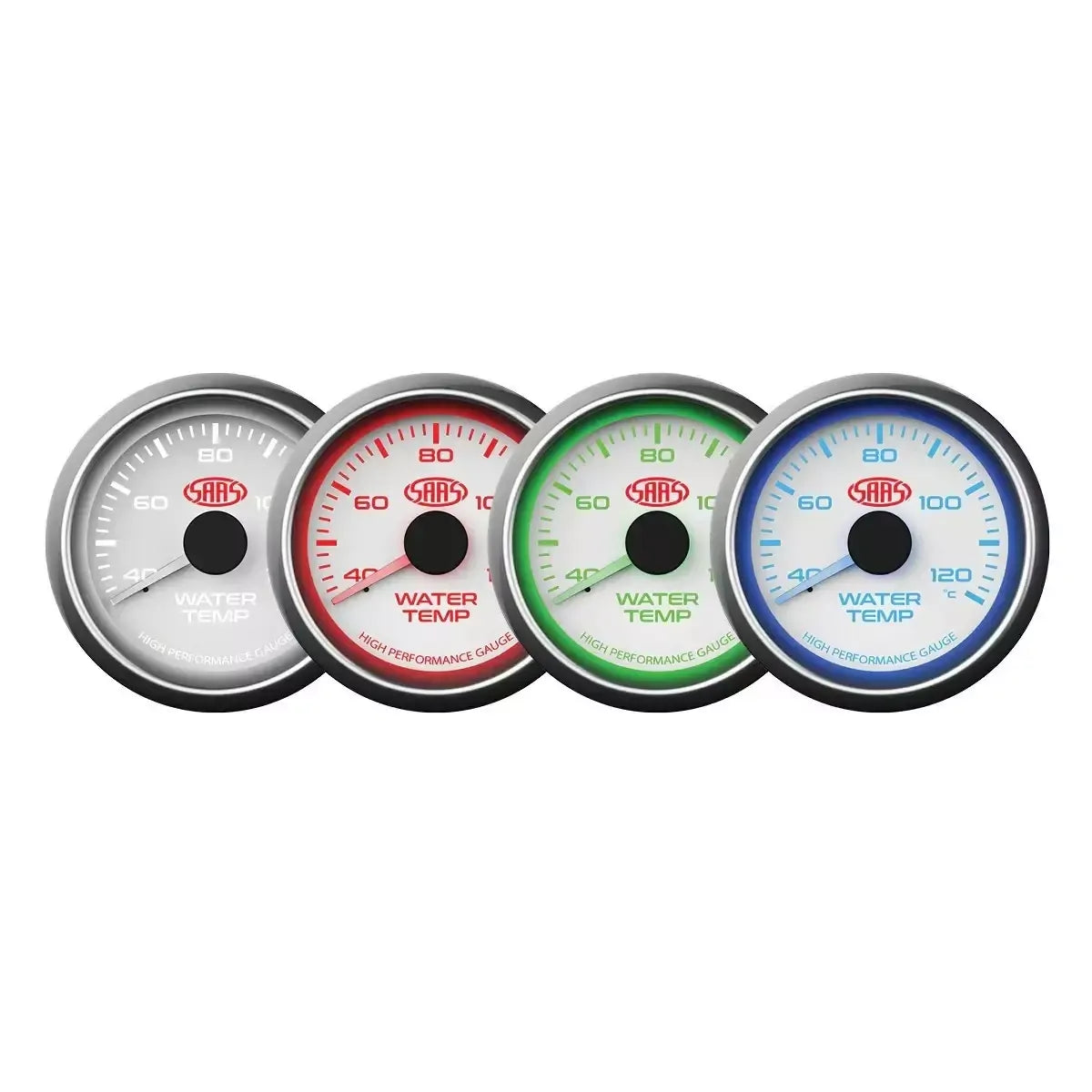

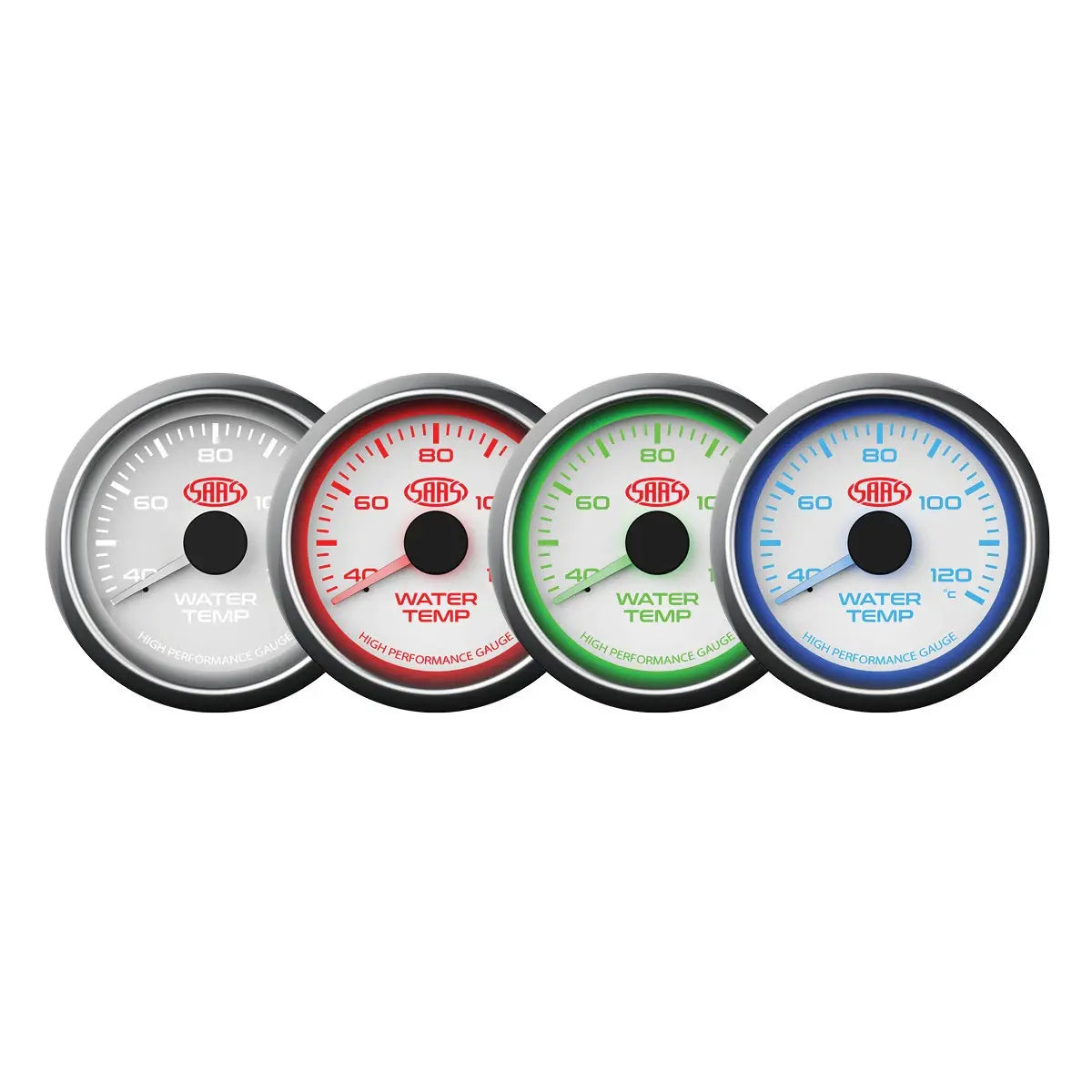

• LED lighting with 4 colour options
• Micro switch for backlight changes
• Replacement spares available (see below)
