SAAS Exhaust Temp Gauge EGT Pyro 0°-900° 52mm Muscle Digital Series 12V

PRODUCT INFORMATION:

SG41240 Exhaust Temp Gauge EGT/Pyro 0°-900° 52mm Muscle Digital Series

NOW FEATURING DIMMABLE BACKLIGHTING

The new for 2021 SAAS Muscle Digital specialty gauges give you digital readings with the added advantage of dimmable backlighting.

No moving components allows for a vibration proof environment making these gauges ideal for 4WD offroad and performance applications.

Monitor your vehicle's exhaust gas temperature and be on the alert for possible overheating or other potential engine issues. Designed to measure high temperatures beyond those of a normal temperature gauge, our Muscle Digital series EGT gauges feature a thermos coupled sensor that can be placed into an appropriate temperature source such as the exhaust manifold.

These gauges become an essential tool in checking for imbalanced air/fuel ratios which can be influenced by restricted air filtration systems, altitude, load, ambient temperature and so on. Modify your driving (when towing for example) before excessive temperature builds.

FEATURES:

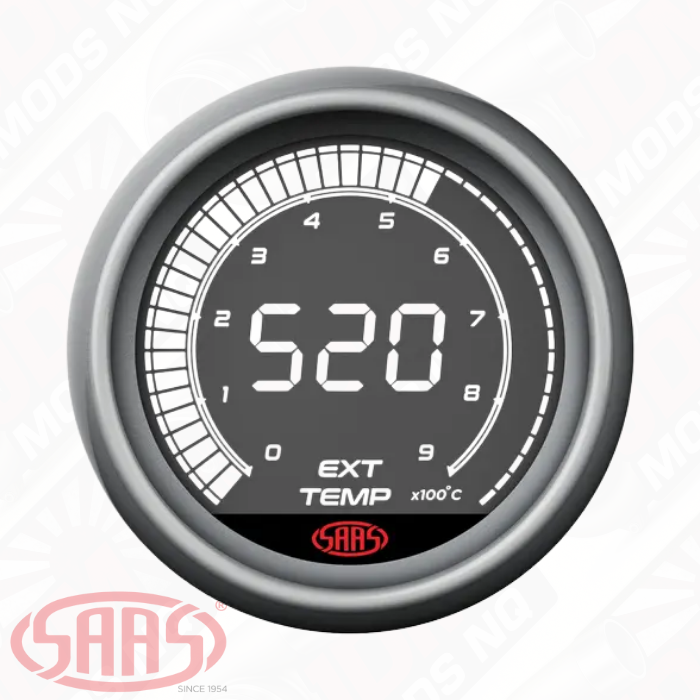

• Easy to read combination LCD Digital readouts

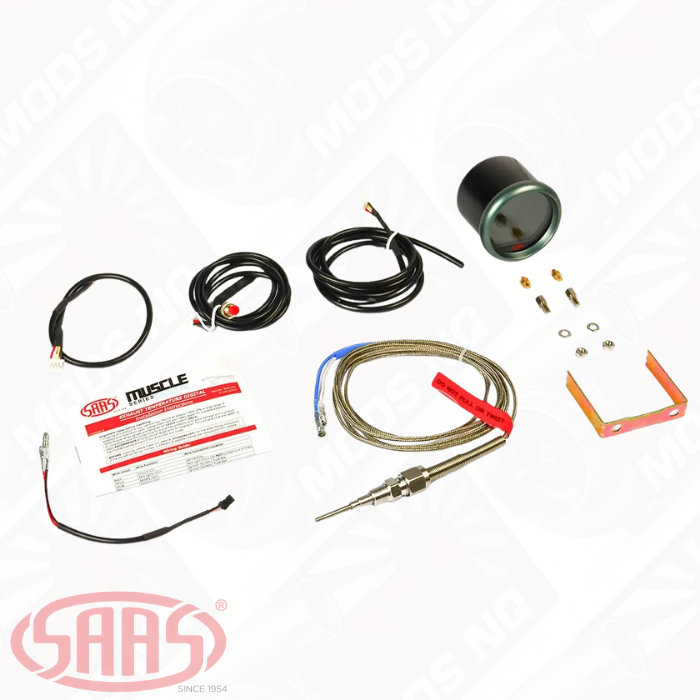

• Includes all mounting hardware, bracket and sender(s)

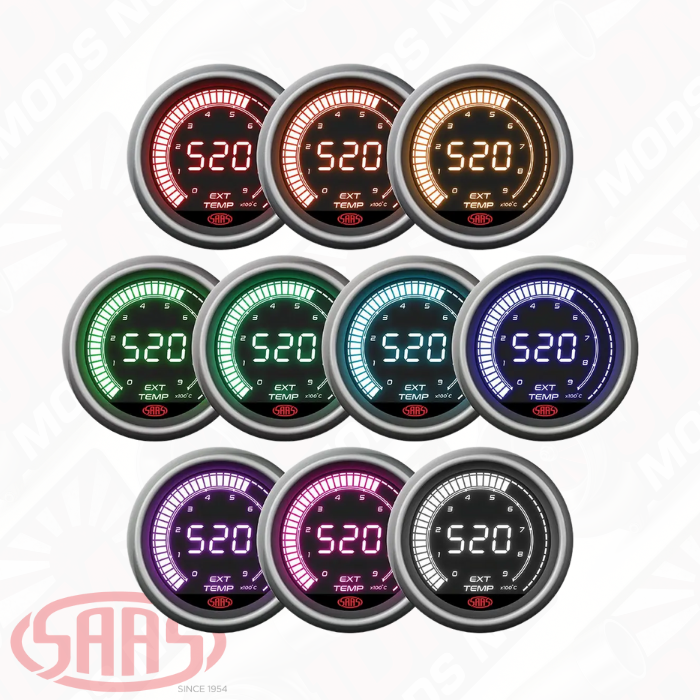

• Choice of 10 different LCD backlighting colours accessed via a remote switch
• 5 levels day / night dimming function
• Measure EGT Pyro Exhaust Temp 0°-900°
• User pre-set warning functions
• Full range of replacement spare parts, senders, wiring looms available

SPARES/SPECS:

SERIES Muscle Digital

BODY OD 52mm / 2"

RANGE 0°-900°

LIGHTING LED Multi-select 10 Colour

TYPE Digital

BRACKET MOUNTING SG21005

SENDER EXH TEMP (HD) SG91003HD

EXH TEMP BUNG SGA1001

EXH TEMP BUNG ADAPTOR SGA-320048 (1/8 NPT -> 1/4 BSP)

EXH TEMP ADAPTOR SG31013

GAUGE LINK CONNECTOR SG9101

PROGRAMMING BUTTON SG4106

SENDER EGT SG91003

SENDER EGT EXTENSION SG91008 1.2m

SENDER THREAD 1/8" NPT

SENDER ADAPTORS List Adaptors

WIRING LOOM SG9100 4 Pin Main

WIRING LOOM CONNECTOR SG9105 100mm 2 pin

DOWNLOAD Fitting Instructions Available
