Radium Top Feed Upgrade Fuel Rails, Subaru Liberty / Outback EZ30 H6 (2000-2003)

The Radium Engineering 20-0764-02 Top Feed Upgrade Fuel Rails are a complete fuel rail solution for the Subaru EZ30 Phase-I flat-six engine, as found in the 2000-2003 Liberty and Outback H6. CNC machined from solid 6061 aluminium, black anodised, and laser etched, these rails support all engine power requirements with a large internal bore — from naturally aspirated builds through to high-flow injector upgrades.

These rails are specifically designed for the EZ30 Phase-I engine — identified by a single exhaust port per bank and the Subaru air-assist fuel injection system. Each rail features three 8AN ORB threaded ports (6 total). To reuse the OEM fuel pressure regulator, use Radium 20-0301.

Fuel Injector Compatibility

OEM Injectors

The Radium fuel rails feature 11mm injector bores — directly compatible with the factory Subaru EZ30 Phase-I air-assist fuel injectors. No modifications required.

Aftermarket Injectors

The Phase-I EZ30 uses a unique OEM air-assist injector that is not replicated in the aftermarket. To use universal aftermarket injectors, the provided Radium injector seats must be installed into the air-assist cylinder heads. Once installed, an aftermarket injector that is 48mm long with 11mm upper O-ring and 14mm lower O-ring must be used.

The following injectors have been verified compatible (others on the market may also work):

• Injector Dynamics ID1050-XDS-48-11-14
• Injector Dynamics ID1300-XDS-48-11-14
• Injector Dynamics ID1750-XDS-48-11-14
• Injector Dynamics ID2600-XDS-48-11-14

Key Features

• CNC machined solid 6061 aluminium — black anodised and laser etched
• Large internal bore — supports all engine power requirements without flow restriction
• 11mm injector bores — OEM air-assist injector compatible, no modification required
• Three 8AN ORB ports per rail — 6 total, maximum plumbing flexibility
• Radium injector seats included — enables universal aftermarket injector fitment in air-assist heads
• Thermal insulating press-in spacers included — 11mm, x4
• OEM FPR compatible — use Radium 20-0301 to retain the factory fuel pressure regulator
• EZ30 Phase-I specific — single exhaust port per bank, air-assist injection system

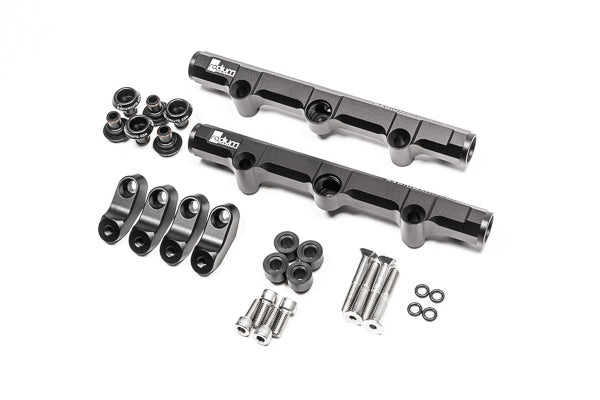

Kit Includes

• Black anodised, laser etched aluminium fuel rails (x2)
• Subaru air-assist injector seats (x6)
• Thermal insulating press-in spacers, 11mm (x4)
• Stainless steel M8x1.25 mounting bolts (x8)

Vehicle Fitment

• 2000-2003 Subaru Liberty H6 — EZ30 Phase-I (single exhaust port per bank)
• 2000-2003 Subaru Outback H6 — EZ30 Phase-I (single exhaust port per bank)

Available Part Numbers

• 20-0764-02 — Top Feed Upgrade Fuel Rails, Subaru Liberty / Outback EZ30 Phase-I H6
• 20-0301 — OEM FPR adapter (sold separately, for retaining factory fuel pressure regulator)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined solid 6061 billet aluminium — precision fit, black anodised
• ✔ Includes injector seats for universal aftermarket injector compatibility
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. EZ30 Phase-I only — single exhaust port per bank. Aftermarket injectors require Radium injector seats (included). Use Radium 20-0301 to retain OEM FPR. Professional installation recommended.
