Radium Top Feed Upgrade Fuel Rails - Subaru Liberty/Outback 04-19 (EZ30/36 H6)

Radium Top Feed Upgrade Fuel Rails — Subaru Liberty / Outback (2004-2019) EZ30 / EZ36 H6

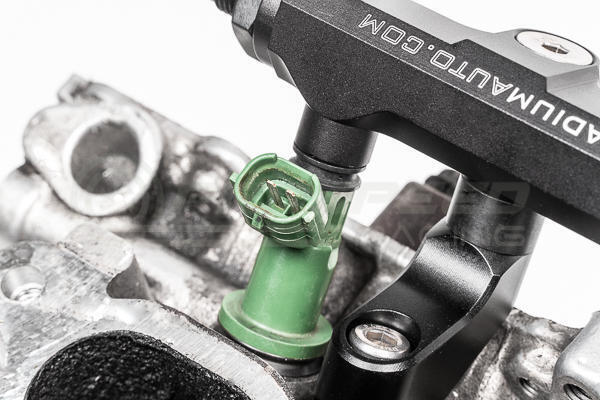

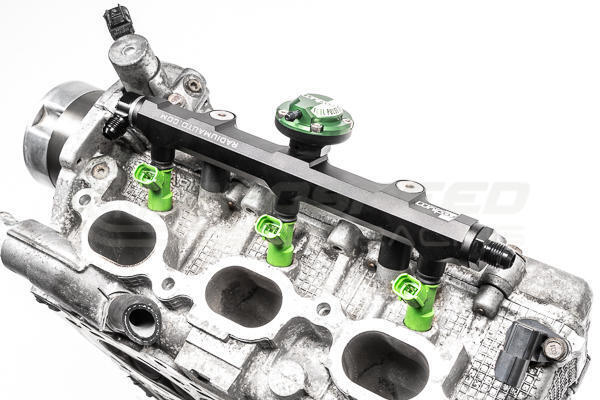

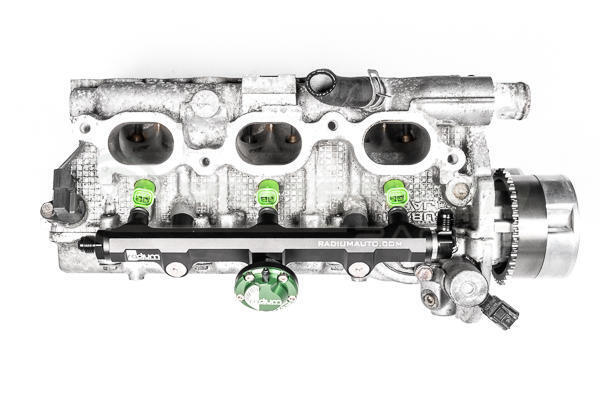

These Radium Engineering H-6 fuel rails are a direct upgrade for the EZ30 (Phase II) and EZ36 flat-six engines found in the Subaru Liberty and Outback from 2004 onwards. CNC-machined from solid 6061 aluminium with a black anodized and laser-etched finish, they feature a large internal bore capable of supporting all necessary engine power requirements — from mild street builds through to high-power forced induction applications.

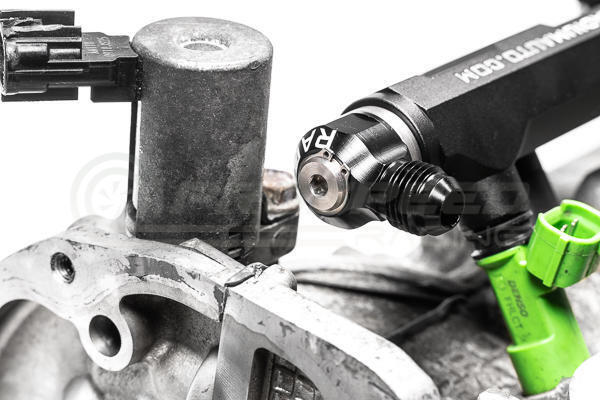

Each fuel rail features three 8AN ORB threaded ports (six total across both rails), providing maximum flexibility for fuel system plumbing. The design provides ample clearance with the nearby AVCS solenoid for a clean, interference-free installation.

Suits:

• Subaru Liberty (2004-2019) — EZ30 (Phase II) and EZ36 H6 engines
• Subaru Outback (2004-2019) — EZ30 (Phase II) and EZ36 H6 engines

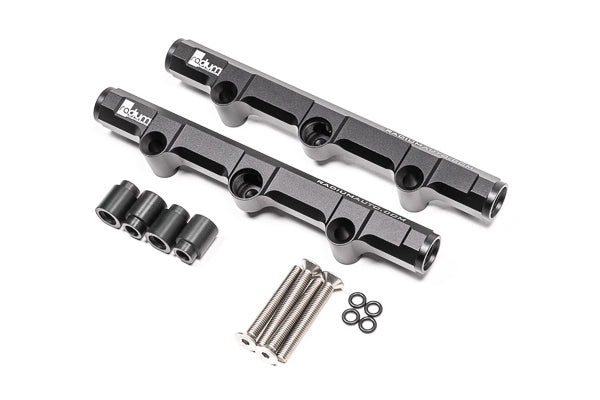

Kit Includes:

• 2x Black anodized laser-etched aluminium fuel rails
• 4x Thermal insulating press-in spacers (11mm)
• 4x Stainless steel M8x1.25 mounting bolts

Specifications:

• Material: Solid 6061 aluminium, CNC-machined
• Finish: Black anodized, laser-etched
• Ports: 3x 8AN ORB per rail (6 total)
• AVCS solenoid clearance: Yes

Available Part Numbers:

• 20-0765-02 — Top Feed Upgrade Fuel Rails, Subaru Liberty / Outback EZ30 / EZ36 H6 (2004-2019)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined solid 6061 aluminium with black anodized and laser-etched finish
• ✅ Trusted by tuners and race teams running high-power EZ30/EZ36 builds worldwide
• ✅ Large internal bore with 3x 8AN ORB ports per rail for maximum fuel system flexibility
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel sensor integration
