Product Description
Radium Fuel Vent Charcoal Canister
Application: Universal – fuel vent systems
Part Number: 20-1828-00 (Universal) | 20-1828-08 (8AN) | 20-1828-12 (12AN)
Upgrade your fuel system with the Radium Fuel Vent Charcoal Canister — a precision-engineered solution for capturing and filtering fuel vapours from vented fuel systems. Utilizing activated charcoal filtration, this canister prevents fuel vapour emissions while maintaining proper tank ventilation, making it the go-to choice for motorsport and high-performance applications that demand both compliance and reliability.
Whether you're building a dedicated track car, a high-power street machine, or a fuel cell-equipped race vehicle, the Radium Charcoal Canister installs virtually anywhere and supports multiple AN port configurations to suit your existing plumbing. The serviceable design keeps long-term running costs low — simply replace the charcoal element when spent and you're back on track.
Compatible with gasoline, E85, and alternative fuels, this canister is a no-compromise solution for any build.
Key Features
- ✅ Activated charcoal filtration captures fuel vapours
- ✅ Prevents fuel vapour emissions for track compliance
- ✅ CNC-machined billet aluminium construction
- ✅ Available in Universal, 8AN, and 12AN port configurations
- ✅ 16AN ORB (1-5/16"-12) interchangeable inlet/outlet ports
- ✅ Dual 4AN ORB drain ports with preinstalled plugs
- ✅ Serviceable design with replaceable charcoal element
- ✅ E85 and all fuel types compatible
- ✅ Anodized finish for corrosion resistance
Available Part Numbers

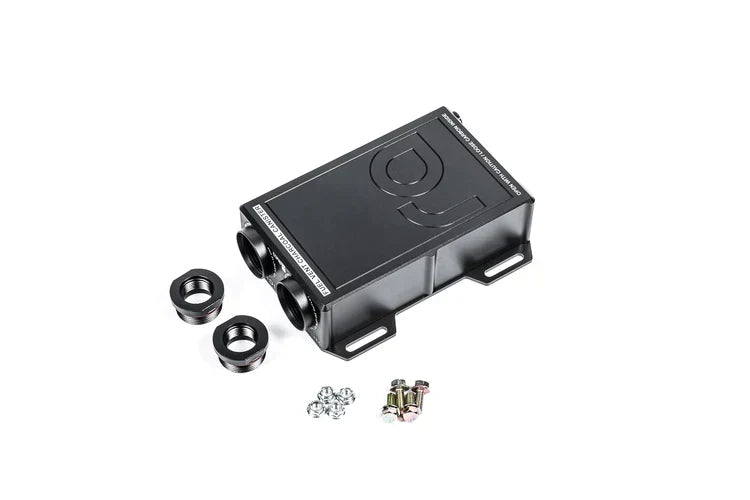

- 20-1828-00 – Fuel Vent Charcoal Canister, Universal

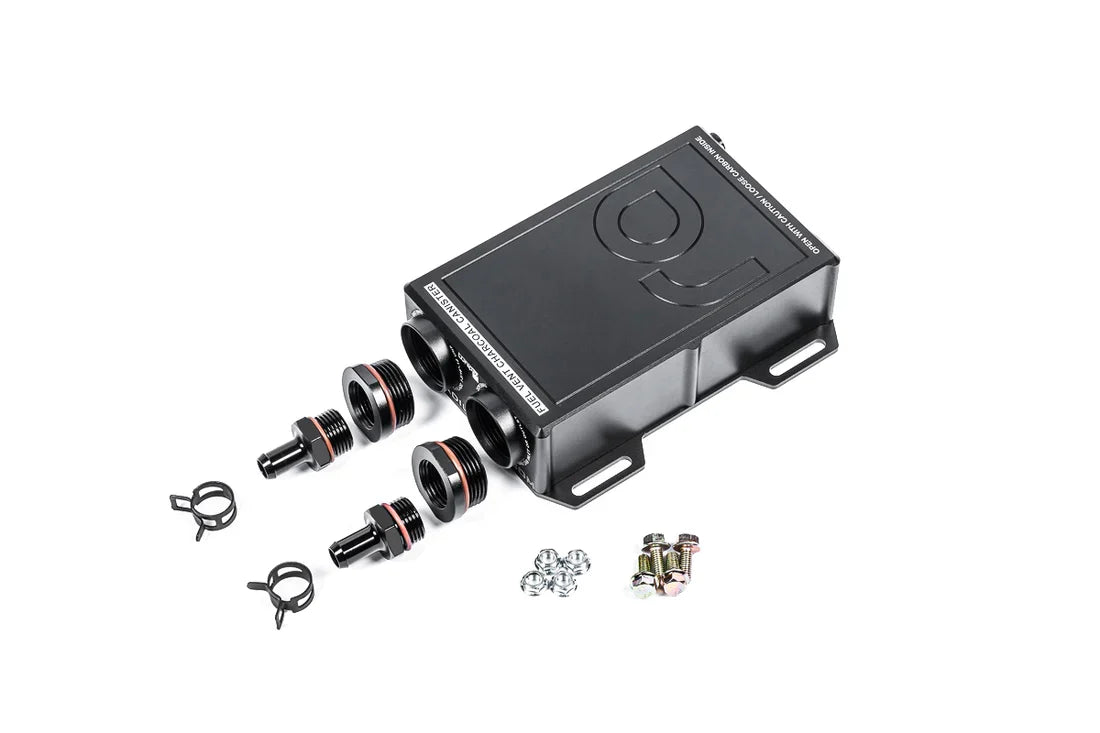

- 20-1828-08 – Fuel Vent Charcoal Canister, 8AN

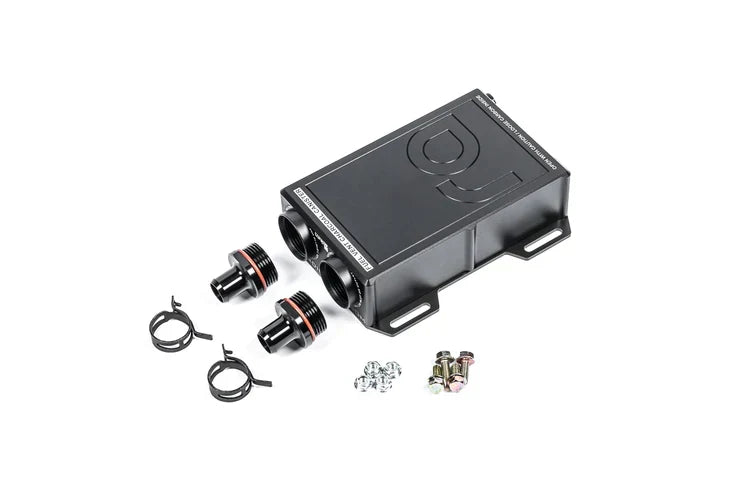

- 20-1828-12 – Fuel Vent Charcoal Canister, 12AN

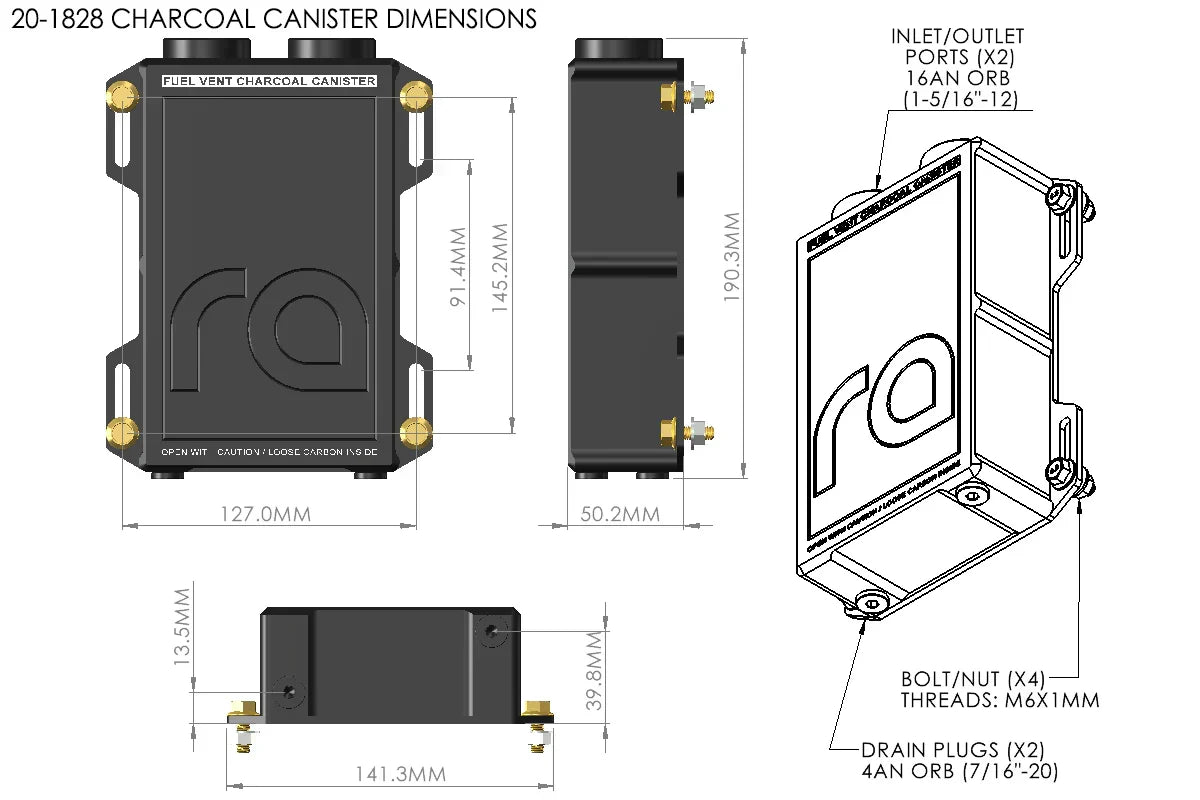

Specifications
| Application | Universal – fuel vent systems |
| Material | CNC-machined 6061 aluminium |
| Finish | Type-II anodized |
| Internal Volume | 44.1 cubic inches (empty) |
| Filtration Media | Vibratory-packed activated carbon, 150 micron strainer & anodized aluminium baffle |
| Inlet / Outlet Ports (x2) | 16AN ORB (1-5/16"-12) female – interchangeable |
| Drain Plugs (x2) | 4AN ORB (7/16"-20) female, preinstalled plugs |
| Mounting Hardware | Bolt/Nut x4, M6x1mm threads |
| Width | 127.0mm |
| Height (body) | 91.4mm |
| Height (incl. ports) | 145.2mm |
| Depth | 50.2mm |
| Total Height (incl. base) | 190.3mm |
| Base Width | 141.3mm |
| Base Height | 39.8mm |
| Base Foot Height | 13.5mm |
| Fuel Compatibility | Gasoline, E85, alternative fuels |

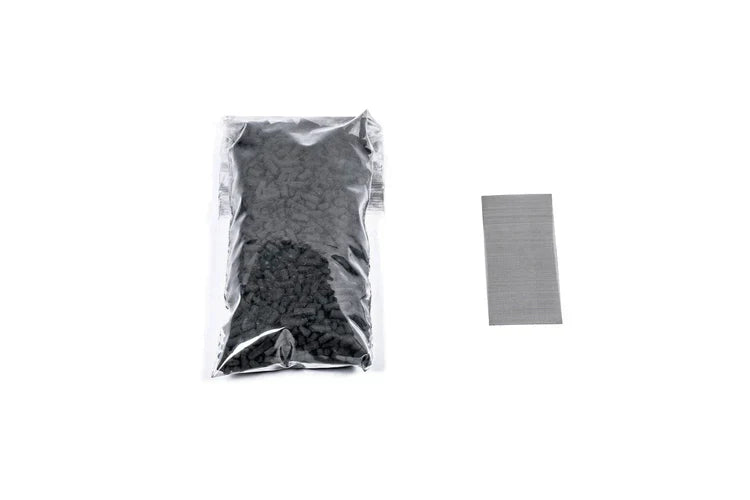

| Serviceable | Yes – replaceable charcoal element (Service Kit: 20-1828-SK) |
| Part Numbers | 20-1828-00 / 20-1828-08 / 20-1828-12 |
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined billet aluminium components built to last
- ✅ Trusted by tuners and race teams running real-world high-power builds
- ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
- ✅ Compatible with E85, pump petrol, and flex fuel sensor integration
Fittings and hoses sold separately. Service kit 20-1828-SK available separately. Lead times may apply — contact us for current stock availability. Fast shipping throughout Australia.
