Radium High Flow Fuel Filter Kit - Nissan Silvia S13, S14, S14/Skyline R32, R33, R34

Radium High Flow Fuel Filter Kit - Nissan Silvia S13 / S14 / S15 / Skyline R32 / R33 / R34

Suits:

• Nissan S13 Silvia (All models / trims / RHD / LHD)
• Nissan S13 180SX (All models / trims / RHD / LHD)
• Nissan S14 Silvia (All models / trims / RHD / LHD)
• Nissan S14 200SX (All models / trims / RHD / LHD)
• Nissan S15 Silvia (All models / trims / RHD / LHD)
• Nissan S15 200SX (All models / trims / RHD / LHD)
• Nissan R32 Skyline (All models / trims / RHD / LHD)
• Nissan R33 Skyline (All models / trims / RHD / LHD)
• Nissan R34 Skyline (All models / trims / RHD / LHD)

The Radium Engineering High Flow Fuel Filter Kit is a direct OEM replacement for the factory Nissan fuel filter, plumbed between the fuel pump and fuel rail. CNC-machined from 6061 aluminium and Type-II anodised for maximum corrosion resistance, the 3-piece body features large 10AN ORB female threaded ports on both removable end caps for high-flow plumbing. Viton O-ring seals ensure compatibility with all fuel types including gasoline, diesel, methanol, ethanol, and E85.

The large 4.2" x 1.75" filter element maximises flow without sacrificing filtration, and holds significantly more contaminants than OEM before becoming a restriction — resulting in a very long service life. Because the Radium filter is less restrictive than the OEM Nissan unit, there is less stress on the fuel pump, lower pre-filter pressures, reduced current draw, lower fuel temperatures, and an increase in overall fuel flow.

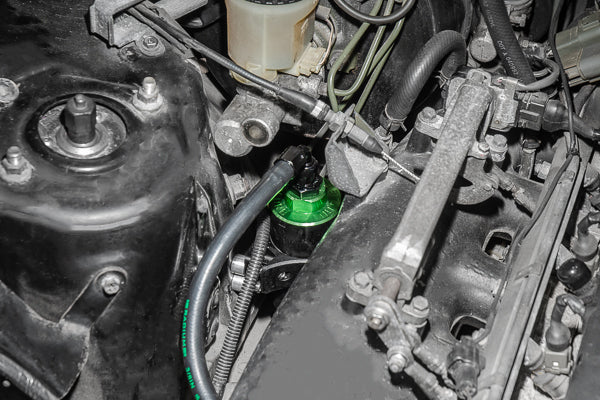

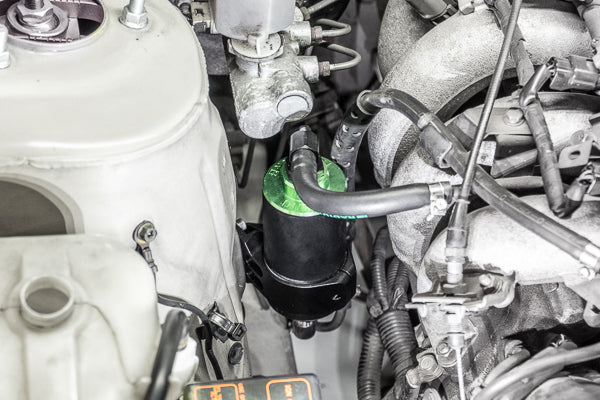

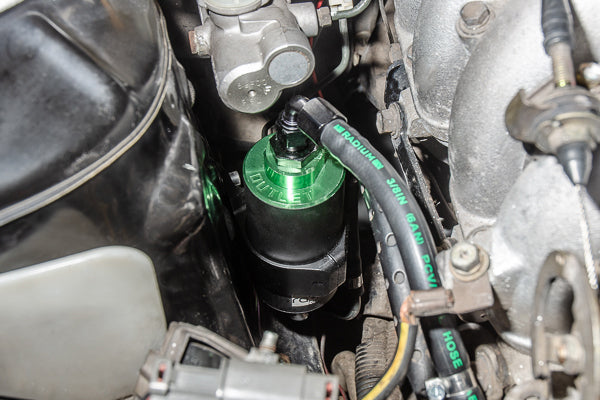

Installation takes less than an hour. No cutting or drilling required.

Filter Selection Guide

20-0585-03 — 10 Micron Stainless Steel Element

• Reusable and cleanable stainless steel mesh element
• 10 micron filtration rating
• Ideal for: High-flow builds, E85, methanol, and applications requiring a serviceable element

20-0585-05 — 6 Micron Microglass Element

• Microglass element with 99.9% capture efficiency at 6 micron
• Exceeds the Bosch fuel filtration specification (nominal 5μm, minimum 82% capture efficiency per ISO/TR 19438)Ideal for: Maximum filtration efficiency, injector protection, and fine particulate capture

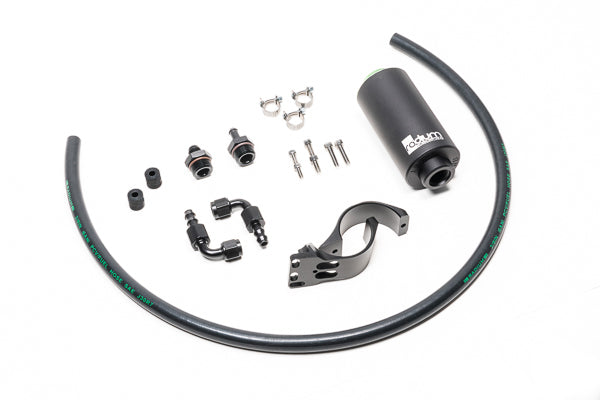

Kit Includes

• Selectable fuel filter element (Stainless or Microglass — see variant selection)
• Anodised aluminium filter housing
• Anodised aluminium 2-piece clamp
• Anodised aluminium fittings
• Large 6AN rubber fuel hose
• Stainless steel hardware

Available Part Numbers

• 20-0585-03 — Radium High Flow Fuel Filter Kit, Nissan S13/S14/S15/R32/R33/R34 (10 Micron Stainless)
• 20-0585-05 — Radium High Flow Fuel Filter Kit, Nissan S13/S14/S15/R32/R33/R34 (6 Micron Microglass)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
• ✅ Compatible with E85, pump petrol, methanol, and flex fuel sensor integration
