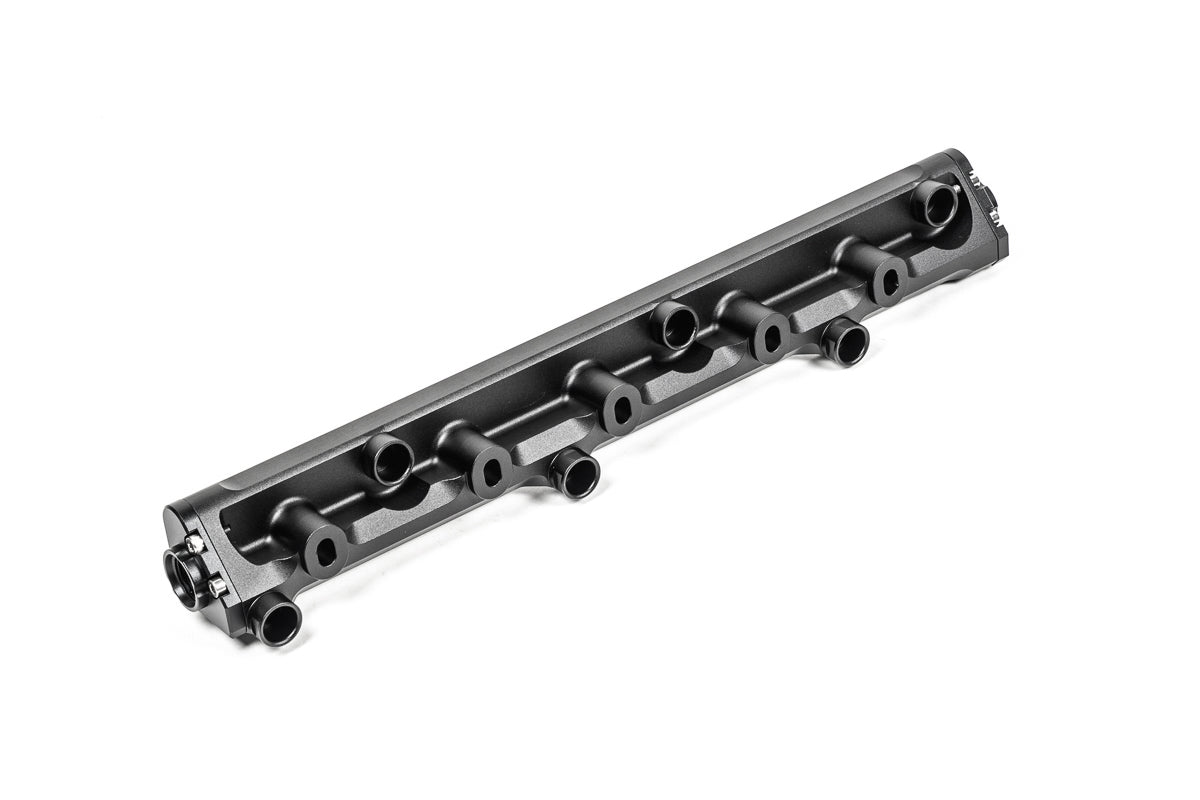

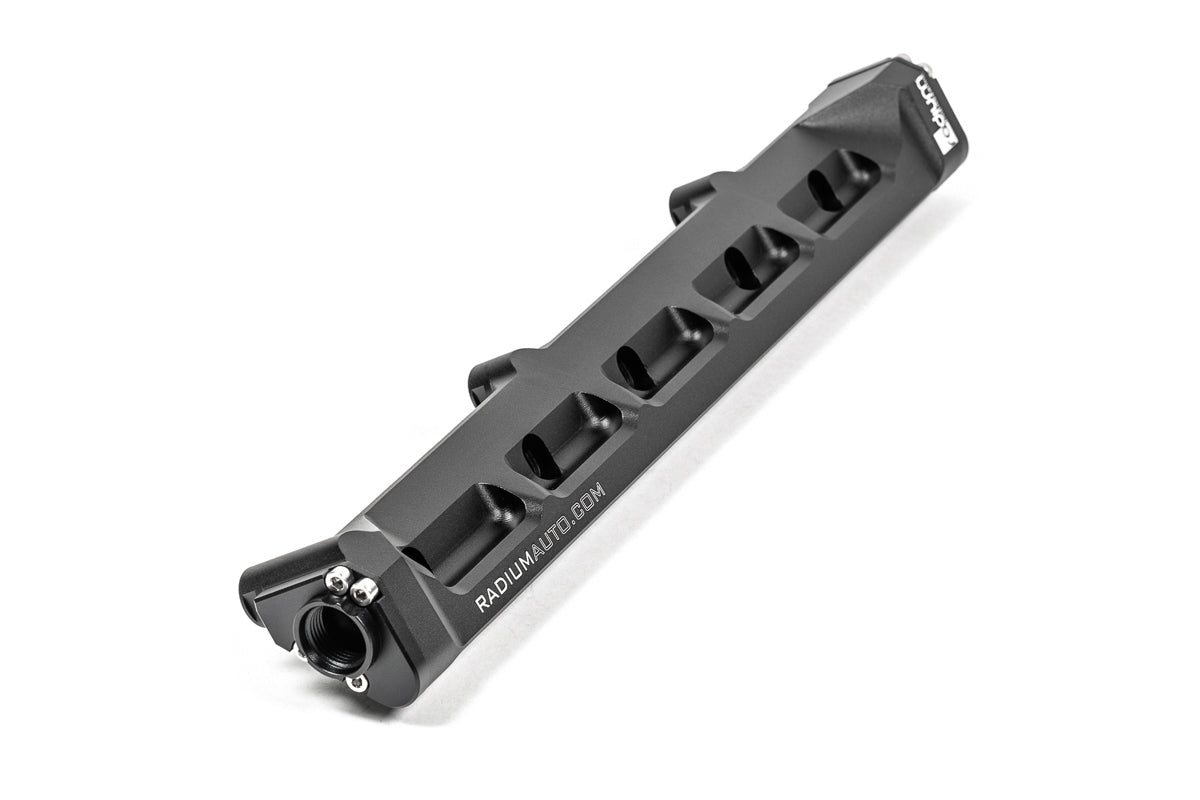

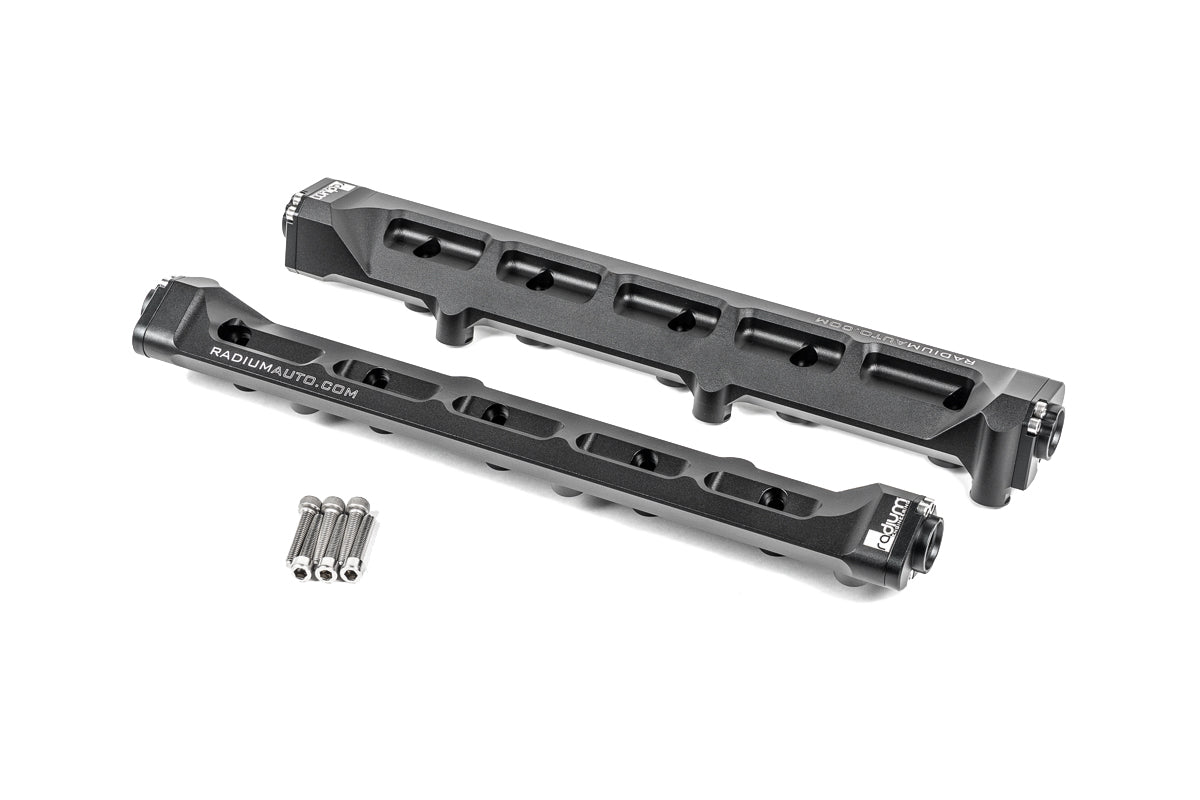

Radium Fuel Rails, VW/Audi/Bentley 6.0L W12

The Radium Engineering 20-0876 Fuel Rails suit the VW/Audi/Bentley 6.0L W12. Each rail is machined with dual 3/8" (6AN) internal bores that connect internally to all injectors — combined, the dual bores are 12% larger than a single 1/2" (8AN) bore. The system supports all necessary engine power requirements and is compatible with all alternative fuels.

The O-ring sealed billet end cap ports are tapped 3/4"-16, compatible with 8AN ORB fittings.

Note: Depending on the injectors fitted, Radium 17-0065 Denso Injector Connector Adapters may be required where connectors interfere with the lower intake manifold. With OEM injectors, 6 are recommended for the inner injectors (cylinders 2, 4, 6, 7, 9, 11).

Key Features

• Dual 6AN internal bores — 12% larger combined flow area than a single 8AN bore
• O-ring sealed end caps — billet end cap ports tapped for 8AN ORB
• Alternative fuel compatible — suits E85, methanol and all pump fuels

Engine Fitment

• VW / Audi / Bentley 6.0L W12
• Applications include Bentley Continental GT / GTC, Flying Spur, Supersports and Audi A8 / A8L W12

Accessories

• 8AN ORB adapter fittings
• 8AN ORB direct mount regulators (DMR-RA)
• 8AN ORB fuel pulse dampers
• Fuel pressure gauge adapters

Appropriate fittings must be selected for your application. Leave enough space around the ports for accessories such as regulators, gauges and pulse dampers — contact Coore for dimensional drawings to check clearance.

Available Part Numbers

• 20-0876 — Fuel Rails, VW/Audi/Bentley 6.0L W12 (this product)
• 17-0065 — Denso Injector Connector Adapter, sold individually (may be required)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Fittings sold separately — select to suit your application. Professional installation recommended.
