Radium Fuel Rail, VW 2.8L 12V VR6

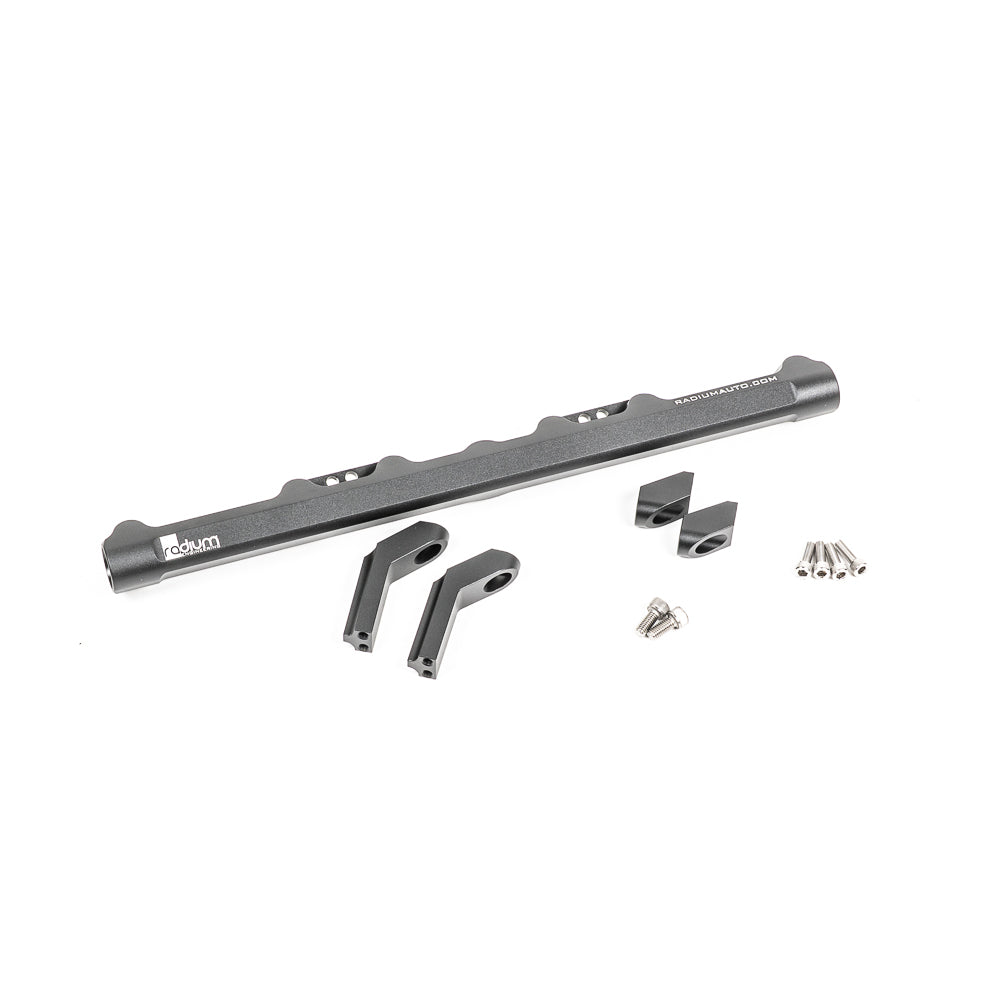

The Radium Engineering 20-0877 Fuel Rail suits the VW 2.8L 12V VR6 and ships with two sets of mounts to suit either lower intake manifold:

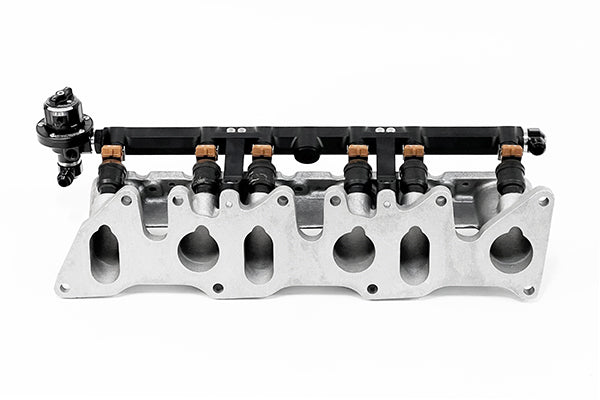

• Early engines (aluminium lower intake manifold) use the long fuel rail mounts.

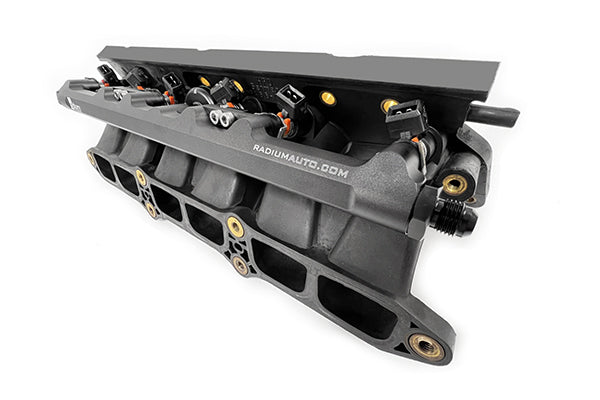

• Late engines (polymer lower intake manifold) use the short fuel rail mounts. On late manifolds, a Radium fuel pulse damper can be fitted in the centre port.

The rail is compatible with the OEM late model upper intake manifold when using OEM-equivalent injectors, and the OEM injector retaining clips can be reused. Fuel rail ports are tapped for 8AN ORB fittings.

Key Features

• Two mount sets included — suits early aluminium and late polymer lower manifolds
• 8AN ORB ports — flexible plumbing for feed and return
• Centre port — accepts a Radium fuel pulse damper (late manifold)

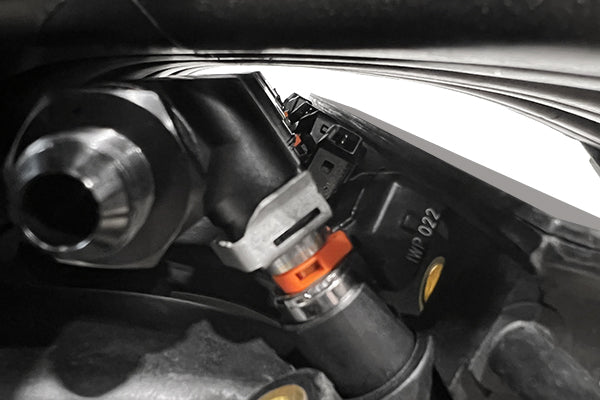

• Reuses OEM clips — OEM injector retaining clips can be reused

Engine Fitment

• VW 2.8L 12V VR6 — early (aluminium) and late (polymer) lower intake manifolds

Accessories

• 8AN ORB adapter fittings
• 8AN ORB direct mount regulators (DMR-RA)
• 8AN ORB fuel pulse dampers
• Fuel pressure gauge adapters

Appropriate fittings must be selected for your application. Leave enough space around the ports for accessories such as regulators, gauges and pulse dampers — contact Coore for dimensional drawings to check clearance.

Available Part Numbers

• 20-0877 — Fuel Rail, VW 2.8L 12V VR6

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Fittings sold separately — select to suit your application. Professional installation recommended.
