Radium Fuel Rail Kit - Ford Shelby GT500 S197 2007-2014

Radium Fuel Rail Kit - Ford Shelby GT500 S197 (2007-2014)

Suits:

• 2007-2014 Ford Shelby GT500 — S197 (5.4L & 5.8L Supercharged)

Compatible with OEM returnless and aftermarket return fuel systems.

The Radium Engineering Fuel Rail Kit is CNC-machined from solid 6061 aluminium, black anodised, and laser etched for a premium surface finish. Manufactured with a large internal bore to support all necessary engine power requirements. Injector bores are 14mm ID — matching the OEM specification — so factory injectors are fully compatible. Compatible with all fuel types including E85 and alcohol blends.

Port Layout

This kit provides a total of eight 3/4-16 (8AN ORB) threaded ports across both rails for plumbing ancillary fuel system devices.

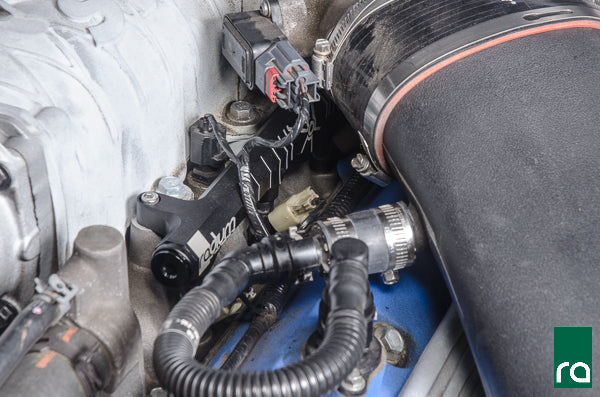

LH Fuel Rail — 3 ports: Features a clearanced design to clear the supercharger intake pipe. The lower centre port is most commonly used for a Radium Engineering fuel pulse damper.

RH Fuel Rail — 5 ports: Includes all ports from the LH rail plus two additional top ports. The top front port accepts the included adapter for the OEM fuel pressure sensor. The top rear port is commonly used for aftermarket fuel pressure monitoring.

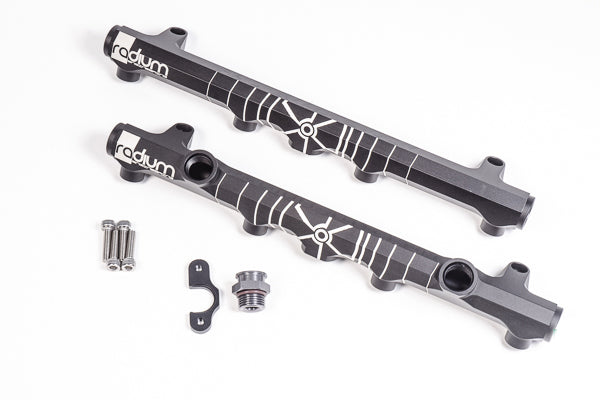

Kit Includes

• Black anodised laser etched aluminium fuel rail — RH (5 ports)
• Black anodised laser etched aluminium fuel rail — LH (3 ports)
• Ford fuel pressure sensor 8AN ORB adapter fitting
• Stainless steel mounting bolts (x4)

Part Number:

• 20-0320 — Radium Fuel Rail Kit (Ford Shelby GT500 S197, 2007-2014)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Bolt-on fitment — no cutting, drilling, or fabrication required
• ✅ Compatible with E85, pump petrol, and flex fuel sensor integration
