Radium Fuel Pump Hanger - Nissan 200SX S14, S15/Skyline R33, R34

Radium Fuel Pump Hanger - Nissan 200SX S14 / S15 / Skyline R33 / R34

Suits:

• Nissan S14 200SX / Silvia (All Trims)
• Nissan S15 200SX / Silvia (All Trims)
• Nissan R33 Skyline (All Trims)
• Nissan R34 Skyline (All Trims)

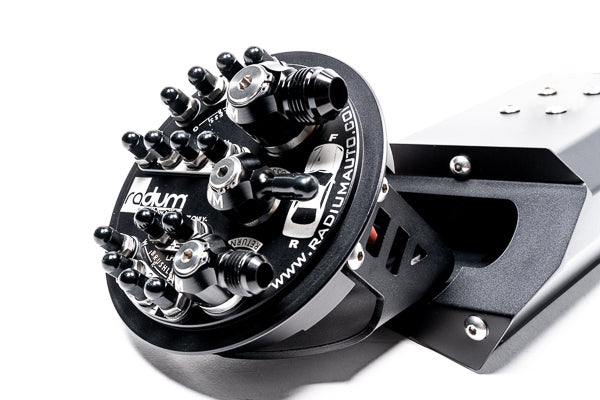

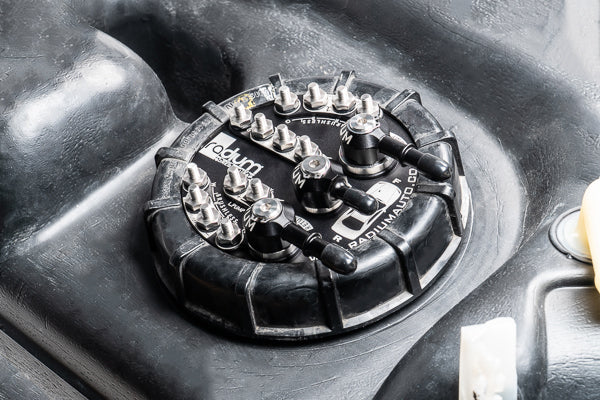

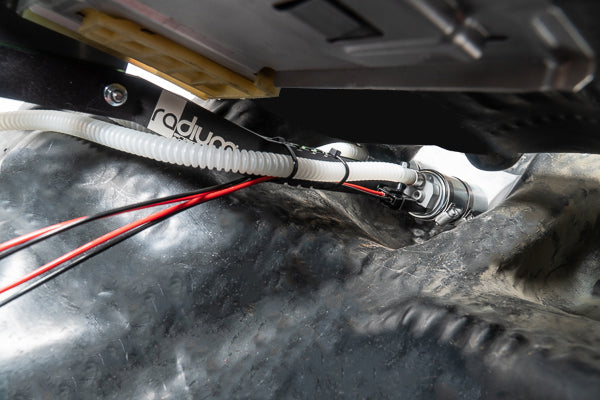

The Radium Engineering Fuel Pump Hanger is a complete drop-in replacement for the factory assembly, engineered to support the fuel demands of high-performance and high-power Nissan builds. Configurable with 1 or 2 aftermarket fuel pumps, it retains full factory functionality including the OEM level sender, low fuel switch, and fuel temperature sensor (OBD-II). Adapter fittings are included for all factory fuel line variations — no extra fuel plumbing required.

Radium Engineering has redesigned the venturi siphon system to eliminate the backpressure restriction caused by high-flow aftermarket pumps, while still effectively scavenging fuel from the passive side of the tank — just like factory.

Fuel Pump Compatibility

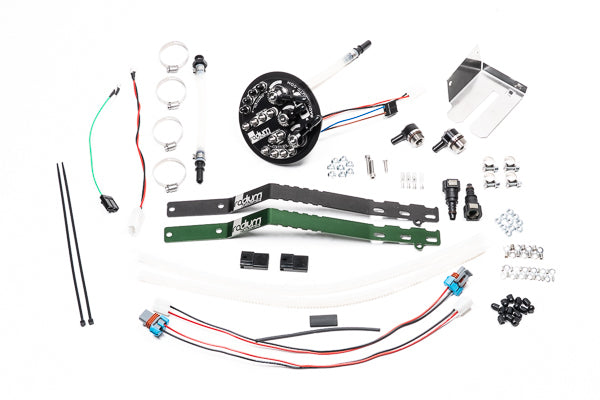

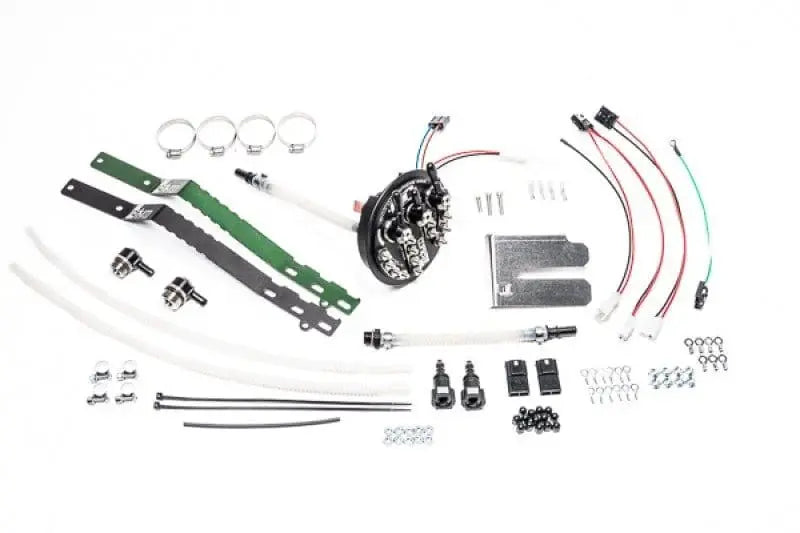

Kits come partially assembled — final assembly is performed during installation. Each kit includes enough parts to run 1 or 2 fuel pumps. Pumps must be supplied separately unless a “Pumps Included” option is selected.

Compatible fuel pumps:

• Walbro GSS342 255lph
• Walbro F90000267 E85
• Walbro F90000274 E85
• Walbro F90000285 E85
• Walbro F90000295 E85
• AEM 50-1200 E85
• Ti Automotive E5LM (brushless)

Note: When purchased with one pump included, additional parts are required to install a second pump.

Fuel Hanger Features

• Drop-in installation — replaces entire factory assembly
• Anodised aluminium construction
• Merged 10AN ORB female pump-out port
• Restriction-free 8AN ORB female return port
• Supports 1 or 2 fuel pumps including brushless
• Integrated venturi jet pump siphon — redesigned for high-flow pumps
• Fluorosilicone duckbill return valve
• High-current stainless steel electrical studs — hermetically sealed, PTFE-insulated in-tank wiring
• Stainless steel hardware and clamps
• Gasoline, methanol, and E85 compliant

Electrical

Custom-designed stainless steel electrical studs handle the high current demands of multi-pump and brushless setups. Connections are hermetically sealed and impervious to standard and exotic fuels. Non-conductive anodised aluminium acorn nuts prevent accidental short circuiting. In-tank wiring is insulated with chemically resistant PTFE.

Notes:

• Single pump installations can re-use OEM fuel pump controller wiring.
• Upgrading OEM wiring is recommended to ensure pumps receive full power.

FHST Add-On — Sold Separately (20-070X)

The Radium FHST (Fuel Hanger Surge Tank) add-on is the ultimate solution for fuel starvation in saddle-bag style OEM tanks common to late-model Nissans. It mounts a fully functional surge tank inside the OEM tank — eliminating fuel slosh and unstable pressure without complex external plumbing. Recommended to be used with a single pump hanger feeding the surge tank, which can then support one or two pumps to feed the engine.

Available Part Numbers

• 20-0630-00 — Radium Fuel Pump Hanger, Nissan S14/S15/R33/R34 (Walbro GSS342 / AEM 50-1200)
• 20-0632-00 — Radium Fuel Pump Hanger, Nissan S14/S15/R33/R34 (Walbro F90000267/274/285/295)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium components built for performance and longevity
• ✅ Trusted by high-power build tuners and race teams worldwide
• ✅ Drop-in fitment — no cutting, drilling, or fabrication required
• ✅ Compatible with E85, pump petrol, methanol, and flex fuel sensor integration
