Radium Fuel Hanger Plumbing Kit with Microglass Filter: Subaru BRZ/Toyota 86

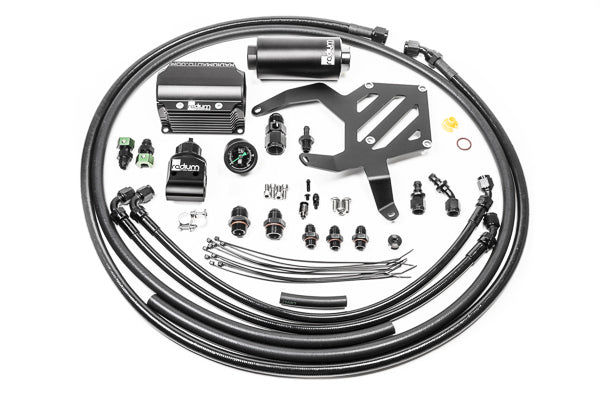

The Radium Engineering 20-0966-05 Fuel Hanger Plumbing Kit converts the OEM returnless fuel system on the Subaru BRZ, Scion FR-S, Toyota GT86 and GR86 to a traditional return system. It includes everything required to connect directly to OEM or aftermarket fuel rails in both single and dual pump configurations, and is designed to pair with the Radium 20-1073 / 20-1074 fuel pump hangers.

An 8AN PTFE hose feeds a Radium fuel filter with a microglass element and integrated check valve, mounted under the vehicle on a chassis-specific bolt-on bracket. An inline fuel pressure gauge and an adjustable Radium RA-Series fuel pressure regulator attach to the filter. 6AN PTFE hoses are included to connect to the port injection fuel rails and the high pressure fuel pump.

Note: The 20-0966-03 version of this kit uses a stainless steel filter element instead.

RA-Series Fuel Pressure Regulator

• Industry-first tool-less pressure adjustment — no jam nut or set screw
• Incremental detents give haptic feedback — approx. 1psi (±0.5psi) per detent
• 360° swivelling vacuum reference port, double O-ring sealed
• 4 interchangeable 10-32 vacuum port fittings: 3/16" barb, 3AN male, push-to-connect, and a vacuum plug for constant (OEM-style) pressure

Key Features

• Return conversion — converts the OEM returnless system to a return-style system
• Single or dual pump — complete plumbing for both configurations
• Microglass filter — with integrated check valve, chassis-specific bracket
• PTFE hose — 8AN feed and 6AN hoses included
• Fuel compatibility — all gasoline types plus methanol, ethanol and E85

Vehicle Fitment

• Subaru BRZ
• Scion FR-S
• Toyota GT86 / 86
• Toyota GR86

Available Part Numbers

• 20-0966-03 — Fuel Hanger Plumbing Kit, FR-S/BRZ/GT86/GR86 — Stainless Filter (sold separately)
• 20-0966-05 — Fuel Hanger Plumbing Kit, FR-S/BRZ/GT86/GR86 — Microglass Filter (this product)

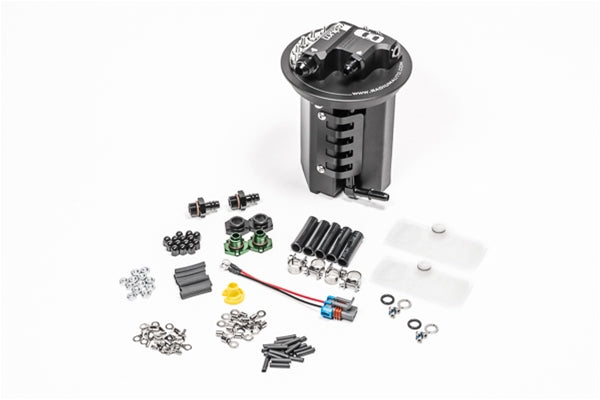

• 20-1073 / 20-1074 — Fuel Pump Hangers, FR-S/BRZ/GT86/GR86 (sold separately)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. For racing / pre-emissions vehicles only. Professional installation recommended.
