Radium Fuel Feed Line Kit w/Microglass Filter - Mitsubishi Evo X

Radium Fuel Feed Line Kit w/Microglass Filter - Mitsubishi Evo X

Complete fuel feed line upgrade kit engineered by Radium Engineering for Mitsubishi Lancer Evolution X. This comprehensive kit replaces the restrictive factory 5/16" (8mm) fuel feed line with a high-flow -8AN PTFE system, eliminating fuel delivery restrictions when using high-flowing aftermarket fuel pumps.

Compatibility

• Mitsubishi Lancer Evolution X (2008-2015)

Key Features

• ✓ Complete fuel feed line upgrade kit
• ✓ -8AN PTFE fuel lines (1/2" inside diameter)
• ✓ Machine-crimped hose ends for reliability
• ✓ Radium high-flow microglass fuel filter included
• ✓ No-drill filter mounting bracket
• ✓ E85 and all fuel types compatible
• ✓ Professional-grade motorsport components
• ✓ All necessary hardware and fittings included

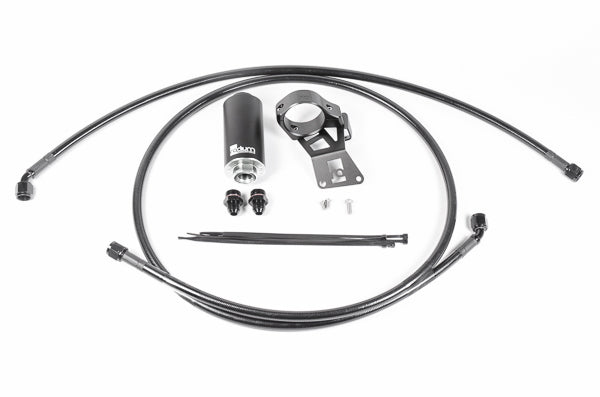

Kit Contents

• Fuel Filter (microglass element)
• EVO X Fuel Filter Mounting Bracket
• 2pc Billet Fuel Filter Clamp
• 8AN Male Adapter Fittings
• 8AN PTFE Fuel Hose (x2)
• Stainless Hardware
• Cable Zip Ties

Technical Specifications

• Application: Mitsubishi Lancer Evolution X (2008-2015)
• Part Number: 20-0946-05
• Line Size: -8AN (1/2" inside diameter)
• Factory Line Size: 5/16" (8mm) inside diameter

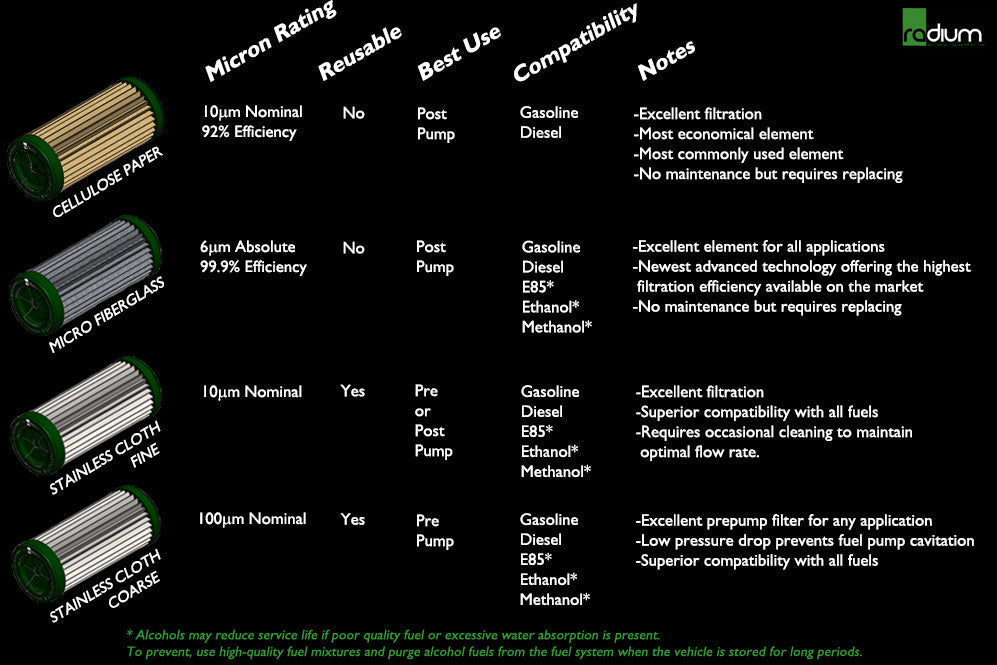

• Filter Type: Microglass element
• Fuel Compatibility: Gasoline, E85, and alternative fuels

Applications

Ideal for Mitsubishi Evo X builds using high-flowing aftermarket fuel pumps requiring increased fuel feed line capacity. Perfect for high-performance street, track, or motorsport applications where eliminating fuel delivery restrictions is critical for optimal engine performance.

Benefits

• Eliminates factory 5/16" fuel line restriction
• -8AN lines support high-flow fuel pump applications
• Machine-crimped ends ensure leak-free reliability
• Integrated high-flow filter provides superior filtration
• No-drill bracket installation simplifies setup
• PTFE lines compatible with all fuel types including E85
• Complete kit eliminates need to source individual components
• Professional motorsport-grade construction

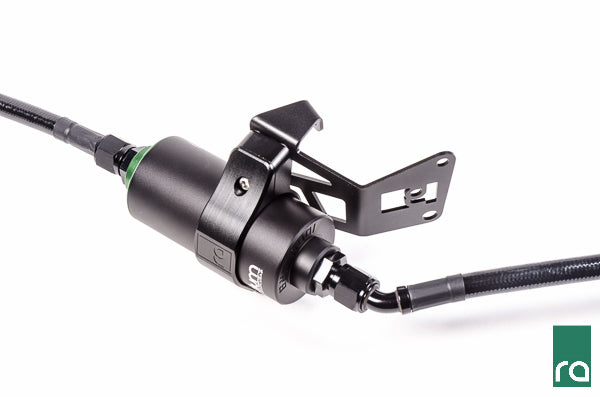

Important Note: Filter mounts under car by steering rack using specially designed bracket with preexisting holes - no drilling required. Hose lengths designed to reach from fuel pump hanger area (underneath rear seat) to fuel rail.
