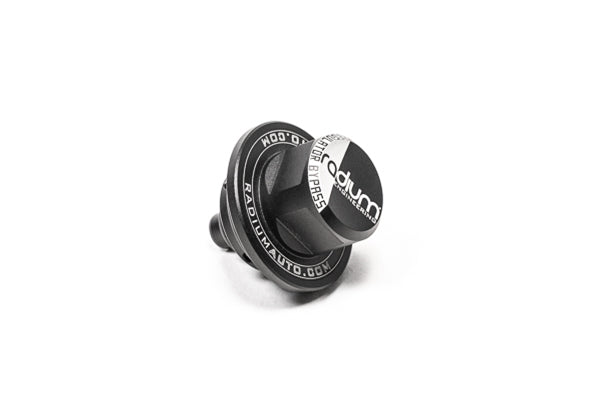

Radium FPR Bypass, Chevrolet Corvette (Mid 2003-2013)

The Radium Engineering 20-0574 FPR Bypass is designed for: Mid-2003–2013 Chevrolet Corvette (C5 / C6).

This FPR bypass is necessary in modified fuel systems running less than 58psi (4bar) of fuel pressure. This is typical if an adjustable and/or vacuum-referenced fuel pressure regulator is installed in the system when the engine vacuum can pull the pressure under 58psi, or if the install requires a lower base pressure.

There are 2 fuel pressure regulators (FPR) found in the Corvette fuel system:

• The primary OEM FPR is found in the LH saddle bag fuel tank. It regulates fuel pressure to a constant 58psi (4bar). NOTE: If this is still installed in the system, this FPR bypass is not required.

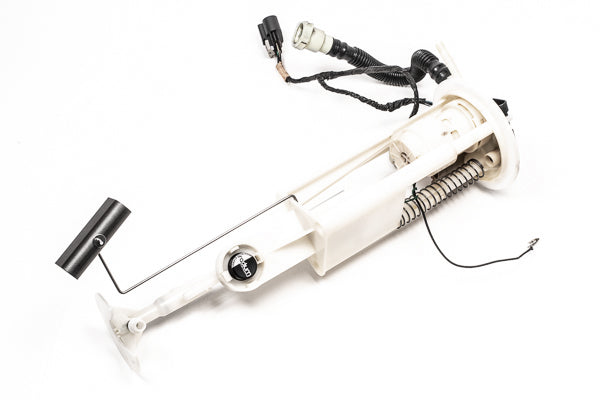

• The secondary FPR is found in the RH saddle bag fuel tank. It receives the regulated fuel pressure from the primary FPR. The return out of the secondary FPR routes fuel into the venturi jet pump.

If the primary (aftermarket) FPR is adjusted lower than 58psi (while using the OEM secondary regulator), the required amount of fuel supply through the venturi jet pump will be compromised. If the venturi jet pump does not receive sufficient flow, the crossover fuel transfer to the fuel pump canister will be interrupted. This can lead to premature fuel starvation at the engine.

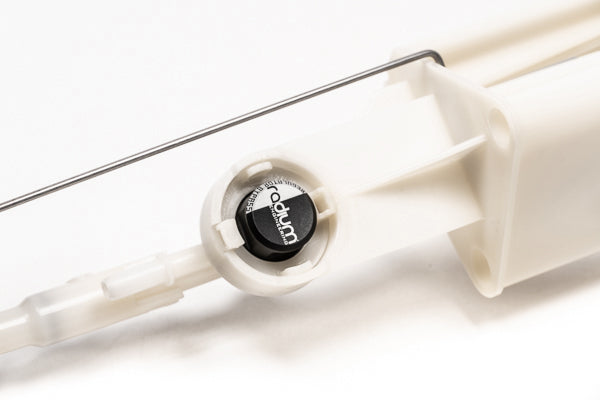

The Radium Engineering FPR bypass replaces the secondary FPR. It permits any fuel pressure to be dialed in for the engine while keeping the venturi jet pump supplied with ample fuel flow for proper operation. It is required anytime an adjustable FPR is installed and used to run pressure less than 58psi.

NOTE: When using this FPR bypass, it is recommended to install an inline check valve somewhere in the fuel feed line.

Vehicle Fitment

• Mid-2003–2013 Chevrolet Corvette (C5 / C6)

Available Part Numbers

• 20-0574 — FPR Bypass, Chevrolet Corvette (Mid 2003-2013) (this product)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Confirm fitment with Coore before ordering. Professional installation recommended.
