Radium Engineering Remote Mount Fuel Filler - 1.5" Vented

Radium Engineering Remote Mount Fuel Filler - 1.5" Vented

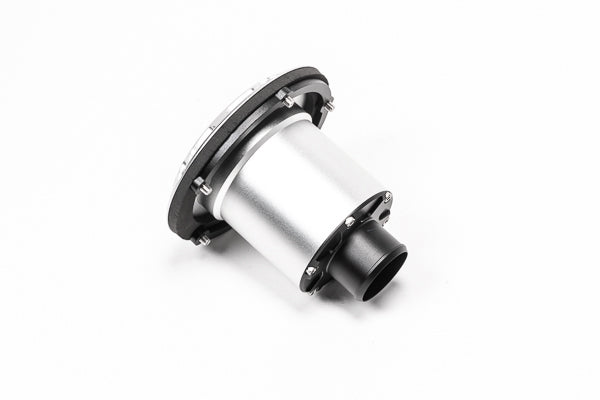

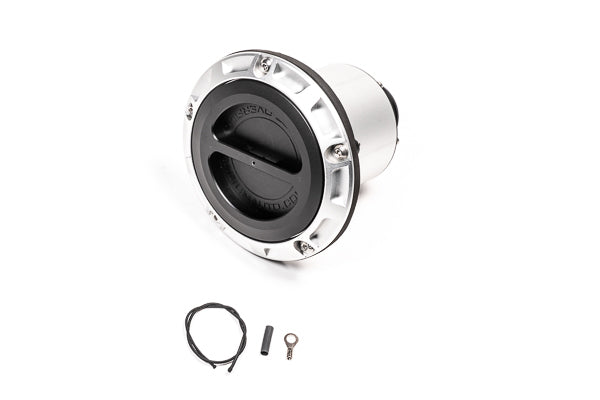

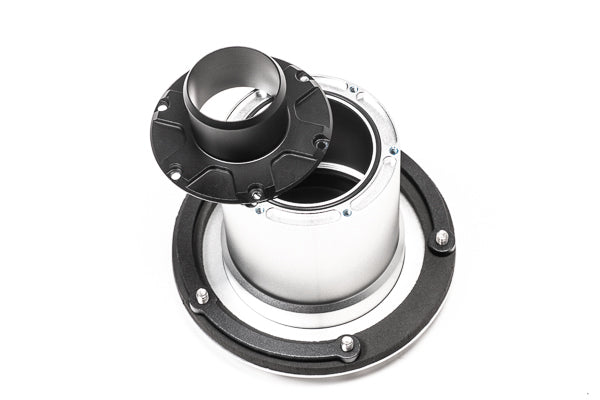

The Radium Engineering Remote Mount Fuel Filler is a precision-engineered fueling solution designed for installations where the filler neck needs to be positioned away from the fuel cell or surge tank. This complete assembly features a 1.5" barbed connection for fuel transfer line attachment and includes a vented cap for proper tank ventilation, making it ideal for motorsport applications requiring flexible filler positioning and quick fueling capabilities.

Part Number

• 20-1005-V - Remote Mount Fuel Filler, 1.5", Vented

Key Features

• Remote Mount Design: Allows filler to be positioned away from fuel cell for optimal chassis packaging
• Vented Cap: Allows proper tank ventilation during fueling and operation
• 1.5" Barbed Connection: Secure hose attachment for fuel transfer line
• CNC-Machined Construction: Precision-machined from 6061-T6 aluminum
• Anodized Finish: Durable, corrosion-resistant black anodized coating
• Quick-Fill Design: Large opening for fast fueling in race conditions
• Complete Assembly: Includes filler neck, vented cap, and mounting hardware
• Motorsport Grade: Built to withstand the demands of competition use

Specifications

• Barb Size: 1.5" (38mm)
• Cap Type: Vented
• Material: 6061-T6 aluminum
• Finish: Black anodized
• Application: Remote mount fuel filler installations

Common Applications

• Remote filler installations on fuel cells and surge tanks
• Custom fuel system builds with chassis clearance constraints
• Race car fueling systems requiring flexible positioning
• Motorsport applications with quick-fill requirements
• High-performance builds with large-diameter fuel lines

Note: Requires 1.5" ID fuel-safe hose (sold separately). Vented cap allows tank breathing. Ensure proper hose clamping and secure mounting to prevent fuel leakage.

Why Radium Engineering?

• ✓ Engineered in the USA: Designed and manufactured in Washington State
• ✓ Motorsport Proven: Trusted by professional race teams worldwide
• ✓ Premium Materials: Aircraft-grade aluminum construction
• ✓ Perfect Fitment: Application-specific design ensures hassle-free installation
• ✓ Performance Focused: Engineered for demanding motorsport applications

Lead Time: Most Radium products ship within 2-3 business days from our Australian warehouse. Some items may require ordering from the USA with extended lead times. Contact us for current stock availability.

Professional installation recommended. Use fuel-safe hose and proper hose clamps. Ensure secure mounting to prevent fuel leakage during operation.
