Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb

Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb

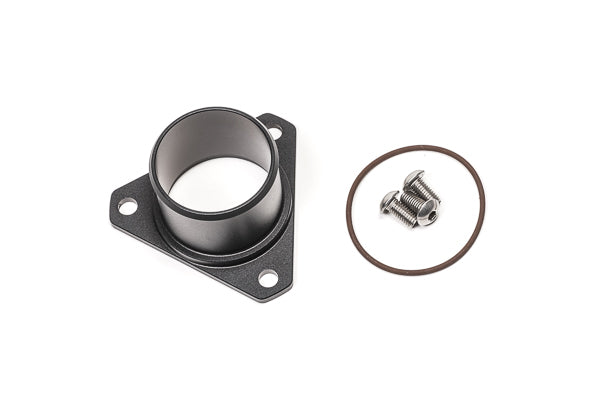

The Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck is a precision-engineered fueling solution designed for remote mounting applications where the fill neck needs to be positioned away from the fuel cell or surge tank. This complete assembly features a 3-bolt mounting flange with a straight 1.5" barbed hose connection, providing a compact and reliable fueling system for motorsport and high-performance applications.

Part Number

• 20-1027 - FCST-X 3-Bolt Remote Mount Fill Neck, Straight, 1.5" Barb

Key Features

• Remote Mount Design: 3-bolt flange allows fill neck to be mounted away from fuel cell
• Straight Configuration: Compact straight design for space-efficient installations
• 1.5" Barbed Connection: Secure hose attachment for fuel transfer line
• CNC-Machined Construction: Precision-machined from 6061-T6 aluminum
• Anodized Finish: Durable, corrosion-resistant black anodized coating
• Complete Assembly: Includes fill neck, barb, and mounting hardware
• Flexible Installation: Allows optimal fill neck positioning for chassis clearance
• Motorsport Grade: Built to withstand the demands of competition use

Specifications

• Mounting: 3-bolt remote mount flange
• Configuration: Straight
• Barb Size: 1.5" (38mm)
• Material: 6061-T6 aluminum
• Finish: Black anodized
• Application: FCST-X surge tanks and fuel cells

Common Applications

• Remote fill neck installations on FCST-X surge tanks
• Custom fuel cell builds with chassis clearance constraints
• Race car fueling systems requiring flexible positioning
• Motorsport applications with space limitations
• High-performance builds with large-diameter fuel lines

Note: Requires 1.5" ID fuel-safe hose (sold separately). Ensure proper hose clamping and secure mounting to prevent fuel leakage.

Why Radium Engineering?

• ✓ Engineered in the USA: Designed and manufactured in Washington State
• ✓ Motorsport Proven: Trusted by professional race teams worldwide
• ✓ Premium Materials: Aircraft-grade aluminum construction
• ✓ Perfect Fitment: Application-specific design ensures hassle-free installation
• ✓ Performance Focused: Engineered for demanding motorsport applications

Lead Time: Most Radium products ship within 2-3 business days from our Australian warehouse. Some items may require ordering from the USA with extended lead times. Contact us for current stock availability.

Professional installation recommended. Use fuel-safe hose and proper hose clamps. Ensure secure mounting to prevent fuel leakage during operation.
