Radium Dual Fluid Lock Catch Can Kit, Toyota Tacoma (2005-2023)

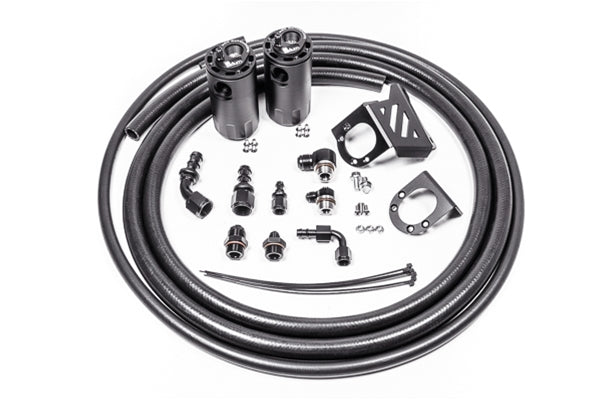

For the ultimate in engine protection, the Radium Engineering 20-0840-FL Dual Fluid Lock Catch Can Kit combines all components of both the PCV and CCV kits for the 2005–2023 Toyota Tacoma into one package.

The PCV can runs inline between the PCV valve and intake manifold, while the CCV can sits inline on the crankcase breather hose. Both mount to threaded bosses on the inner fender. Radium catch cans are pressure sealed, so no inline check valve is required.

Key Features

• Full coverage — PCV and CCV catch cans in one kit
• Inner fender mount — uses existing threaded bosses
• Fluid Lock® design — patented mechanism prevents overfilling
• Pressure sealed — no inline check valve required
• Integrated dipsticks — check fluid levels at a glance

Vehicle Fitment

• 2005–2023 Toyota Tacoma

Fluid Lock

A conventional catch can that isn't emptied regularly will eventually overflow, pouring collected contaminants into the intake system. Radium's patented Fluid Lock® mechanism prevents the reservoir from overfilling and traps collected fluids until the can is emptied. Radium catch cans are pressure sealed, so no additional inline check valve is required.

Collection & Emptying

Collection rates vary from vehicle to vehicle, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. Check the level with the integrated dipstick after 3–4 weeks of driving and repeat as needed. Empty by unscrewing the lower reservoir, or fit the optional Radium Petcock Drain Kit where there is space under the can.

Available Part Numbers

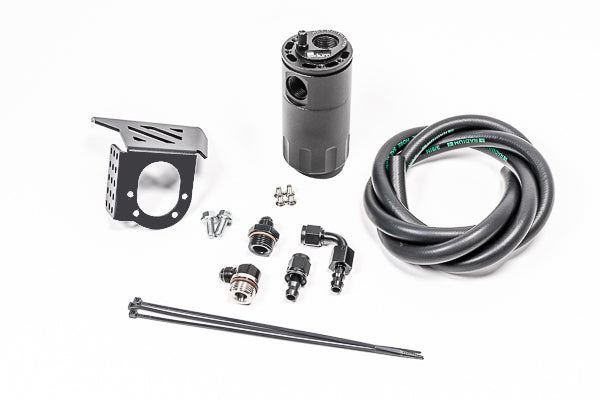

• 20-0838-FL — PCV Fluid Lock Catch Can Kit, Toyota Tacoma 2005–2023

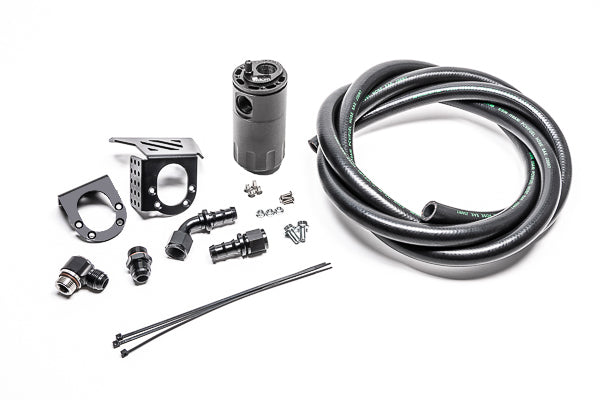

• 20-0839-FL — CCV Fluid Lock Catch Can Kit, Toyota Tacoma 2005–2023
• 20-0840-FL — Dual PCV + CCV Fluid Lock Catch Can Kit, Toyota Tacoma 2005–2023

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Professional installation recommended.
