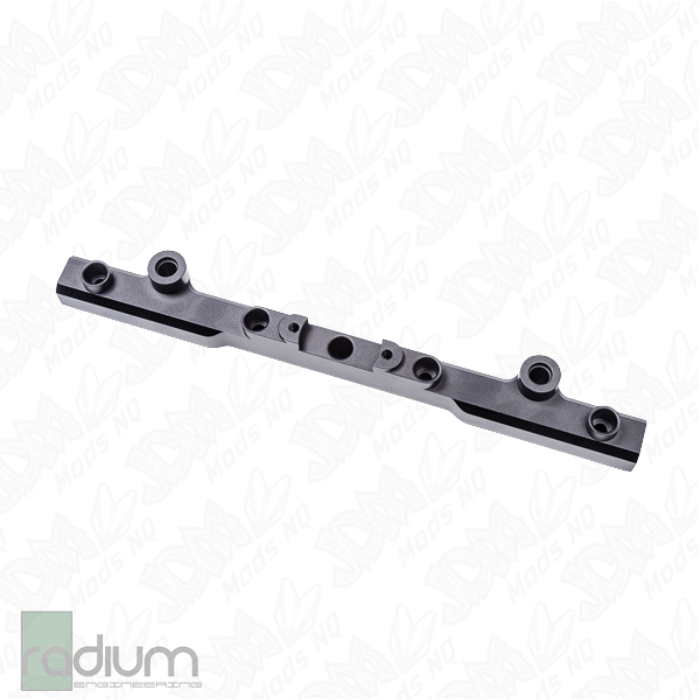

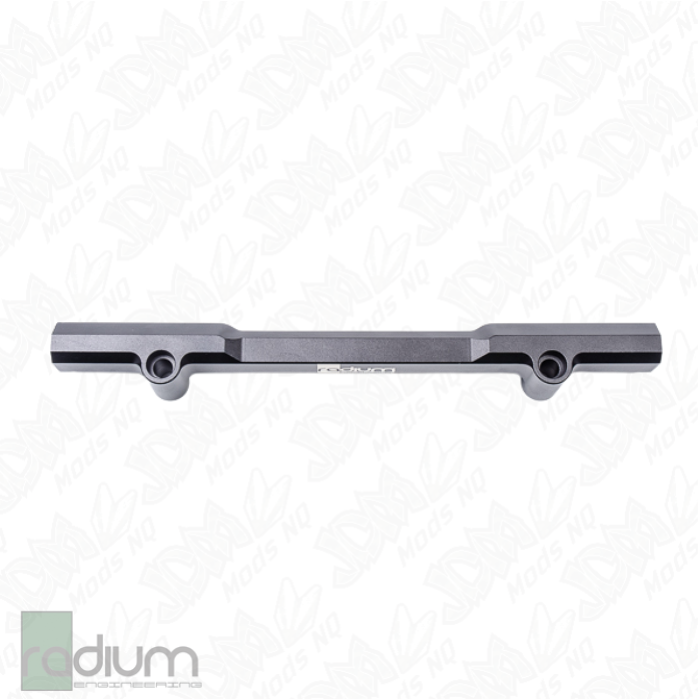

Radium Aftermarket Configuration Fuel Rail Kit - Lotus (2ZZ-GE)

This high volume fuel rail works on all 2ZZ-GE engines. Both ends of the rail are tapped to 8AN ORB female threads. These ports use positive O-ring seals instead of tapered pipe threads which commonly damage aluminium threads and lead to fuel leaks. The centre port accommodates the 2ZZ-GE fuel pulse damper (not included) from the OEM fuel rail. This helps alleviate all high frequency pressure fluctuations.

The fuel rail was designed to clear the intercooler mounting boss (Exige-S/2-Eleven only) as best as possible without sacrificing fuel flow. Some grinding may still be necessary.

FEATURES:

• Billet aluminium construction
• Anodized surface finish for corrosion resistance
• Stealth laser etched logos pre anodizing
• End Ports: 3/4-16 Female Thread (-8AN)
• Works with factory and aftermarket injectors
• Easily converted to a pressure regulated return system
• Fits under the factory fuel rail cover
• Supercharged Lotus intercooler boss remains functional

CONFIGURATIONS

20-0012-01 FUEL RAIL, TOYOTA 2ZZ-GE
This option includes the fuel rail and mounting hardware. The OEM fuel pulse damper bracket and associated screws are included as well. No fittings are included as shown below.
