Radium 27mm Dry Break AN Couplers

Radium 27mm Dry Break AN Couplers — 6AN / 8AN

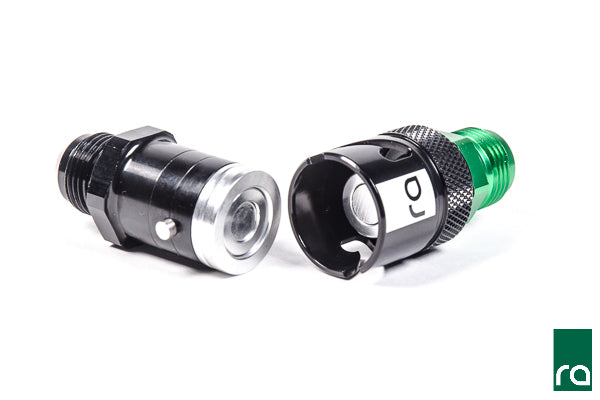

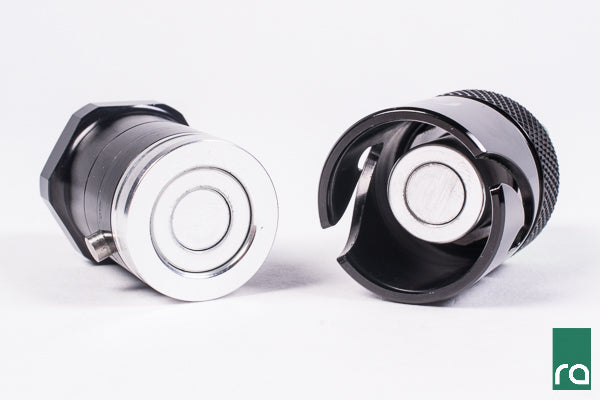

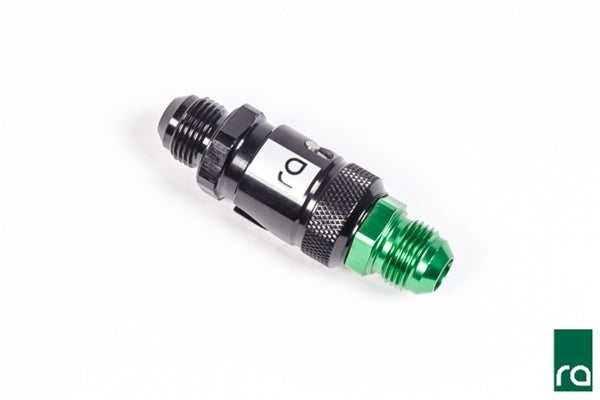

Radium dry break couplers allow two hoses to be separated with a leak-free disengagement while retaining pressure. Using a bayonet-style lock with a knurled machined surface, they will not leak when disconnected and will not introduce air upon reconnection — simply push and twist to engage or disengage. Designed for fuel and oil applications in 6AN and 8AN flare configurations.

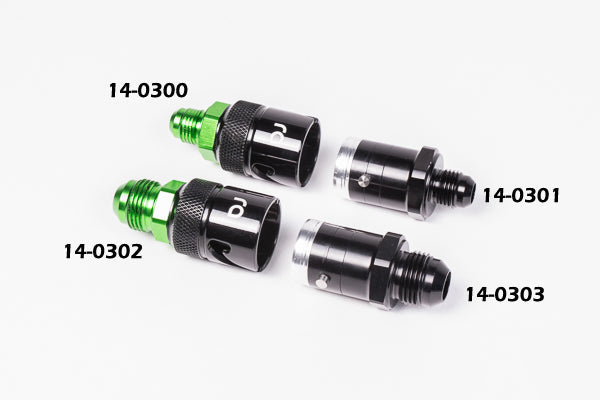

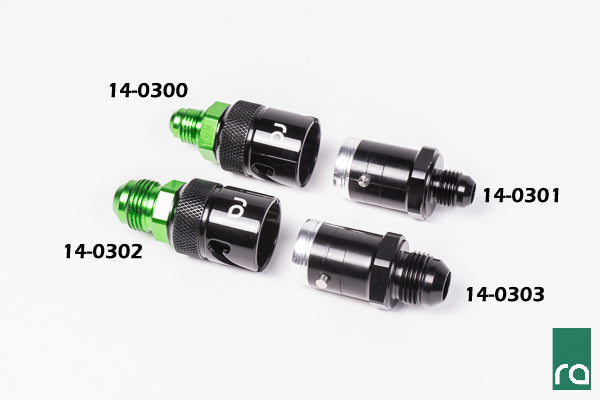

Available as individual inner or outer couplers, or as a complete set (inner + outer). The 6AN and 8AN fittings are interchangeable, allowing step-up or step-down hose size configurations. Successfully tested at 150 PSI engaged and disengaged.

Important Notes:

• Not compatible with methanol fuel.
• Fittings flow equally in both directions and can be installed either way.
• The higher the operating pressure, the more difficult it becomes to connect and disconnect.
• Due to the dry break design, there will be some inherent flow restriction (pressure drop).
• A small amount of fluid drop may occur when engaging and disengaging.
• Do not disconnect fittings while pumps are running.

Technical Data:

• Overall length: 6AN kit = 82mm, 8AN kit = 87mm
• Weight: 6AN kit = 62g, 8AN kit = 69g
• Average pressure drop across coupler: 1-2 PSI
• Flow loss: 2% at 800 LPH
• Tested at: 150 PSI (engaged and disengaged)

Available Part Numbers:

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances

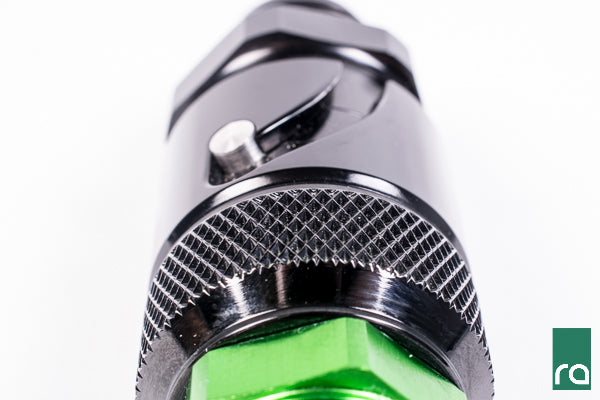

• ✅ CNC-machined anodized aluminium with knurled bayonet lock for secure, tool-free connection
• ✅ Trusted by tuners and race teams running high-power fuel and oil system builds worldwide
• ✅ Leak-free disengagement at 150 PSI — no air introduction upon reconnection
• ✅ 6AN and 8AN interchangeable for step-up/step-down hose size configurations
