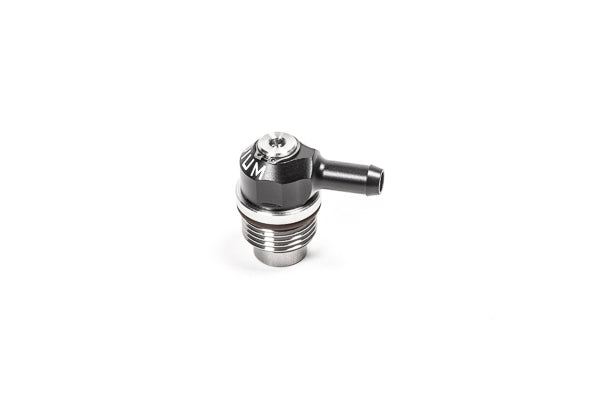

Radium 20-1000-1085-PCV Swivel Banjo PCV Valve, 10AN ORB to 8.5mm Barb

The Radium Engineering 20-1000-1085-PCV Swivel Banjo PCV Valve combines a Radium PCV valve with a low-profile 360° swivel banjo — 10AN ORB inlet to 8.5mm Barb outlet.

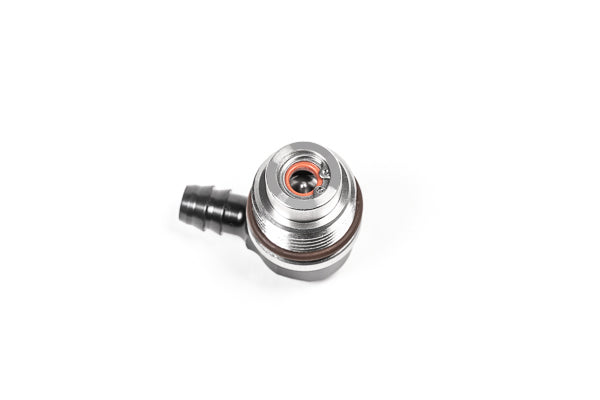

Like an OEM PCV valve, the internal plunger dynamically meters crankcase vent airflow based on engine load. A proper PCV valve prevents the vacuum leak a check valve would create at low loads, closes during an intake backfire so combustible vapours cannot ignite in the crankcase, and closes under boost on turbocharged and supercharged engines to stop intake pressure entering the crankcase.

Key Features

• Dynamic metering — plunger meters vent airflow to engine load
• Boost and backfire protection — closes under positive pressure
• 360° swivel banjo — low-profile 90° outlet that rotates after installation
• Construction — stainless steel ORB, anodised aluminium quick connect, FKM/silicone O-rings
• Ready to fit — supplied fully assembled with a 10AN ORB FKM O-ring pre-installed

Specifications

Installation Notes

• Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before installation to prevent damage.

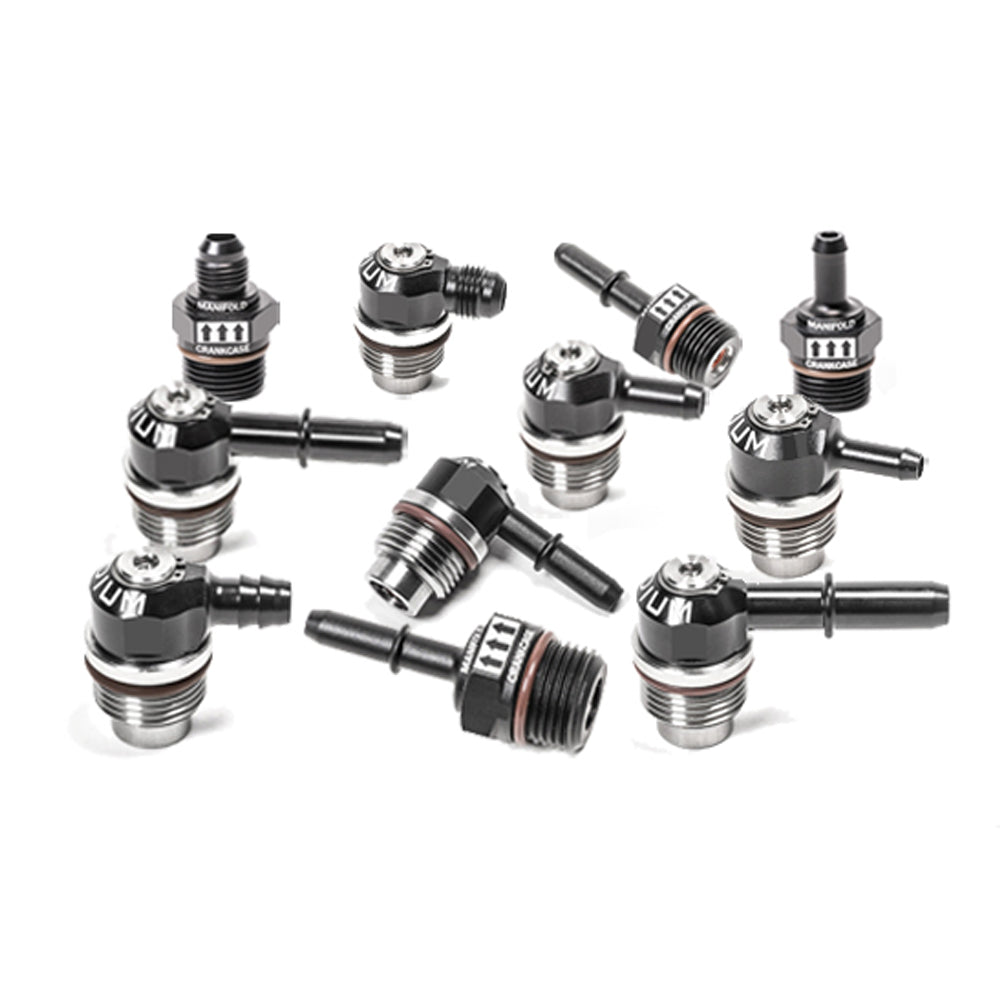

Related PCV Valves

• 20-0530 PCV Valve, 10AN ORB to 3/8" (9.5mm) Barb
• 20-0561 PCV Valve, 10AN ORB to 6AN Male
• 20-0683 PCV Valve, 10AN ORB to 5/16" SAE Quick Connect Male
• 20-0688 PCV Valve, 10AN ORB to 10mm SAE Quick Connect Male
• 20-1000-1006-PCV Swivel Banjo PCV Valve, 10AN ORB to 6AN Male
• 20-1000-1010B-PCV Swivel Banjo PCV Valve, 10AN ORB to 10mm Barb
• 20-1000-1010S-PCV Swivel Banjo PCV Valve, 10AN ORB to 10mm SAE Quick Connect Male
• 20-1000-10313-PCV Swivel Banjo PCV Valve, 10AN ORB to 5/16" SAE Quick Connect Male
• 20-1000-10375-PCV Swivel Banjo PCV Valve, 10AN ORB to 3/8" SAE Quick Connect Male
• 20-1000-1065-PCV Swivel Banjo PCV Valve, 10AN ORB to 6.5mm Barb

See the full range: Radium PCV Valves

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined, precision fit — fuel, oil and coolant safe
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Sold individually.
