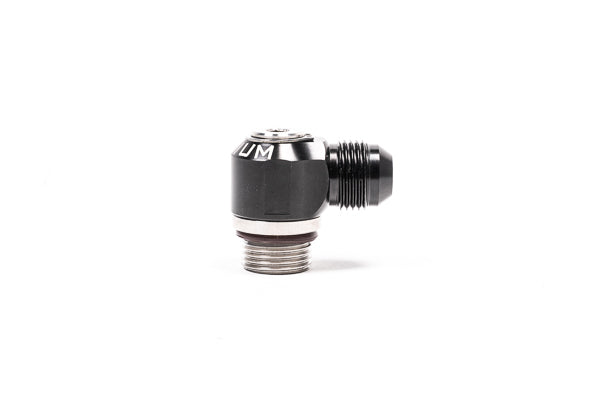

Radium 20-1000-0808 Low Profile Swivel Banjo Fitting, 8AN ORB to 8AN Male

The Radium Engineering 20-1000-0808 Low Profile Swivel Banjo Fitting has a 8AN ORB inlet and a 8AN Male outlet, giving a 90-degree, low-profile connection.

It rotates a full 360 degrees — even after installation — making it an excellent option for 90-degree connections in tight engine bays where clearance and hose routing are critical. Suitable for high pressure fuel and oil systems (do not exceed 400 psi) and safe for all fuel types, oil and engine coolant.

Key Features

• 360° swivel — rotates freely even after installation
• Low profile — 1.019in (25.9mm) installed height
• High pressure rated — do not exceed 400 psi
• Media — all fuel types (incl. E85), oil and engine coolant

Specifications

Installation Notes

• Lubricate the ORB O-ring with O-ring lube, petroleum jelly or oil before installation to prevent damage.
• AN flare connections should be installed dry and clean. Hand thread until fully engaged, then tighten 1/4 to 1/2 turn after bottoming out by hand.

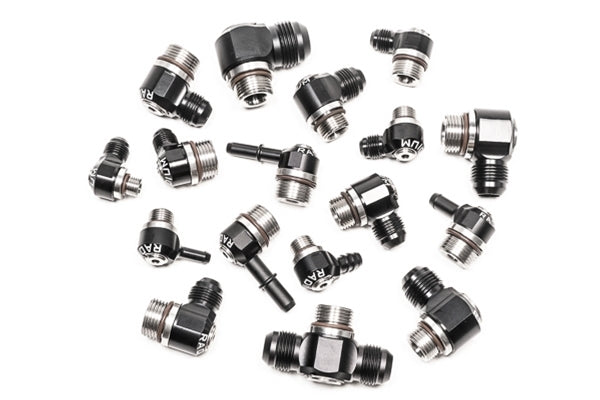

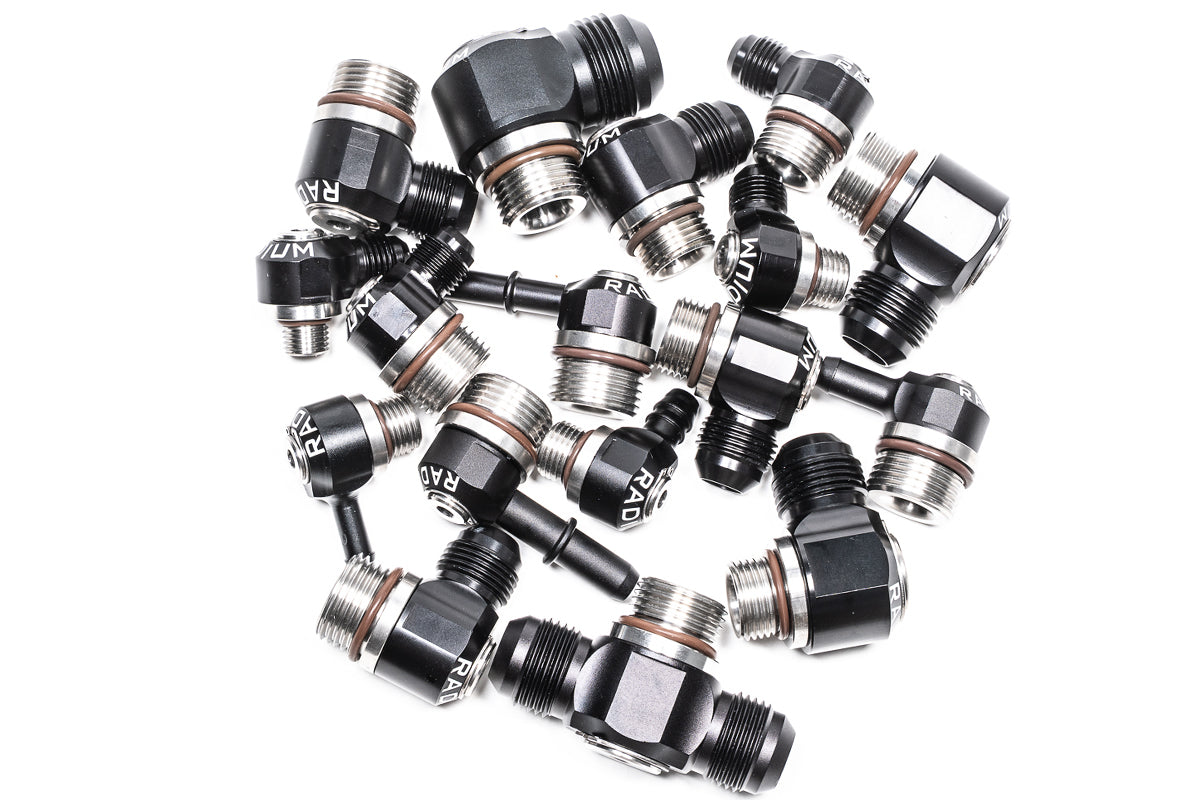

Related Swivel Banjo Fittings

• 20-1000-0806 Low Profile Swivel Banjo Fitting, 8AN ORB to 6AN Male
• 20-1000-0810 Low Profile Swivel Banjo Fitting, 8AN ORB to 10AN Male
• 20-1000-0806F Low Profile Swivel Banjo Fitting, 8AN ORB to 6AN Female
• 20-1000-08313 Low Profile Swivel Banjo Fitting, 8AN ORB to 5/16" SAE Quick Connect Male
• 20-1000-08375 Low Profile Swivel Banjo Fitting, 8AN ORB to 3/8" SAE Quick Connect Male
• 20-1000-0810S Low Profile Swivel Banjo Fitting, 8AN ORB to 10mm SAE Quick Connect Male
• 20-1000-0816S Low Profile Swivel Banjo Fitting, 8AN ORB to 16mm SAE Quick Connect Male
• 20-1000-0812S Low Profile Swivel Banjo Fitting, 8AN ORB to 12mm SAE Quick Connect Male
• 20-1000-0885 Low Profile Swivel Banjo Fitting, 8AN ORB to 8.5mm Barb
• 20-1000-0810B Low Profile Swivel Banjo Fitting, 8AN ORB to 10mm Barb

See the full range: Radium Swivel Banjo Fittings

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined, precision fit — fuel, oil and coolant safe
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Sold individually.
