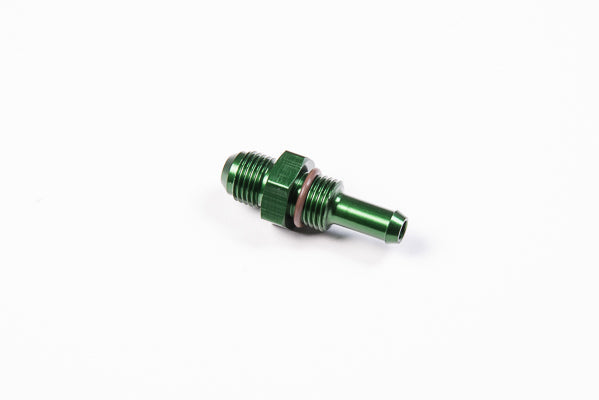

Radium 20-0170 Fuel Surge Tank Bulkhead Fitting, 6AN ORB, 6AN Male Flare to 8.5mm Barb

The Radium Engineering 20-0170 is a precision-machined Fuel Surge Tank Bulkhead, 6AN ORB, 6AN Male Flare to 8.5mm Barb fitting for fuel, oil and other fluid systems.

About the Range

These anodized aluminum bulkhead fittings feature a barbed hose connection on the underside and a male AN flare connection on the top side. Threads are AN ORB (o-ring boss) for use in various Radium hangers, or any ORB threaded surface.

Specifications

Installation Notes

• Lubricate the ORB O-ring with engine oil, O-ring lube or petroleum jelly before installation.
• AN flare connections should be installed dry and clean. Hand thread until fully engaged, then tighten 1/4 to 1/2 turn.
• Secure hose on the barb with a suitable hose clamp.

Related AN & ORB Adapter Fittings

• 20-0196 Fuel Surge Tank Bulkhead Fitting, 10AN ORB, 10AN Male Flare to 5/8" Barb
• 14-0291 6AN ORB to 8.5mm Barb Fitting
• 14-0691 6AN ORB to 10mm Barb Fitting
• 14-0130 10AN ORB to 6AN Male Flare Fitting
• 14-0151 8AN ORB to 6AN Male Flare Fitting
• 14-0195 6AN ORB to 6AN Male Flare Fitting
• 14-0245 6AN ORB to 8AN Male Flare Fitting
• 14-0149 6AN ORB Plug, Round Internal Hex
• 14-0270 6AN Male Flare to 1/4" NPT Male 90° Fitting
• 14-0531 10AN ORB Female to 6AN ORB Female Fitting

See the full range: Radium AN & ORB Adapter Fittings

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined, precision fit
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product, supplied by Coore Australia. Sold individually.
