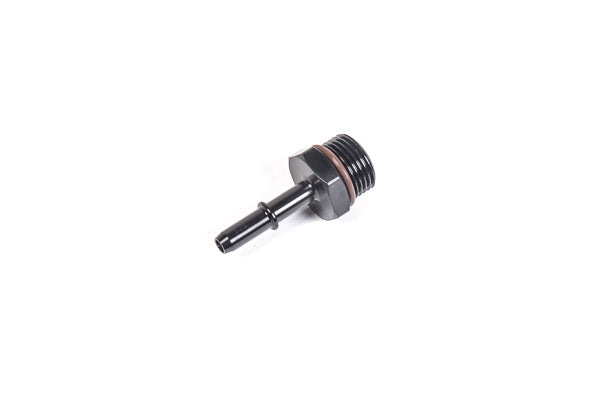

Radium 14-0337 10AN ORB to 5/16" SAE Male Fitting

The Radium Engineering 14-0337 is a precision-machined 10AN ORB to 5/16" SAE Male fitting for connecting to OEM SAE EFI quick connect fuel lines found on most modern fuel-injected vehicles.

About the Range

The 7/8"-14 threaded adapter fittings are compatible with 10AN ORB (o-ring boss) ports. Because the threads on these fittings are not used for sealing, PTFE paste or thread sealant is not required. The FKM o-ring should be lubricated with petroleum jelly, o-ring lubricant, or engine oil. Replacement o-rings are available here . ORB ports are an industry standard and found on many automotive plumbing products, including most Radium products. All fittings include FKM o-rings.

Specifications

Installation Notes

• Always lubricate the mating O-rings with a light amount of oil before pushing the SAE quick connect together.
• Lubricate the ORB O-ring with engine oil, O-ring lube or petroleum jelly before installation.

Related SAE EFI Quick Connect Fittings

• 14-0338 10AN ORB to 3/8" SAE Male Fitting
• 14-0367 8AN ORB to 5/16" SAE Male Fitting
• 14-0368 8AN ORB to 3/8" SAE Male Fitting
• 14-0227 3/8" SAE Female to 90° 5/16" Barb Fitting
• 14-0253 3/8" SAE Female to 5/16" Barb Fitting
• 14-0453 5/16" SAE Female to 3/8" Hose Barb Fitting
• 14-0542 3/8" SAE Female to 3/8" Barb Fitting
• 14-0553 10mm SAE Female to 3/8" Barb Fitting
• 14-0585 5/16" SAE Female to 90° 5/16" Barb Fitting
• 14-0586 5/16" SAE Female to 90° 3/8" Barb Fitting

See the full range: Radium SAE EFI Quick Connect Fittings
