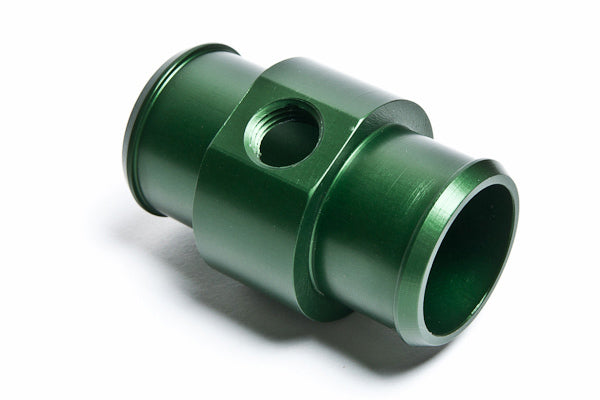

Radium 14-0058 Radiator Hose Barb Adapter, 1-1/4" (32mm) Hose, 1/4" NPT Port

The Radium Engineering 14-0058 is a precision-machined Radiator Hose Barb Adapter, 1-1/4" (32mm) Hose, 1/4" NPT Port fitting for fuel, oil and other fluid systems.

About the Range

These billet aluminum adapters are designed to provide an easy way to tap into a fuel tank filler hose, or a coolant hose. They features a 1/4 NPT female threaded hole that can accept a variety of fittings. Overall length is 2.25 inches.

Specifications

Installation Notes

• NPT threads seal on the taper — use a fuel-safe thread sealant on the NPT threads.
• Secure hose on the barb with a suitable hose clamp.
