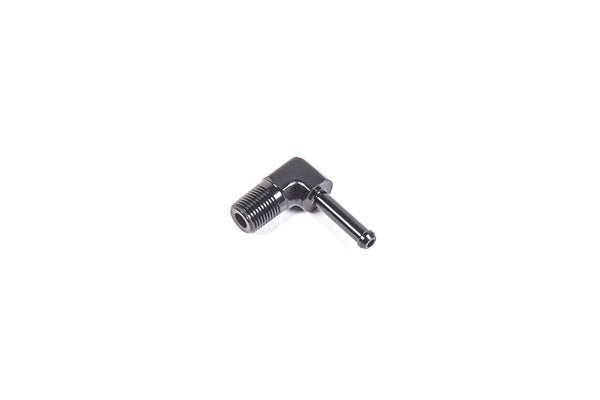

Radium 1/8" NPT Male to 3/16" Barb 90 Degree (4.8mm)

Radium 1/8" NPT Male to 3/16" Barb 90 Degree (4.8mm)

This precision-machined 90° adapter fitting converts a 1/8" NPT male port to a 3/16" (4.8mm) hose barb connection. Ideal for routing vacuum, fuel, or fluid lines in tight spaces where a straight fitting would not clear surrounding components.

NPT fittings seal via the intentional interference created by tapered threads meshing together. Always use a small amount of PTFE paste or tape on NPT threads, tighten to finger tight, then add a further 1.5 to 3 turns until secure.

Suits: Universal — any application with a 1/8" NPT male port requiring a 3/16" (4.8mm) hose barb connection

Specifications:

• NPT side: 1/8" NPT Male
• Barb side: 3/16" (4.8mm) hose barb
• Angle: 90°
• Sealing: PTFE paste or tape required on NPT threads

Available Part Numbers:

• 14-0344 — 1/8" NPT Male to 3/16" Barb, 90 Degree (4.8mm)

Why Radium Engineering?

• ✅ Manufactured in the USA to motorsport-grade tolerances
• ✅ CNC-machined billet aluminium for precision fit and long-term durability
• ✅ Trusted by tuners and race teams running high-power builds worldwide
• ✅ 90° configuration for tight-space routing — bolt-on fitment, no fabrication required
• ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel applications
