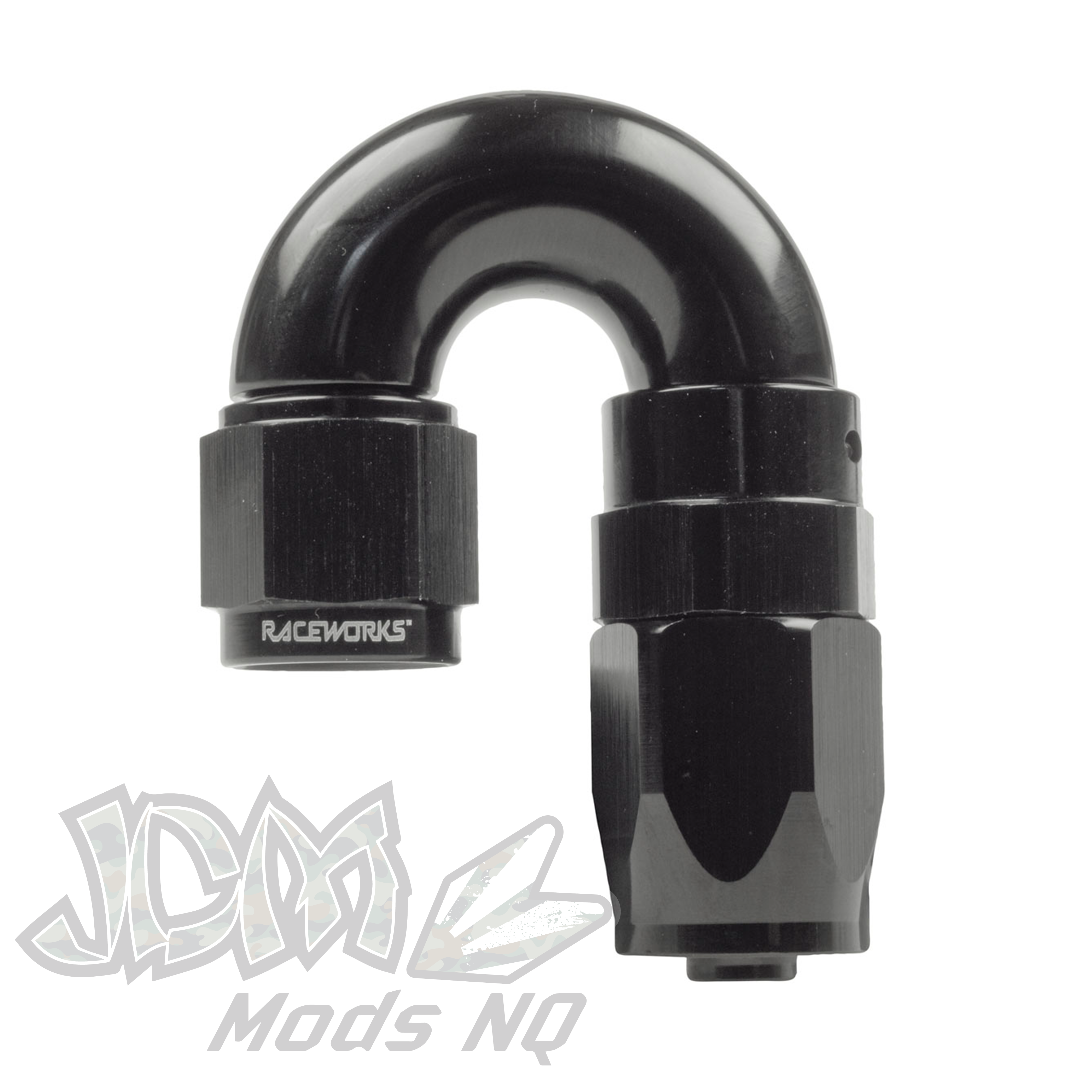

Raceworks 110 Series AN Taper Hose End Fittings 180 Degree

110 Series Hose Ends are Taper Hose Ends and suit Raceworks 100/120/140 Series Hose.

These fittings require the Hose to be pushed in and seated on a taper. For this reason, 110 Series Hose ends are easier to install than 100 Series.

However, since they don't cut the thread, the gripping force is less than that of 100 Series. For this reason, we recommend Taper Hose Ends for lower pressure applications lower than 60psi.

100 Series Cutter Hose Ends can be used for both low or high pressure applications.

Raceworks Hose Ends are all manufactured from 6061 T6 grade billet aluminium.

All Raceworks hose ends are hard coat anodised for maximum protection, and full flow to provide uninhibited fluid movement.

Female swivel hose end ensures ease of fitment once 100 Series Hose has been connected.

All Raceworks products come with a 2 year warranty.

Notes:

Raceworks cannot guarantee compatibility with other brands. Each manufacturer makes their Hose and Hose Ends to precise measurements and tolerances. It is recommended that Raceworks Hose is only used with matching Raceworks Hose Ends.
