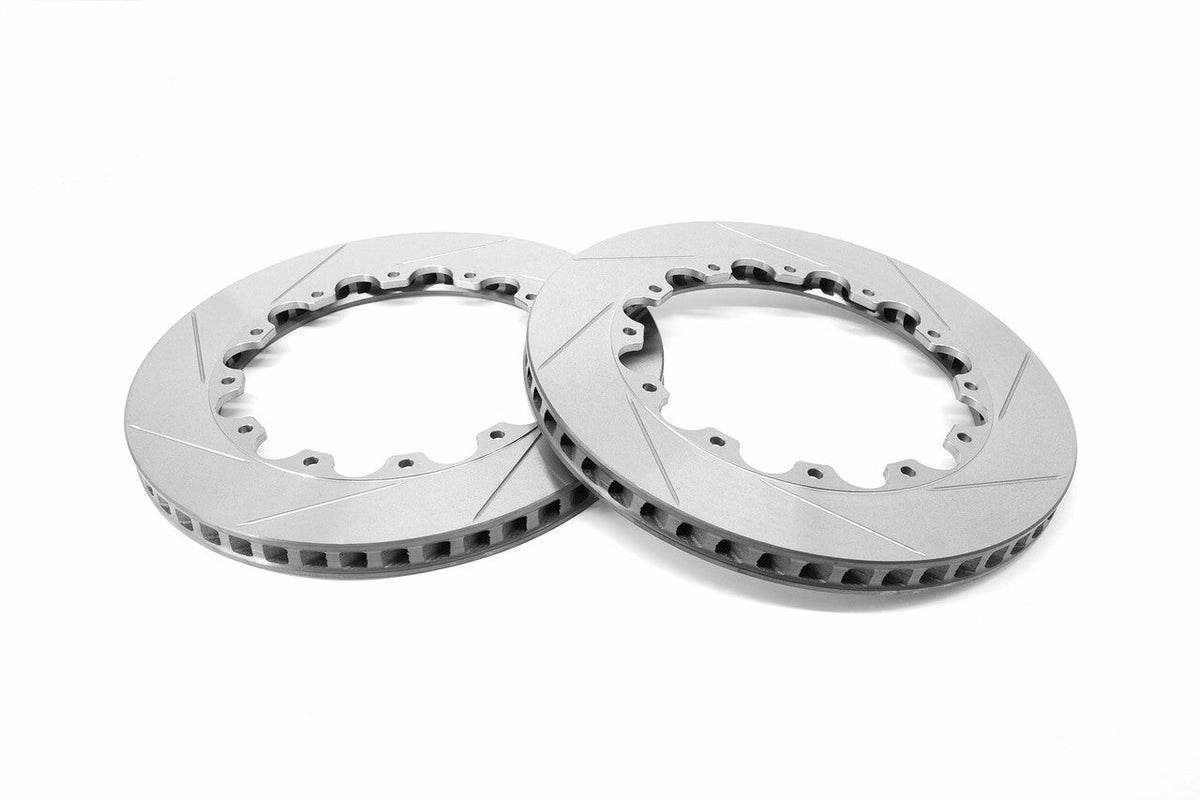

Paragon Performance Rotor Rings 380mm x 28mm (14.96" x 1.10") -P.C.D. 240mm - I.D. 266mm - D55

Paragon Performance Rotor Rings 380mm x 28mm (14.96” x 1.10”) -P.C.D. 240mm - I.D. 266mm - D55

Paragon Performance Rotor Ring offers superior braking and cooling efficiency optimized for track and race applications. It features directional ventilation vanes to create suction, turbulence, and guides cool air through the rotor for improved heat dissipation and increased resistance to cracking under harsh track condition.

Made of CM-250 special formulated high carbon alloy cast iron, it allows for an optimal bite, thermal characteristics, high-temperature strength and durability. Rotor rings are heat treated to release stress in the rotor to avoid deformation and vibration then turned by state-of-the-art CBN surface machining to ensure better break-in with new brake pads.

Vibration is reduced as the rotor lateral run-out is kept within 0.03mm and well-balanced: variations are kept within 2 grams. All rotor rings went through rigorous quality control procedures and inspections to ensure the rotor rings are fit for their purposes. A slotted rotor improves braking consistency by maintaining a clean contact surface and dissipate heat generated and gases released when the pads come into contact with the rotors. Slotted rotors have a superior advantage over blank rotors in wet or raining conditions by preventing water films to form between the brake pad and rotor surface. Weighing less than most O.E. rotors while maintaining proper thermal capacity, our rotors improves overall handling by saving unsprung mass.

Directional ventilation vanes for optimal cooling performance and increased resistance to cracking. Run up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%
2-piece design
Minimizing brake fade & judder during extended sessions

 Includes:
One pair Paragon Performance Rotor Ring (LH & RH)
Detailed installation manual

Part Number: PRR.8016.380.2660.280.24000.19.01.L/R

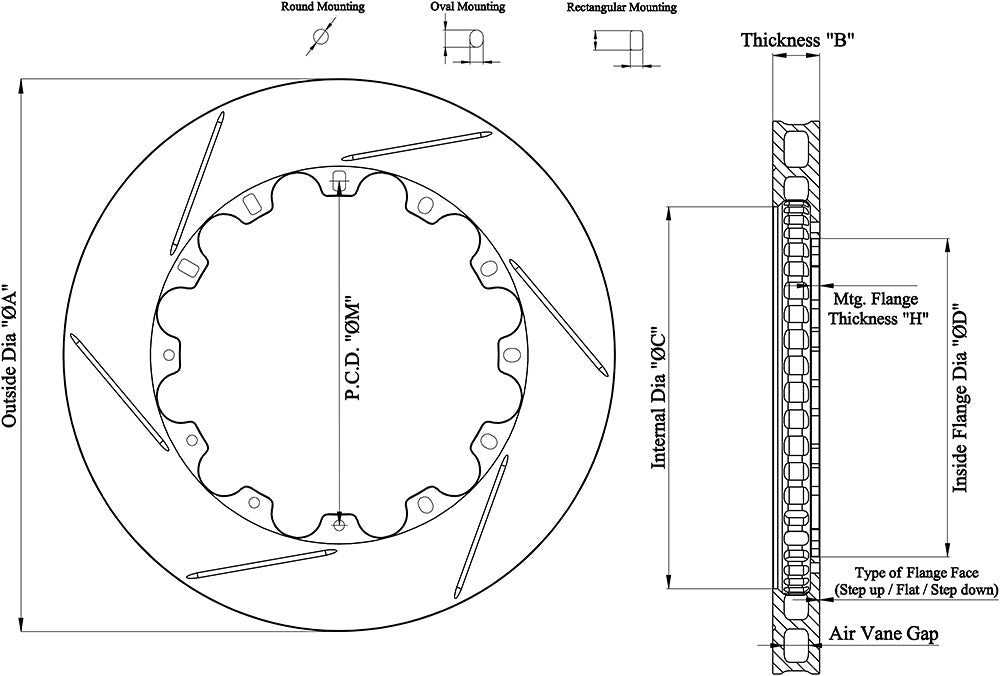

Specifications:

Outside Diameter "A": 380mm
Thickness "B": 28mm
P.C.D. "M": 240mm
Number of Mounting: 12
Size of Mounting: 8.1mm
Type of Mounting: Round
Internal Diameter "C": 266mm
Inside Flange Diameter "D": 224mm
Mtg. Flange Thickness "H": 5.6mm
Type of Flange Face: Step Up +0.15mm
Max Pad Depth: 57mm
Number of Vanes: 48
Air Vane Gap: 14mm
