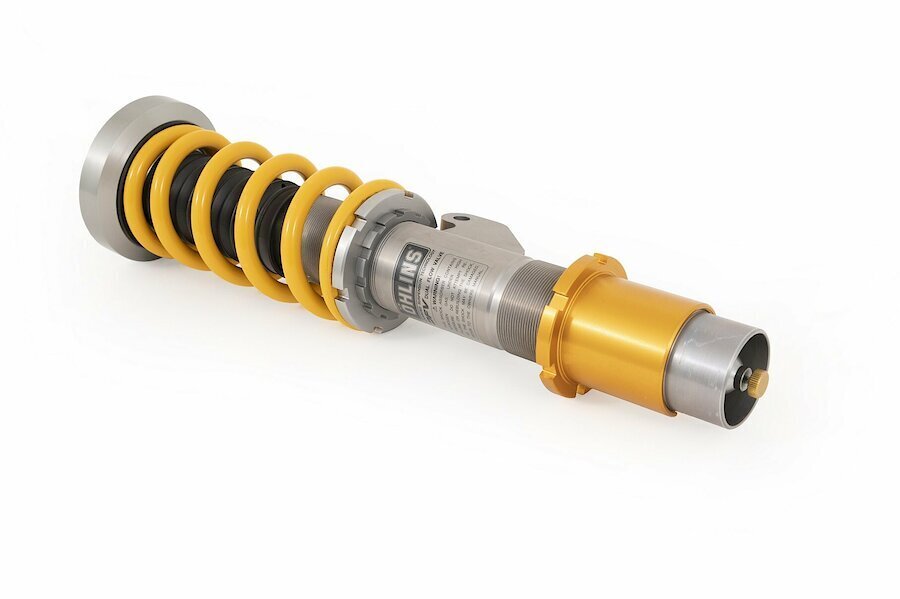

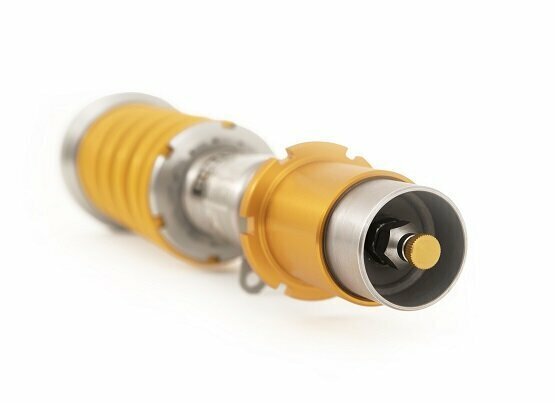

Öhlins Road & Track Coilovers – Toyota Supra A90 & BMW Z4 G29

Öhlins Road & Track Coilovers – Toyota Supra A90 & BMW Z4 G29

Part Number: TOS MU00S1 | Fitment: Toyota Supra A90 & BMW Z4 G29 (incl. RWD & xDrive AWD)

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with ~20mm drop, this kit is engineered for the shared A90/G29 platform. Springs are included.

⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.

Vehicle Fitment

Technical Specifications

Included Springs

Cancellation Kit (if required)

For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Springs included

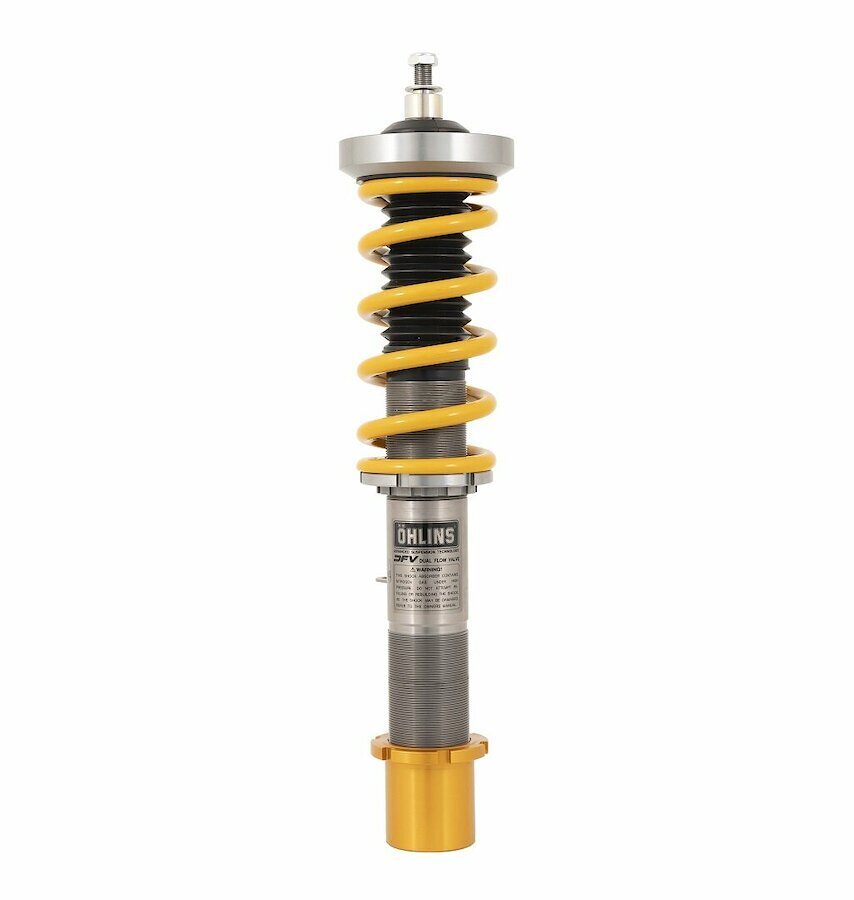

Front Features

• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 20mm lower than standard
• Coil springs 90 N/mm — included (Part No. 48010-27)
• Use with original top mounts

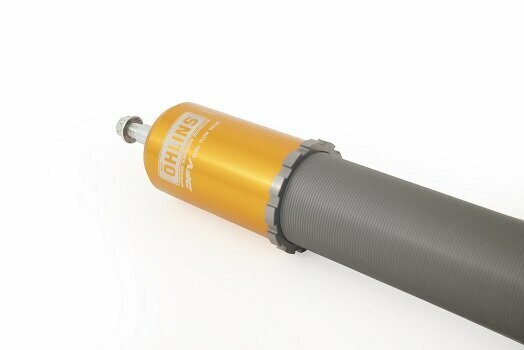

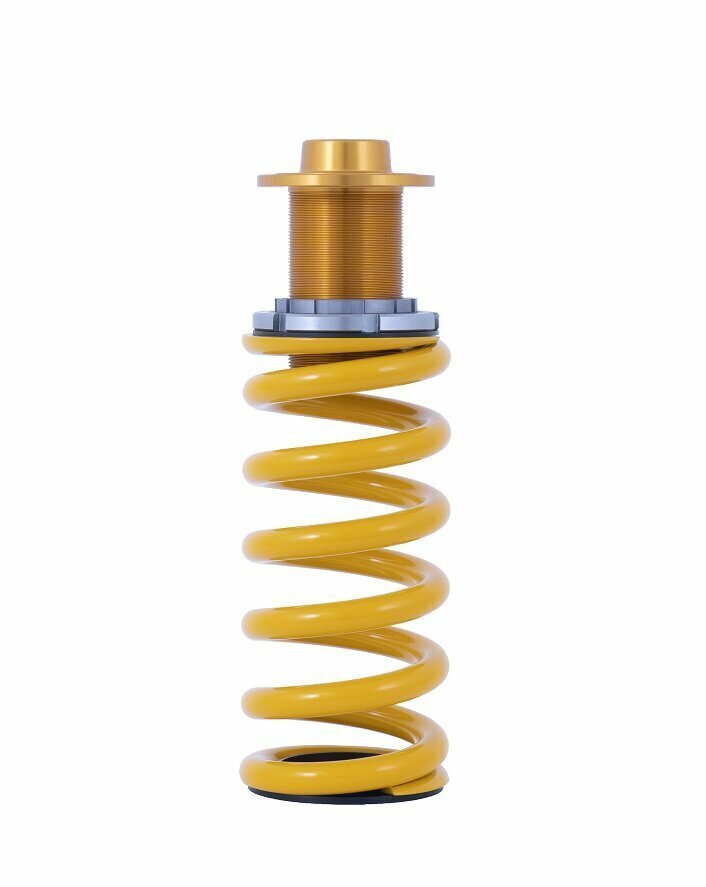

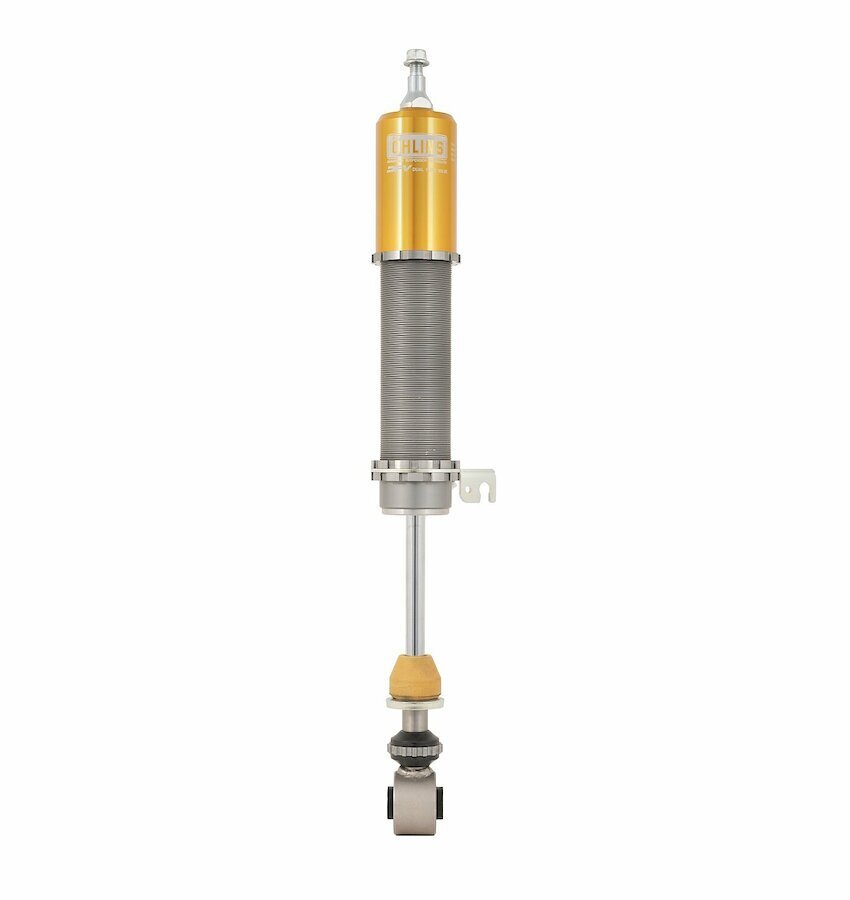

Rear Features

• Conventional shock absorber
• Single bleed adjuster
• Separate spring preload adjuster
• Height adjustable — approx. 20mm lower than standard
• Coil springs 160 N/mm — included (Part No. 48010-55)
• Use with original top mounts

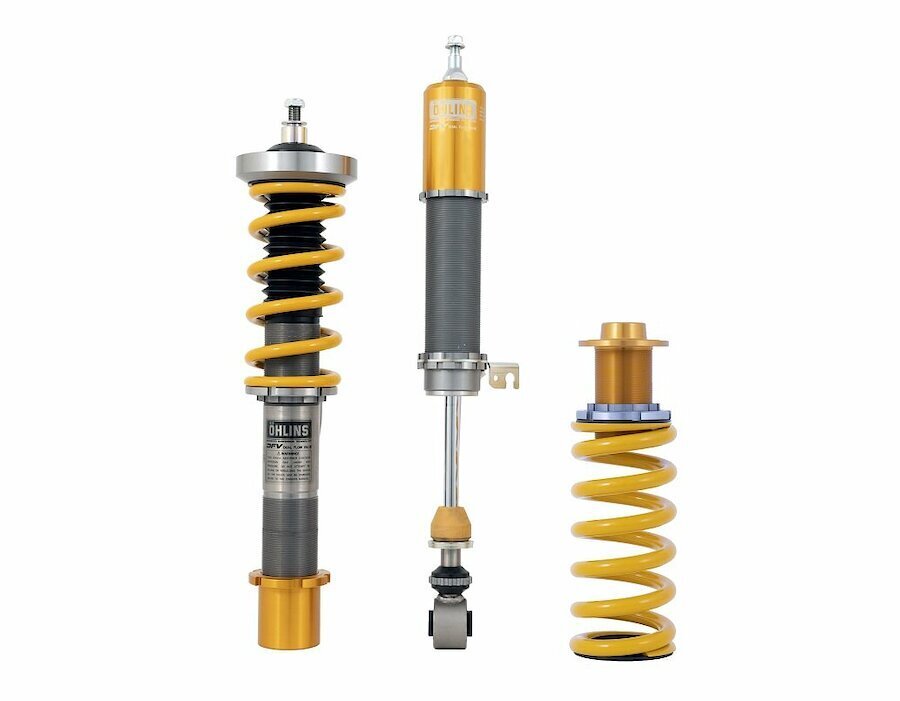

Kit Contents

• Coilover damper kit
• Front coil springs — 90 N/mm (Part No. 48010-27)
• Rear coil springs — 160 N/mm (Part No. 48010-55)
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Shared A90/G29 platform fitment — suits Toyota Supra & BMW Z4 (RWD & AWD)
• ✅ Precision ride height adjustment — spring geometry is never compromised
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
