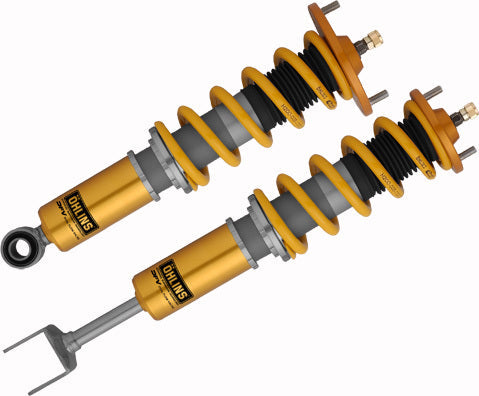

Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1993)

Öhlins Road & Track Coilovers – Nissan Skyline GT-R R32 (1989–1993)

Part Number: NIS MI05S1 | Fitment: Nissan Skyline GT-R R32 (1989–1993) | Top Mounts: Aluminium rubber mounts (not camber adjustable)

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. This kit features conventional shock absorbers front and rear with separate ride height adjustment, aluminium top mounts, and springs included as a complete car set.

Vehicle Fitment

Technical Specifications

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment via separate ride height adjuster
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Springs and mounting parts included

Front Features

• Conventional shock absorber
• Single bleed adjuster — compression and rebound
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 40mm lower than standard (recommended setting)
• Spring rate 100 N/mm — included
• Aluminium rubber top mounts included (not camber adjustable)

Rear Features

• Conventional shock absorber
• Single bleed adjuster — compression and rebound
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 25mm lower than standard (recommended setting)
• Spring rate 80 N/mm — included
• Aluminium rubber top mounts included (not camber adjustable)

Kit Contents

• Complete coilover kit including springs and all mounting parts
• Aluminium rubber top mounts (front & rear)
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Separate ride height adjuster — spring geometry is never compromised
• ✅ Complete kit — springs, aluminium top mounts, and mounting hardware all included
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
