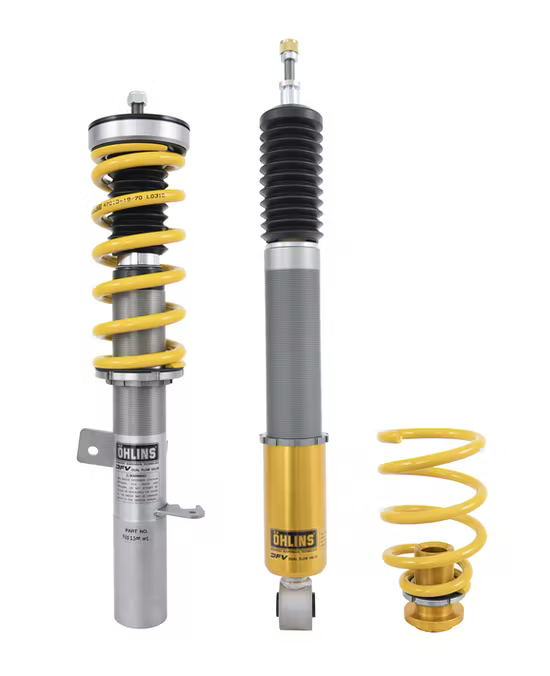

Öhlins Road & Track Coilovers – Ford Focus RS Mk3 LZ (2016–2017)

Öhlins Road & Track Coilovers – Ford Focus RS Mk3 LZ (2016–2017)

Part Number: FOS MS00S1 | Fitment: Ford Focus RS Mk3 LZ — 2016–2017

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Featuring a McPherson front strut and conventional rear shock with a separate length adjuster, springs included as a complete car set. Approximately 15–25mm drop with the recommended setup.

⚠️ Note: For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.

Vehicle Fitment

Technical Specifications

Included Springs

Cancellation Kit (if required)

For vehicles equipped OE with electronic adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual height adjustment — approx. 15–25mm below standard
• Single bleed adjuster — compression and rebound
• Rebuildable for custom tuning
• Corrosion salt spray tested (ISO 9227)
• 2-year limited warranty
• Front & rear springs included

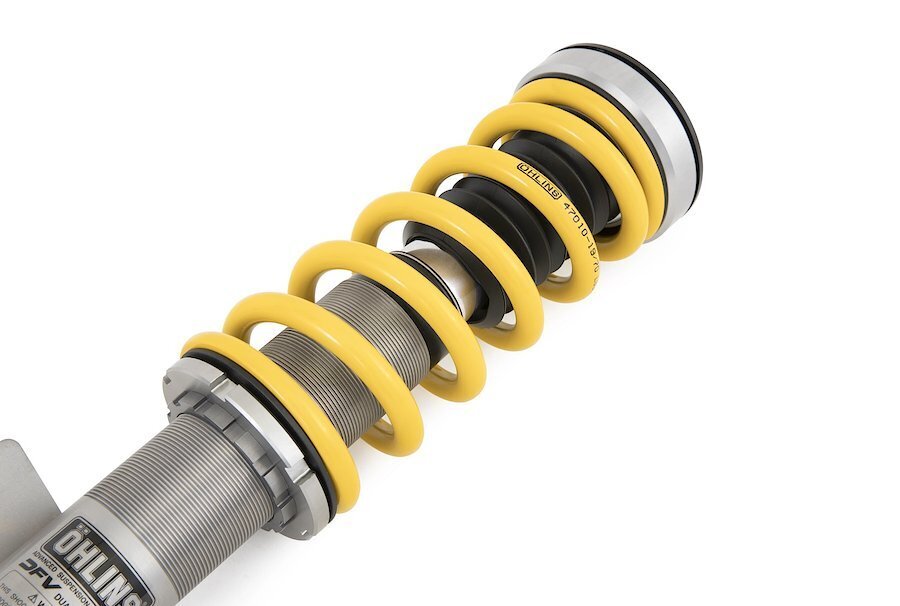

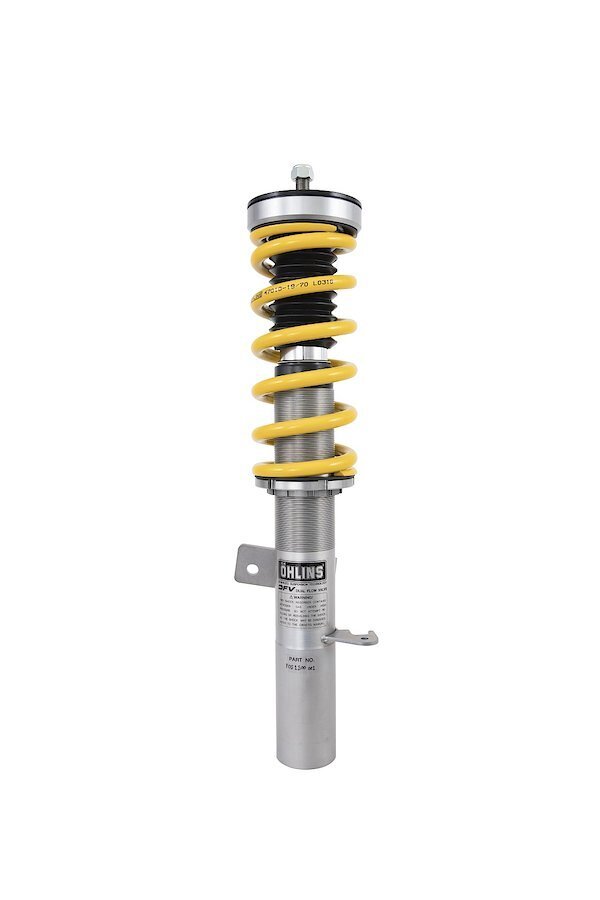

Front Features

• McPherson strut
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 15–25mm lower than standard
• Coil springs included (80 N/mm — Part No. 48010-23)
• Use with original top mounts

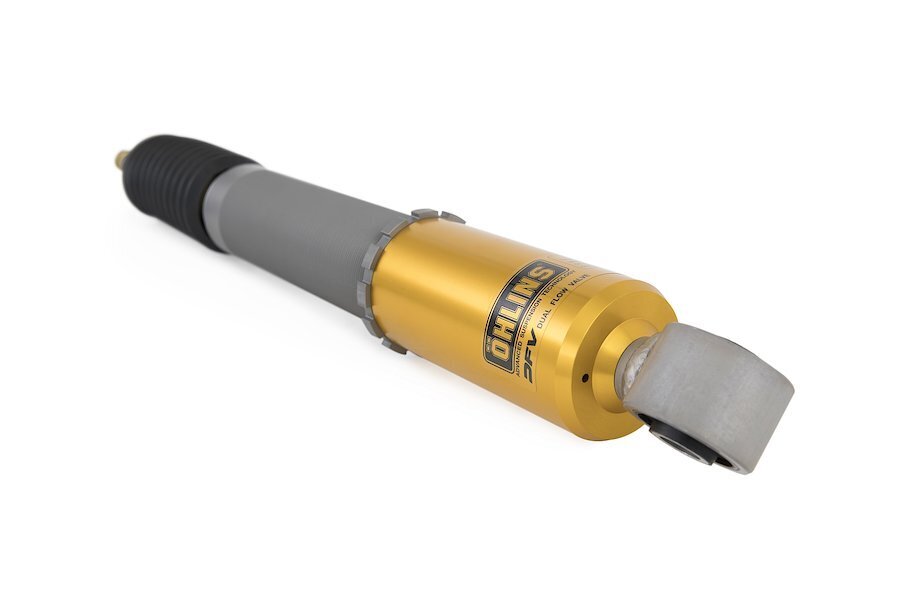

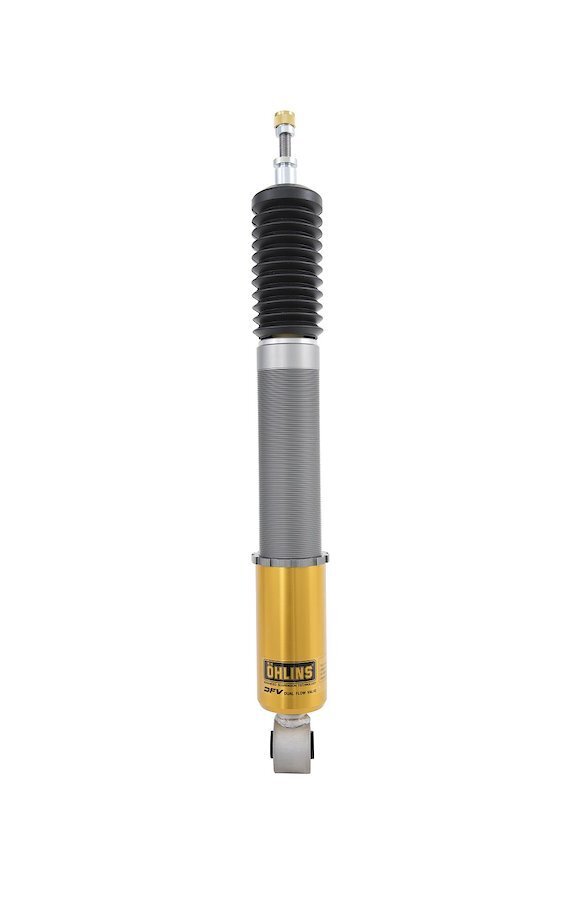

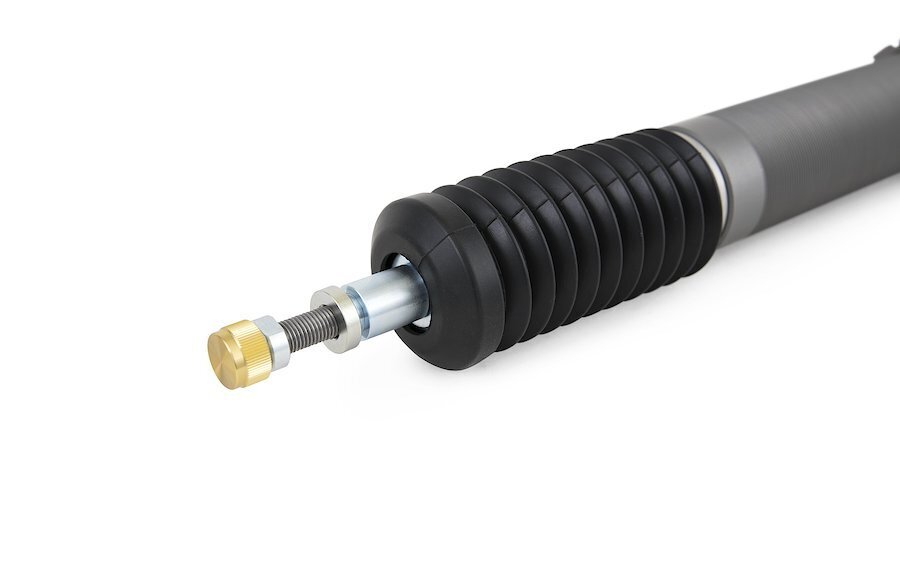

Rear Features

• Conventional shock absorber
• Separate length adjuster
• Single bleed adjuster
• Spring preload adjuster
• Height adjustable — approx. 15–25mm lower than standard

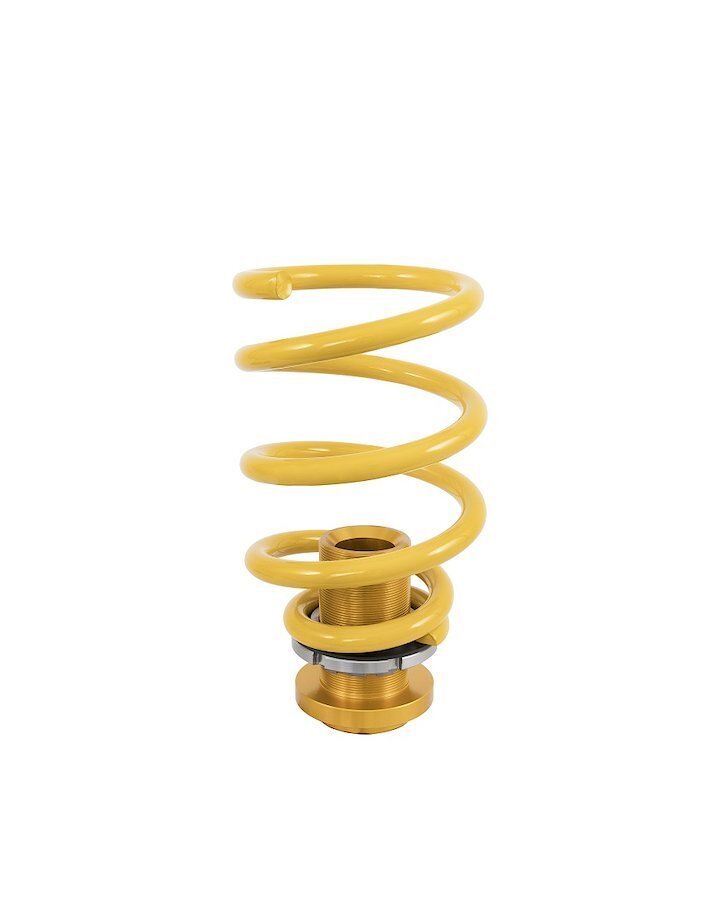

• Coil springs included (70 N/mm — Part No. 47040-19)
• Use with original top mounts

Kit Contents

• Complete coilover kit including springs and all mounting parts
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ DFV technology — genuine race-car response with OEM-level daily comfort
• ✅ Engineered for the Focus RS Mk3 — AWD performance hatch with factory drift mode
• ✅ Springs included — 80/70 N/mm front & rear, ready to fit
• ✅ Rebuildable, ISO 9227 corrosion-tested, 2-year limited warranty
