Öhlins Road & Track Coilovers – Audi A4/S4/RS4 B9 & A5/S5/RS5 F5

Öhlins Road & Track Coilovers – Audi A4/S4/RS4 B9 & A5/S5/RS5 F5

Part Number: AUS MU00S1 | Fitment: Audi A4, S4, RS4 (B9) & A5, S5, RS5 (F5)

Over 40 years of motorsport engineering distilled into a street-ready coilover kit. The Öhlins Road & Track series delivers a genuine racing experience without sacrificing daily drivability — thanks to Öhlins' proprietary Dual Flow Valve (DFV) technology. Corrosion-tested to ISO 9227 and backed by a 2-year worldwide limited warranty.

⚠️ Note: For vehicles equipped OE with electronically adjustable suspension, an Öhlins cancellation kit is also required (sold separately). See cancellation kit table below.

Vehicle Fitment

Technical Specifications

Included Springs

Cancellation Kit (if required)

For vehicles equipped OE with electronically adjustable suspension, an Öhlins cancellation kit must also be used. Ordered separately.

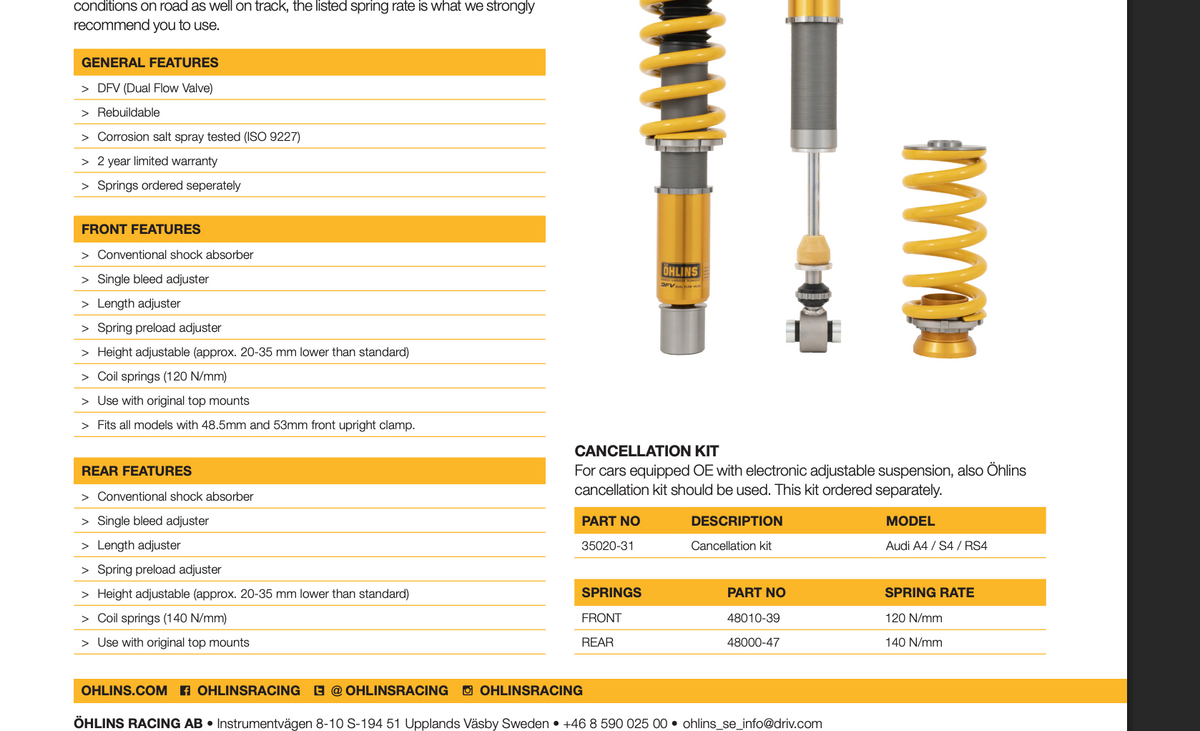

General Features

• DFV technology (Dual Flow Valve) — Öhlins' proprietary damping system
• Individual ride height adjustment via length adjuster (front & rear)
• Spring preload adjustment with included C-spanner
• Rebuildable construction for long-term serviceability
• Corrosion salt spray tested to ISO 9227
• 2-year worldwide limited warranty
• Front & rear springs included

Front Features

• Conventional shock absorber design
• Single bleed adjuster
• Length adjuster
• Spring preload adjuster
• Height adjustable — approx. 20–35mm lower than standard
• Coil springs included (120 N/mm)
• Use with original top mounts
• Fits all models with 48.5mm and 53mm front upright clamp

Rear Features

• Conventional shock absorber design
• Single bleed adjuster
• Length adjuster
• Spring preload adjuster
• Height adjustable — approx. 20–35mm lower than standard
• Coil springs included (140 N/mm)
• Use with original top mounts

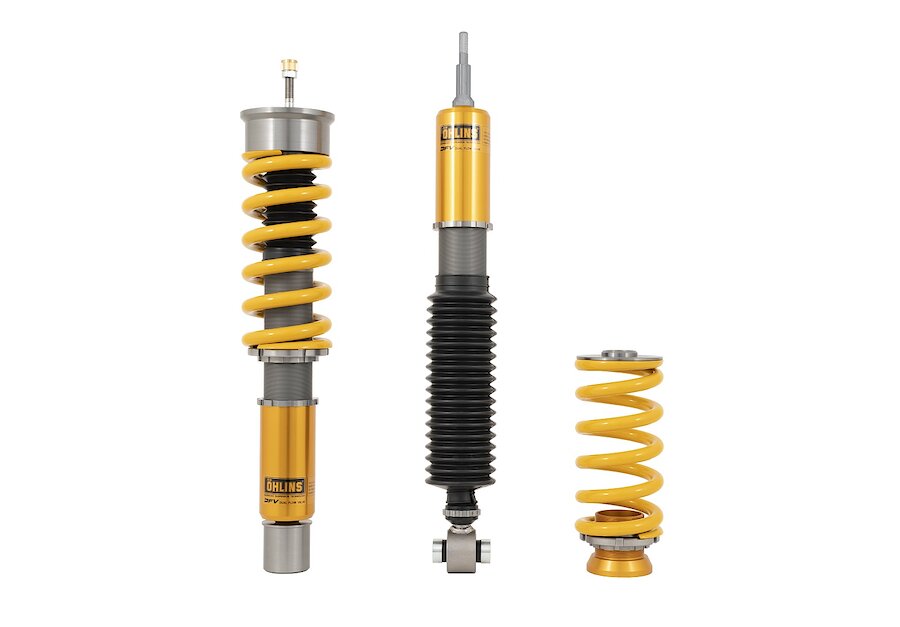

Kit Contents

• Complete coilover kit including springs and all mounting hardware
• C-spanner for spring preload adjustment
• Owner's manual and mounting instructions
• Öhlins sticker set

What is DFV (Dual Flow Valve)?

DFV is Öhlins' proprietary damping technology that sets the Road & Track range apart from conventional coilovers. The dual flow valve provides consistent damping characteristics on both compression and rebound strokes — the damper fluid follows a consistent flow path in both directions. This means the wheel and tyre can rapidly return to the road surface after a bump, maximising grip and traction at all times.

Because DFV opens more quickly on minor road imperfections, ride comfort is surprisingly supple — more akin to an OEM strut than a typical coilover. Over undulating surfaces, the compliance of the R&T units allows the car to crest bumps and potholes while remaining stable and in control. Traction is always maintained at its optimum level.

Öhlins also incorporates a unique needle bleed valve that expands with temperature, compensating for changes in fluid viscosity as the damper heats up. The result: consistent damping performance lap after lap, regardless of operating temperature.

Why Öhlins Road & Track?

• ✅ Over 40 years of motorsport engineering heritage — trusted by factory race teams worldwide
• ✅ Proprietary DFV technology delivers genuine race-car response with OEM-level daily comfort
• ✅ Rebuildable and fully serviceable for long-term ownership and track use
• ✅ Precision ride height adjustment via length adjuster — 20–35mm of lowering range
• ✅ ISO 9227 corrosion-tested and backed by a 2-year worldwide limited warranty
