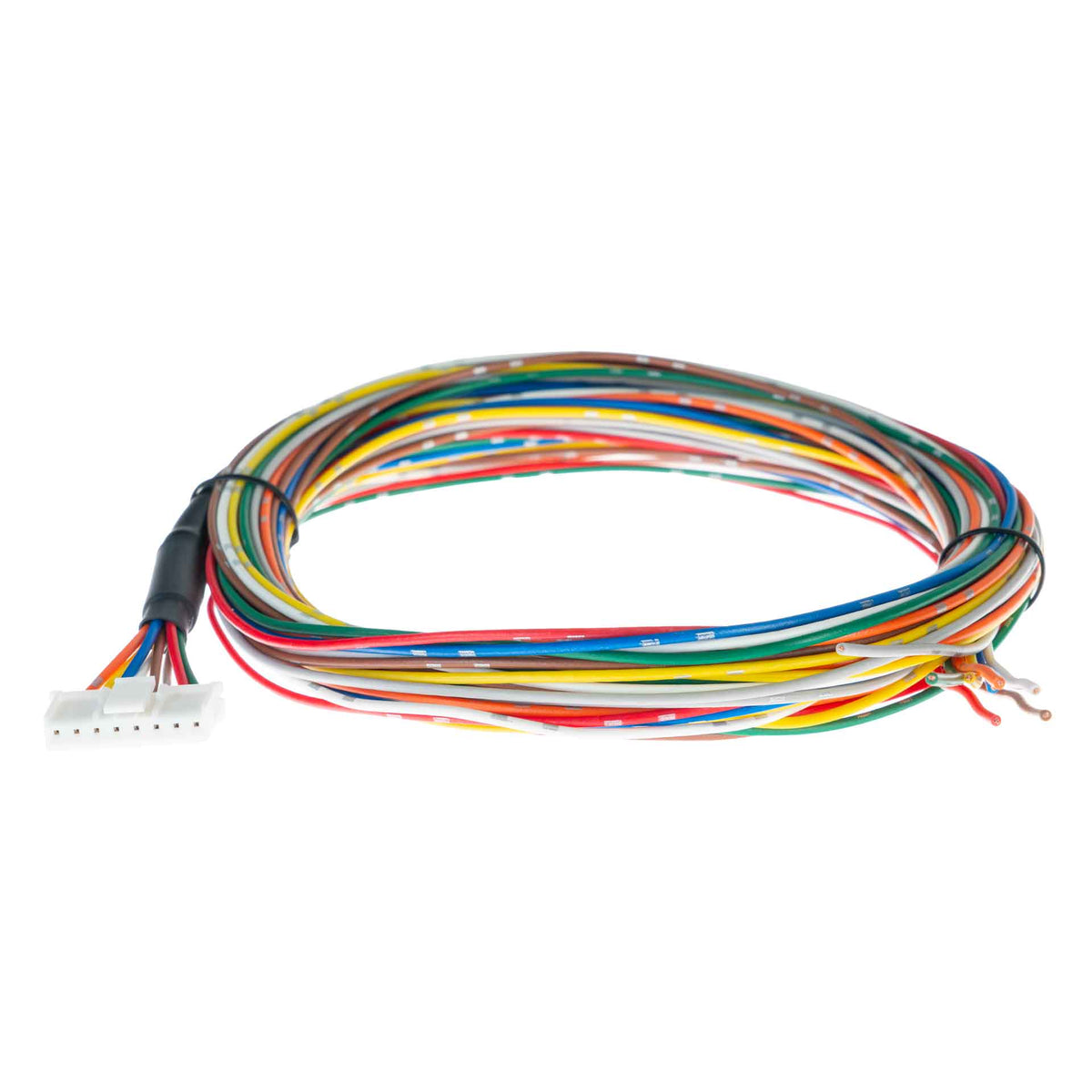

Link XS Expansion Loom (XSL)

Link XS Expansion Loom (XSL)

Available from JDM Mods NQ, the Link XS Expansion Loom (XSL) is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0106

Models Supported

• Link Plug-in ECUs

Product Dimensions

• 2500mm(L)x30mm(W)x30mm(H)
• 98.43in(L)x1.18in(W)x1.18in(H)

Product Weight

• 105 grams (3.70 ounces)

Material

• 2.5m long

Electrical

• Operating Voltage Range: 0-24V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 22AWG/0.3mm2

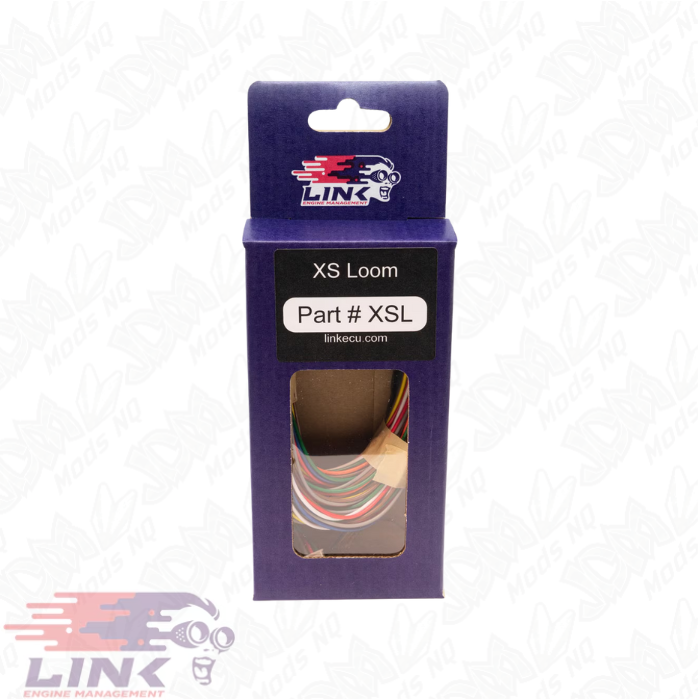

What's in the Box

• 2.5m XS Expansion Loom

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified ECU or device connector, wire routing and pin assignments. Electrical installation should follow the correct wiring diagram, with protection and CAN termination where required.
