Link USCar Injector Connector Kit

Link USCar Injector Connector Kit

Available from JDM Mods NQ, the Link USCar Injector Connector Kit is a connector component for assembling or servicing compatible wiring. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0289

Product Dimensions

• 40mm(L)x25mm(W)x15mm(H) 1.57in(L)x0.98in(W)x0.59in(H)

Product Weight

• 5 grams (0.18 ounces)

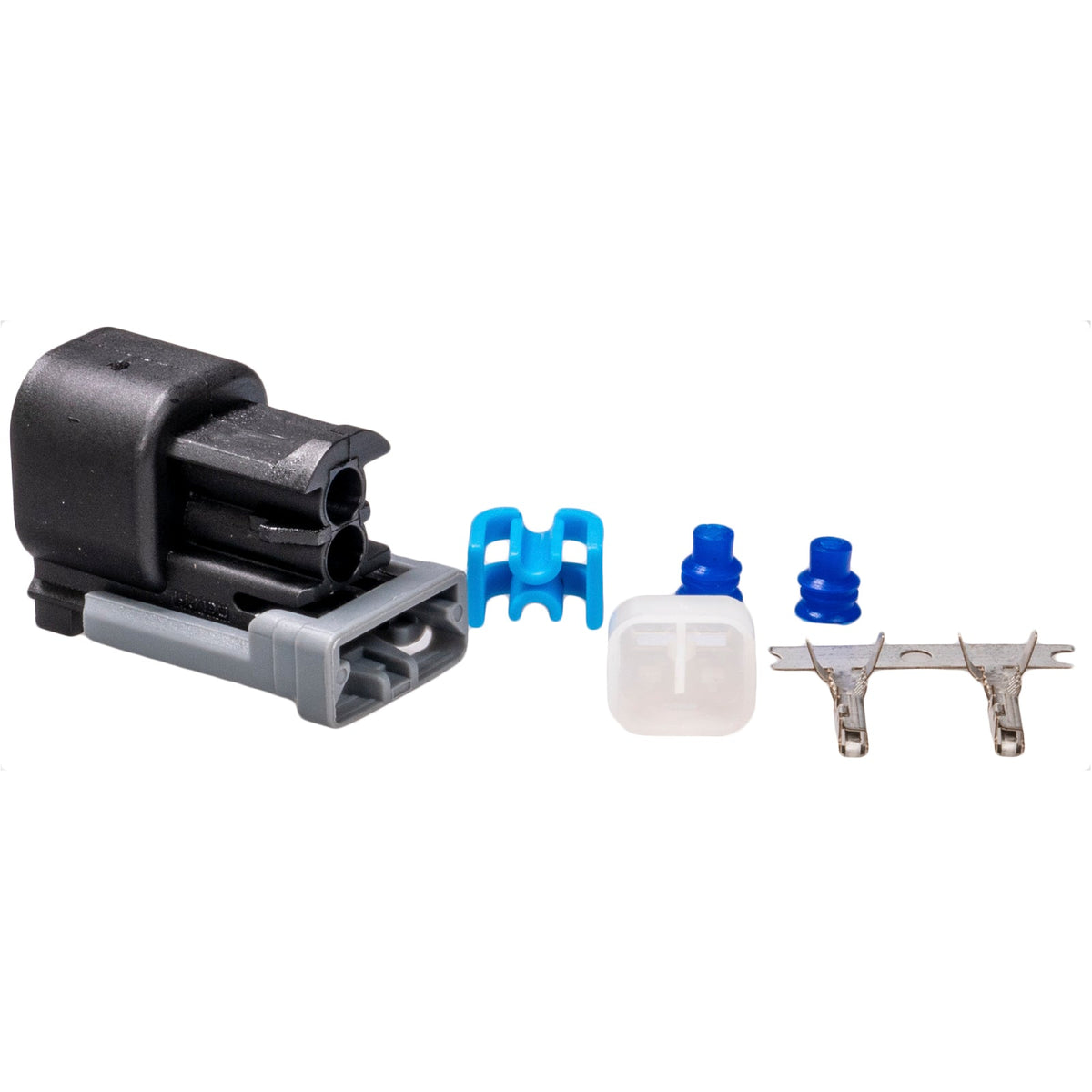

What's in the Box

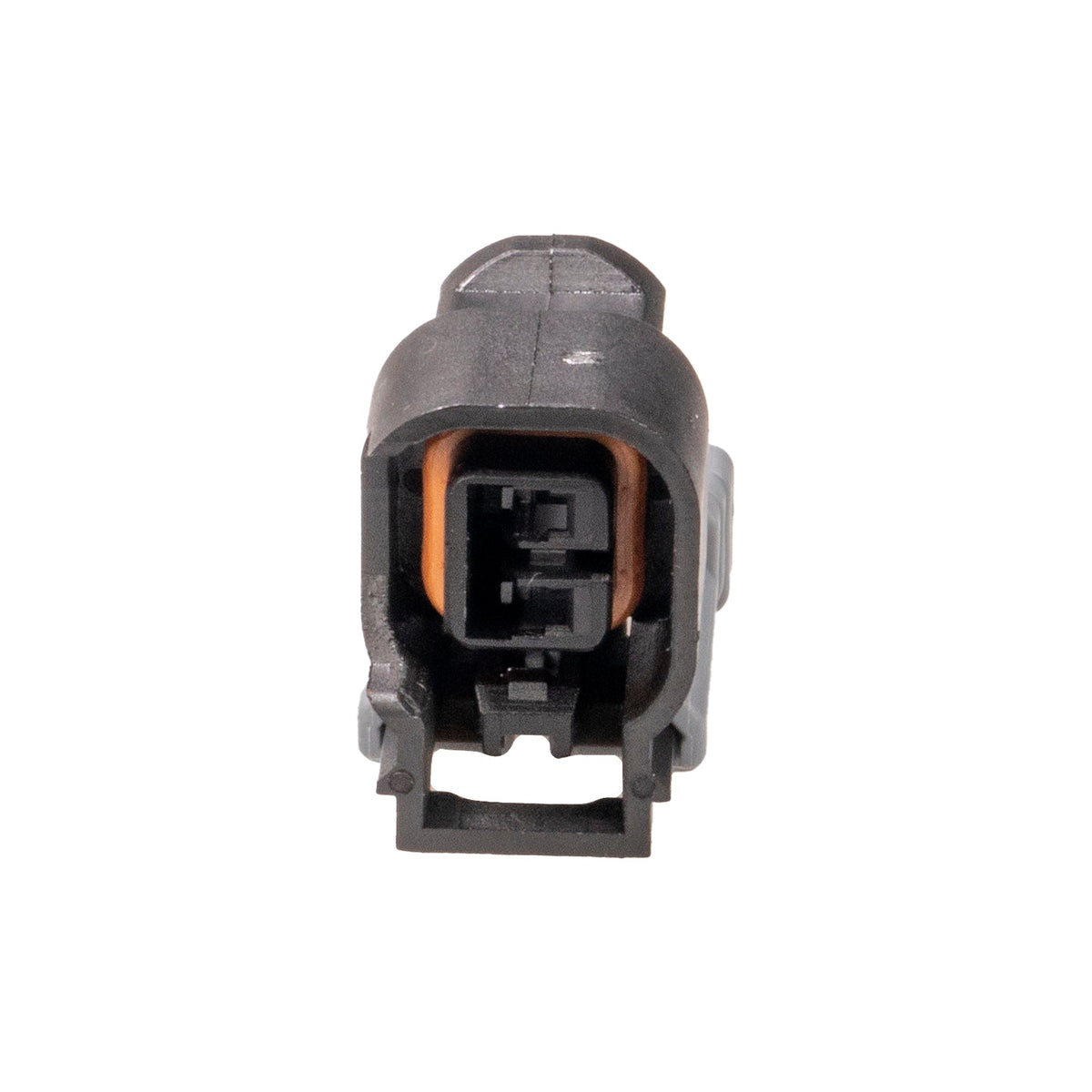

• Housing
• Crimp terminals
• Terminal seals
• Seal locating tab
• Locking tab

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Use the correct terminal crimping tool and the pinout for the intended connector. Verify terminal retention, continuity and pin assignments before applying power.
