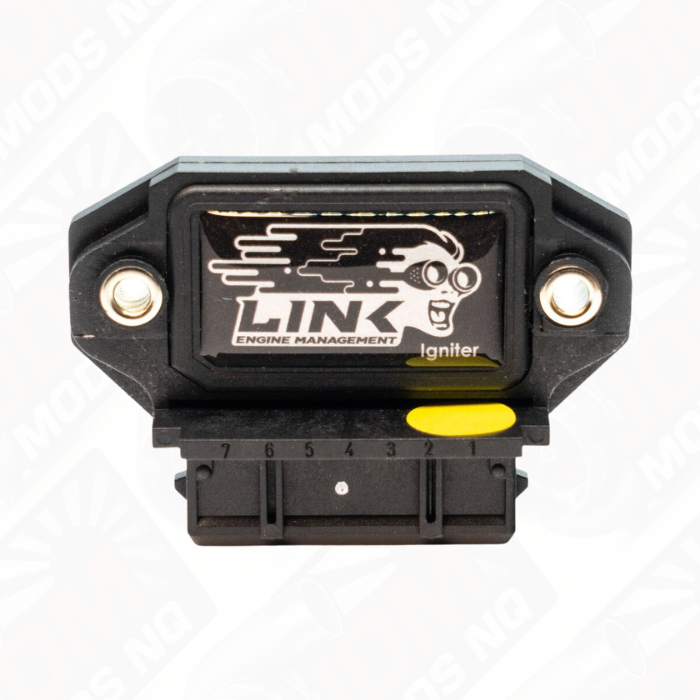

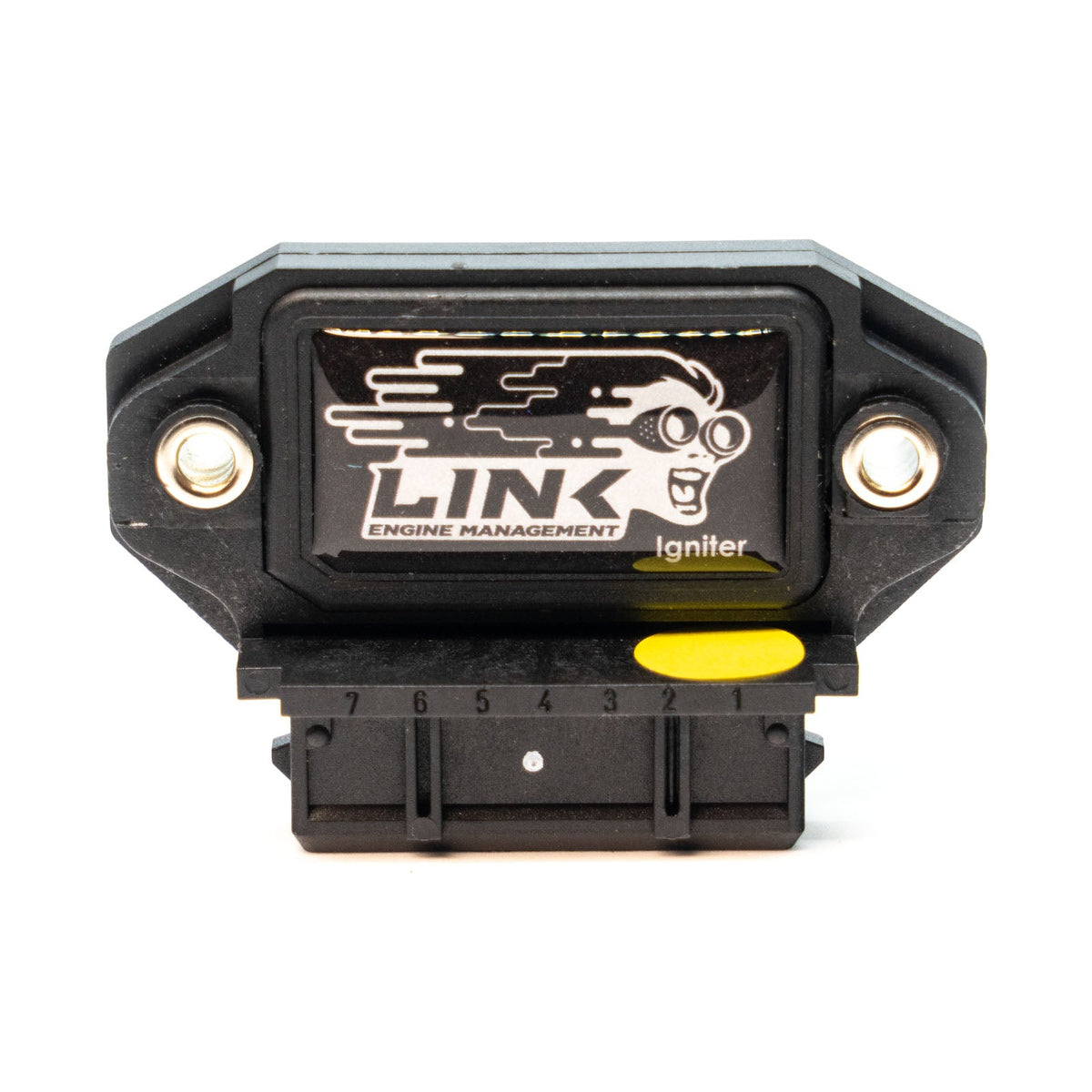

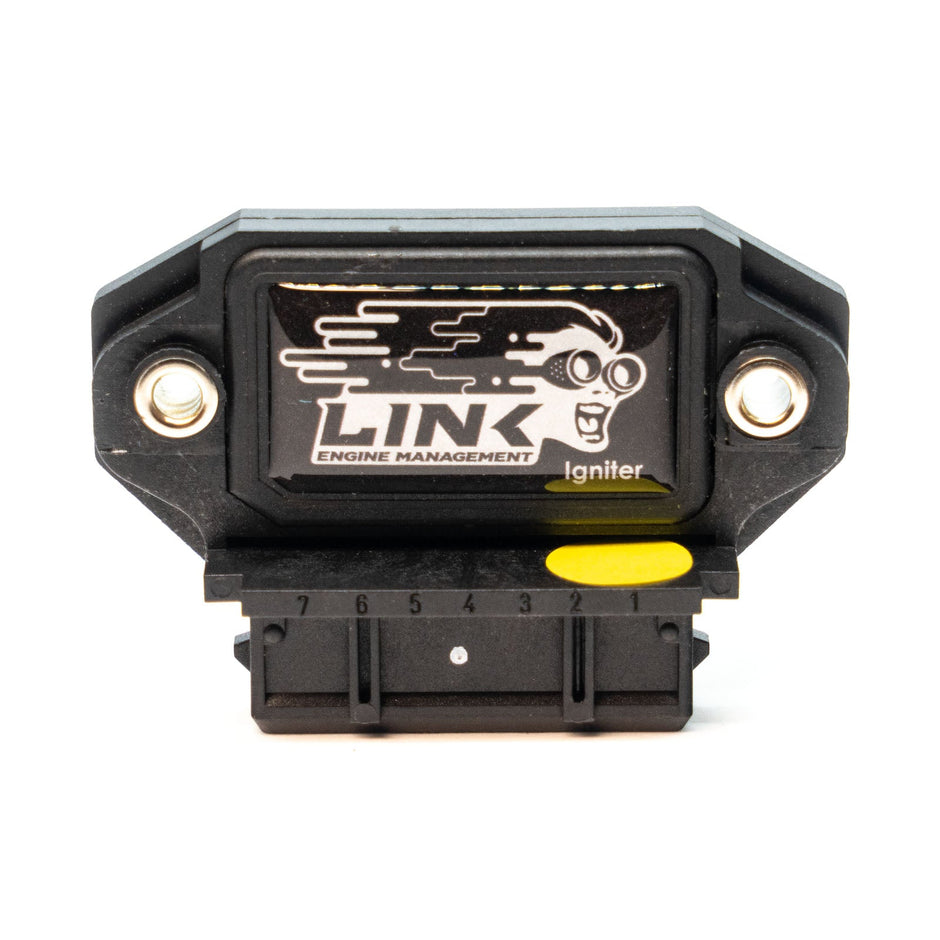

Link Three Channel Inductive Igniter (I3)

Link Three Channel Inductive Igniter (I3)

Available from JDM Mods NQ, the Link Three Channel Inductive Igniter (I3) is an ignition-system component that must be matched to the ECU output and engine configuration. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0044

Models Supported

• Suitable when using ignition coils without built-in igniters.

Warnings

• Mount to a suitable heatsink or metal surface using heat transfer compound.
• Protect the connector from water and moisture.
• Do not parallel multiple ignition outputs onto a single channel.

ECU Tuning Features

• Drives up to 3 ignition coils
• Suitable for non-transistorised ("dumb") ignition coils
• Triple Darlington transistor design
• Bosch 7-pin Jetronic connector

Product Dimensions

• 71mm(L) x 48mm(W) x 21mm(H)
• 2.80in(L) x 1.89in(W) x 0.83in(H)

Product Weight

• 45 grams (1.59 ounces)

Electrical

• Operating Voltage Range: 6-18V
• Maximum Input Voltage: 400V
• Primary current up to 8.5A per channel

Misc.

• Operating Temperature -40degC to +110degC

What's in the Box

• Three Channel Igniter
• Wire side Ignitor/Map

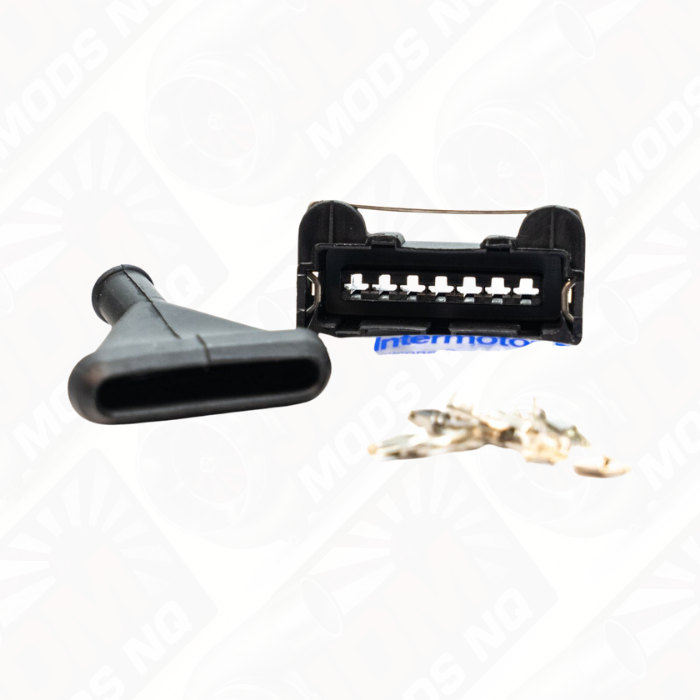

• Rubber boot 7 way Bosch
• Printed Accessory instructions

Connector

• Bosch 7-pin Jetronic

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
