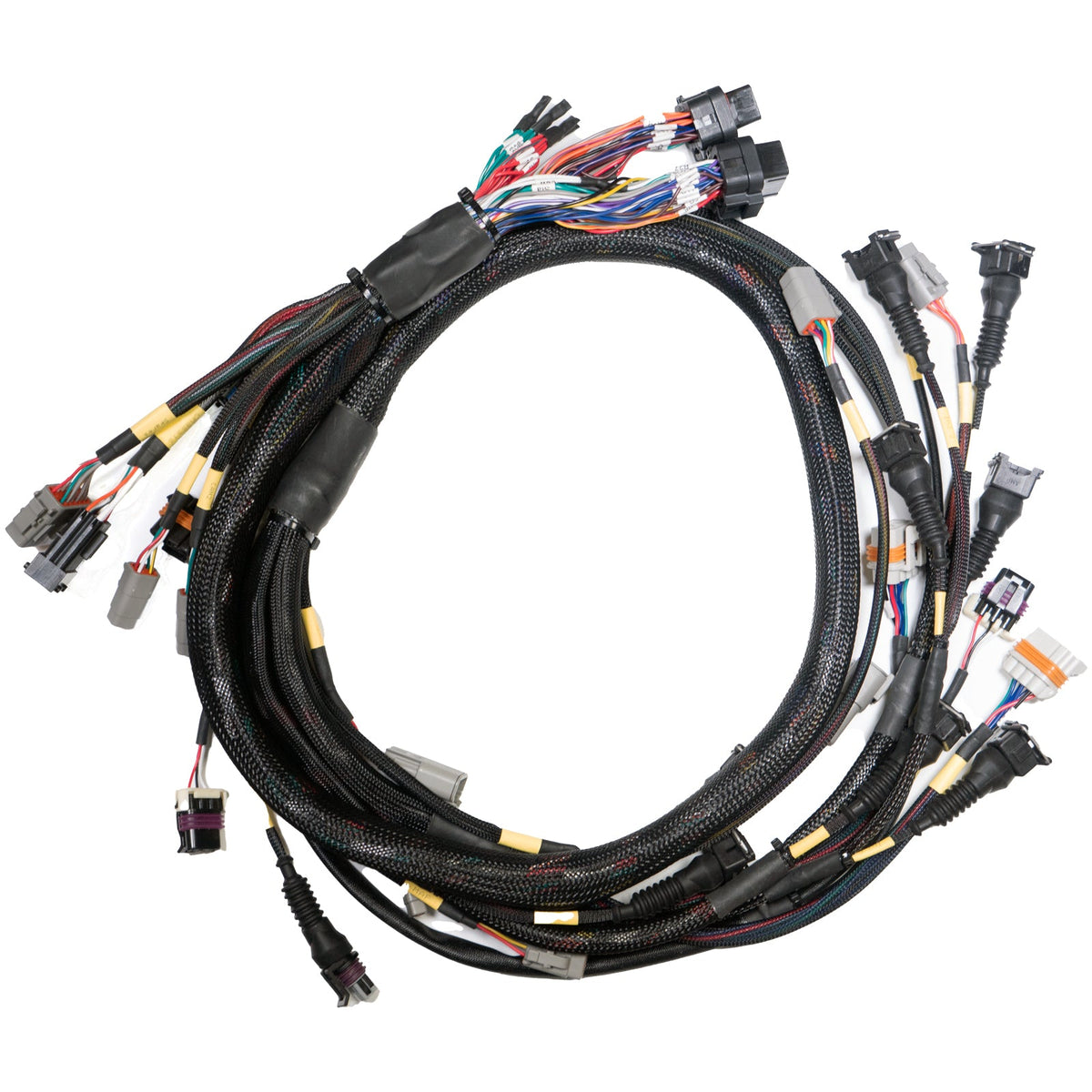

Link Terminated Engine Harness GM LS GEN3/4

Link Terminated Engine Harness GM LS GEN3/4

Available from JDM Mods NQ, the Link Terminated Engine Harness GM LS GEN3/4 is a wiring component for the compatible Link installation listed below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0300

Models Supported

• Gen 3 LS1/LS6
• Gen 4 LS2/LS3/LS7*

Warnings

• *Notes for use with Gen 4 Engines
• A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor.
• A small modification is required to the crank sensor connector. See "crank connector" section in installation manual for details.
• Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287.
• To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306).
• To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness).
• If you require a fuse box and relay, please purchase 101-0310 in addition.

ECU Tuning Features

• Supports both cable-operated throttle bodies (using the LS Stepper Adapter) and Drive-by-Wire throttle bodies (using the LS DBW Adapter).
• Features a powered DTM4 CAN Connector compatible with Link CAN Accessories and Cables.
• Features EV1/JPT injector connectors that plug directly into common LS1 injectors.
• Adapters are required for early truck engines with Multilec injector connectors as well as the later LS3 style USCAR/EV6 injectors (use injector adapter Link PN 101-0287).
• Supports factory 7 Pin Coil Harness Connector.
• Support Link MAP Sensors.
• Use the LS Map Adapter to retain factory Gen 3 MAP Sensor.
• Supports the factory F Body Alternator (ACDelco PN 335-1075).

Material

• AVSS automotive wiring

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Check the engine generation, throttle arrangement and connector compatibility. Install with appropriate power protection, grounds and ECU calibration; a wiring harness does not replace a tuned calibration.
