Link TCC06 6 Channel EGT to CAN Module

Link TCC06 6 Channel EGT to CAN Module

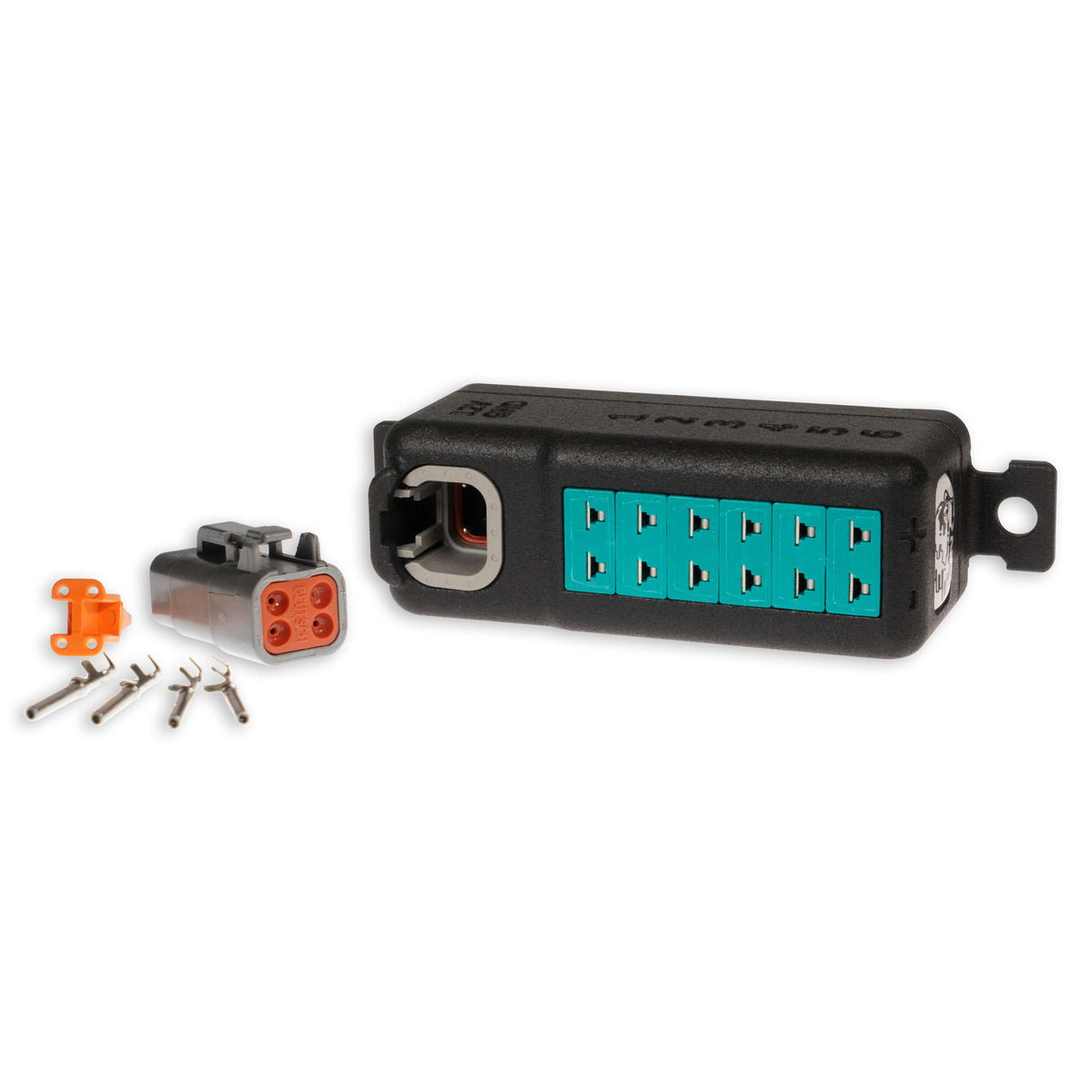

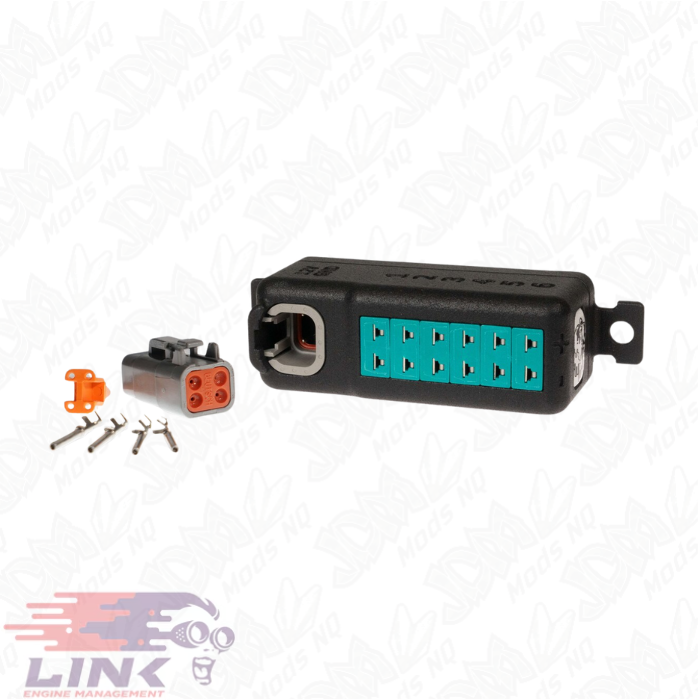

Available from JDM Mods NQ, the Link TCC06 6 Channel EGT to CAN Module is a thermocouple interface for sending exhaust-temperature data over CAN. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0386

Models Supported

• All Link ECUs with CAN Bus support.

Highlights

• DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
• Pin 1: 12V
• Pin 2: Ground
• Pin 3: Can Low
• Pin 4: Can High
• Accuracy: maximum 2% deviation

Configuration Options

• The module can be configured via wireless:
• Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps.
• Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules.
• Change of standard Can Bus ID.
• Change Big/Little Endian.

Product Dimensions

• 115mm(L)x35mm(W)x35mm(H)
• 4.53in(L)x1.38in(W)x1.38in(H)

Product Weight

• 95 grams (3.35 ounces)

Electrical

• Operating Voltage Range: 12V

What's in the Box

• 1 x CAN EGT Module - custom Link version
• 1 x DTM4 Mating Connector Kit
• 2 x Link Stickers

PCLink Calibration Name

• To setup a Link TCCXX in PCLink a provided LCS file must be used. First open the CAN Setup dialog, setup your desired Receive User Stream and set the ID to match the CAN ID setup in the TCCXX device.
• If using a TCC08, a second Receive User Stream must be setup one CAN ID after the first to receive EGT values 5-8.
• Move over to the Streams tab then select the corresponding stream. Select Load Stream then select the correct steam for your device.
• Please refer to the Support Section linked below for full set-up instructions.

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Link 101-0386 product information and installation resources
