Link TCC04 Four-Channel EGT to CAN Module
SKU:
101-0384
Increments of 1
Minimum of 1
Maximum of
6Low stock
6In stock, ready to ship
Sale price
$432.63
-100%
Regular price
Regular price
$432.63
Unit price
per
Tax included.
Shipping calculated at checkout.
Link TCC04 Four-Channel EGT to CAN Module
Sale price
$432.63
Regular price
Regular price
$432.63
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Product Description
Link TCC04 Four-Channel EGT to CAN Module

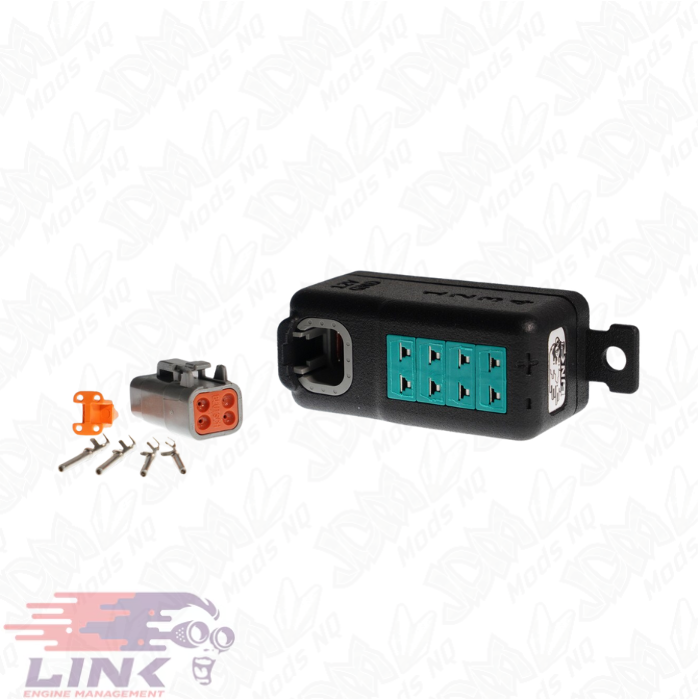

The Link TCC04, MPN 101-0384, sends temperature measurements from up to four Type-K thermocouples to a CAN-capable Link ECU. Available from JDM Mods NQ, it adds individual-cylinder exhaust-temperature monitoring without consuming the ECU's analogue voltage inputs.
Each channel uses cold-junction compensation. With suitable probes and installation, the temperature data can support tuning, cylinder comparisons and configured engine-protection strategies. The module can also monitor other temperatures, including intercooler, turbocharger, cylinder-head, coolant or oil measurements, when appropriate sensors and mounting arrangements are used.
Key Features and Compatibility
- Four Type-K thermocouple inputs
- Digital temperature communication over CAN
- Compatible with Link ECUs that support CAN bus
- Wireless setup and updates from a compatible smartphone or PC
- Live temperature readings and thermocouple status through its wireless interface
- Link-standard four-pin DTM power/CAN connection
- Maximum stated measurement deviation: 2%
Technical Specifications
| Temperature channels | 4 Type-K inputs, with cold-junction compensation |
|---|---|
| Supply voltage | 12V |
| CAN speed options | 125kbps, 250kbps, 500kbps or 1Mbps |
| CAN configuration | Adjustable CAN identifier, byte order and emulation settings |
| Dimensions (L × W × H) | 100 × 35 × 35mm |
| Unit weight | 75g |
| Measurement accuracy | Maximum 2% deviation |
Power and CAN Connector Pinout
| Pin 1 | 12V |
|---|---|
| Pin 2 | Ground |
| Pin 3 | CAN Low |
| Pin 4 | CAN High |
Package Contents
- 1 × four-channel CAN EGT module, custom Link version
- 1 × DTM4 mating-connector kit
- 2 × Link stickers
Thermocouple probes are not listed in the standard package contents. Select suitable Type-K probes separately and confirm connector, wire-polarity and mounting requirements.
Installation and PCLink Configuration
Provide suitable 12V power and ground, connect CAN High and CAN Low correctly, and follow the manufacturer's CAN wiring and termination requirements. Set the module's CAN speed and identifier to match your ECU configuration.
In PCLink, configure a Receive User Stream using the matching CAN identifier, then load the Link-supplied LCS stream definition for the TCC04. Use the exact stream for this four-channel module. Confirm all channels report plausible temperatures before using their data for engine protection.
Probe location, wiring and calibration affect the usefulness of EGT measurements. Have an experienced installer plan the installation and confirm compatibility with your ECU and probes.
Manufacturer Information
Brand: Link Engine Management
Model: TCC04
MPN: 101-0384
See the official TCC04 specifications and setup resources.
Technical Specifications, Compatibility and Supplied Items
| Models Supported | All Link ECUs with CAN Bus support. |
|---|---|
| Highlights | DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range) Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High Accuracy: maximum 2% deviation |
| Configuration Options | The module can be configured via wireless: Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps. Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules. Change of standard Can Bus ID. Change Big/Little Endian. |
| Product Dimensions | 100mm(L)x35mm(W)x35mm(H) 3.94in(L)x1.38in(W)x1.38in(H) |
| Product Weight | 75 grams (2.65 ounces) |
| Electrical | Operating Voltage Range: 12V |
| What's in the Box | 1 x 4 channel CAN EGT Module - custom Link version 1 x DTM4 Mating Connector Kit 2 x Link Stickers |
| PCLink Calibration Name | To setup a Link TCCXX in PCLink a provided LCS file must be used. First open the CAN Setup dialog, setup your desired Receive User Stream and set the ID to match the CAN ID setup in the TCCXX device. If using a TCC08, a second Receive User Stream must be setup one CAN ID after the first to receive EGT values 5-8. Move over to the Streams tab then select the corresponding stream. Select Load Stream then select the correct steam for your device. Please refer to the Support Section linked below for full set-up instructions. |
Installation and Compatibility Checks
Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
