Link Superseal Plug and Pin Kit B (TKB)

Link Superseal Plug and Pin Kit B (TKB)

Available from JDM Mods NQ, the Link Superseal Plug and Pin Kit B (TKB) is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0097

Models Supported

• Link G5 Voodoo Pro (Loom A/Pin Kit A also required)
• Link G5 Neo 4 (Loom A/Pin Kit A also required)
• Link G5 Neo 6 (Loom A/Pin Kit A also required)
• Link G4X Storm (Loom A/Pin Kit A also required)
• Link G4X and G4+ Fury (Loom A/Pin Kit A also required)
• Link G4X, G4+ and G4 Xtreme (Loom A/Pin Kit A also required)
• Link G4+ Thunder (Note: Loom A/Pin Kit A and connector kits C and D may also be required)
• Link G4+ Storm Black (Loom A/Pin Kit A also required) - Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models
• Vipec V88 (Loom A/Pin Kit A also required)
• Vipec i88 (Loom A/Pin Kit A also required)

Product Dimensions

• 35mm(L)x35mm(W)x35mm(H)
• 1.38in(L)x1.38in(W)x1.38in(H)

Product Weight

• 20 grams (0.71 ounces)

Electrical

• Operating Voltage Range: 6-18V
• Maximum Input Voltage: 250V
• Maximum Continuous Current Draw: 3-15A
• Gauges of wire: 22AWG/0.3mm2 - 16AWG/1.25mm2

Misc.

• We suggest using a waterproof back shell with this product to encapsulate the plug.

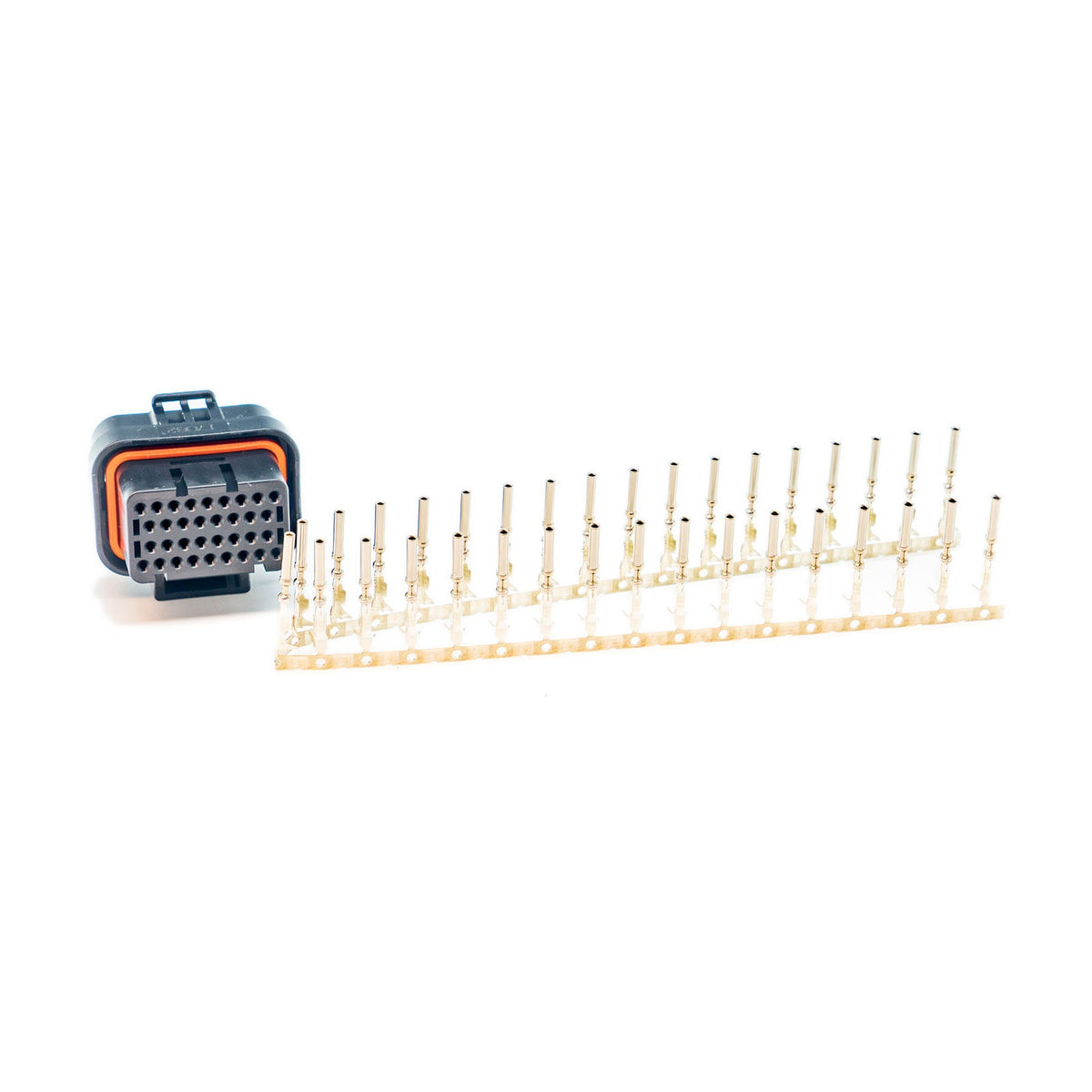

What's in the Box

• Connector Key 2 G4B
• Superseal terminal PN 101-0091

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Use the correct terminal crimping tool and the pinout for the intended connector. Verify terminal retention, continuity and pin assignments before applying power.
