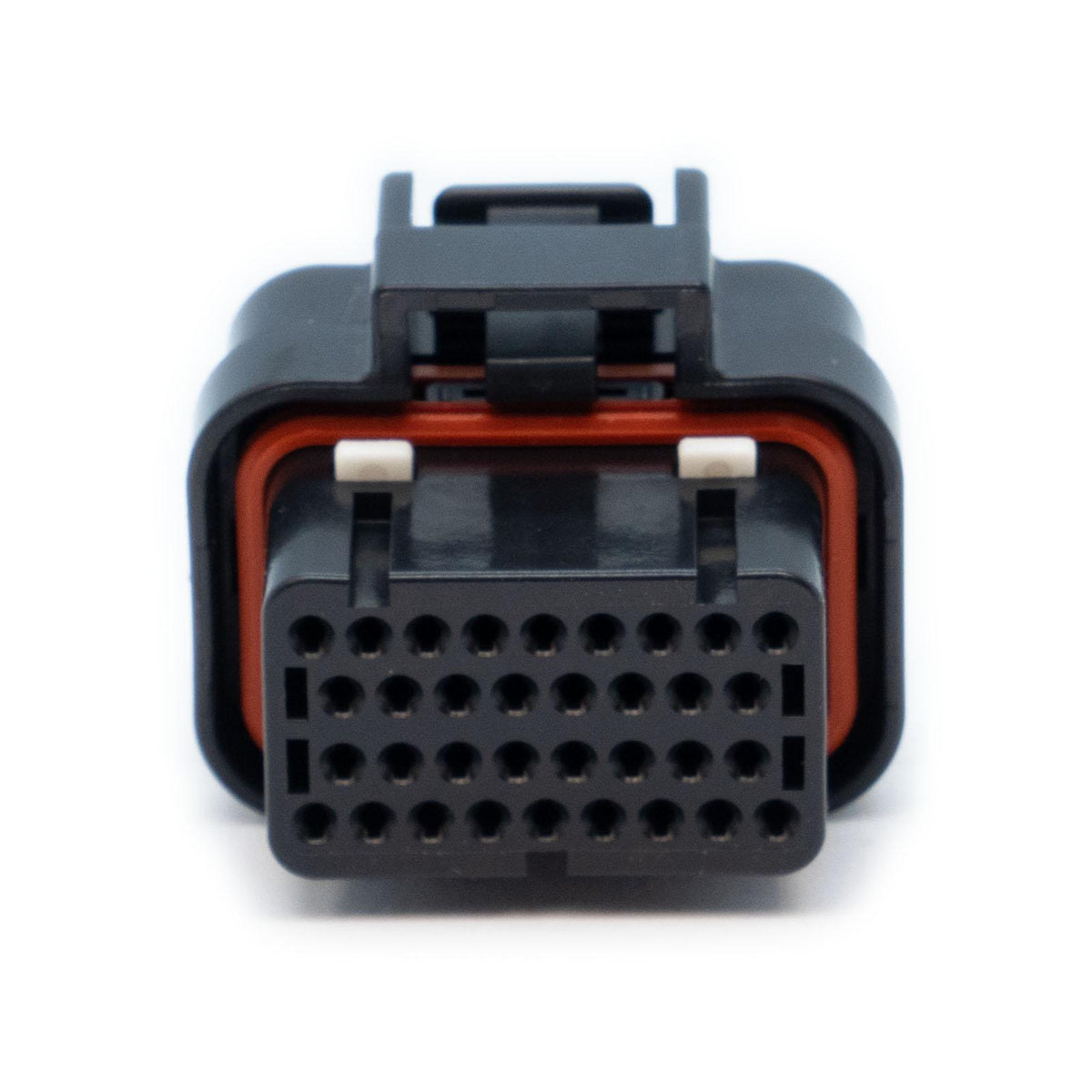

Link Superseal Plug and Pin Kit A (TKA)

Link Superseal Plug and Pin Kit A (TKA)

Available from JDM Mods NQ, the Link Superseal Plug and Pin Kit A (TKA) is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0096

Models Supported

• Link G5 Voodoo Pro (Loom A/Pin Kit A also required)
• Link G5 Neo 4 (Loom A/Pin Kit A also required)
• Link G5 Neo 6 (Loom A/Pin Kit A also required)
• All Link G4X Wire-in ECU's *(Note: Loom B/Pin Kit B will also be required for the Storm/Fury/Xtreme)*
• Link G4+ Atom. Does NOT suit the earlier G4 Atom models.
• Link G4+ Atom II
• Link G4+ Monsoon
• Link G4 Storm
• Link G4+ Storm Blue
• Link G4+ Storm Black (Note: Loom B/Pin Kit B will also be required)
• Link G4 RX
• Link G4+ Fury (Note: Loom B/Pin Kit B will also be required)
• Link G4 Xtreme (Note: Loom B/Pin Kit B will also be required)
• Link G4+ Xtreme (Note: Loom B/Pin Kit B will also be required)
• Link G4+ Thunder (Note: Loom B/Pin Kit B and connector kits C and D may also be required)
• Vipec V44
• Vipec i44
• Vipec V88 (Note: Loom B/Pin Kit B will also be required)
• Vipec i88 (Note: Loom B/Pin Kit B will also be required)

Product Dimensions

• 35mm(L)x35mm(W)x35mm(H)
• 1.38in(L)x1.38in(W)x1.38in(H)

Product Weight

• 30 grams (1.06 ounces)

Electrical

• Operating Voltage Range: 6-18V
• Maximum Input Voltage: 250V
• Maximum Continuous Current Draw: 3-15A
• Gauges of wire: 22AWG/0.3mm2 - 16AWG/1.25mm2

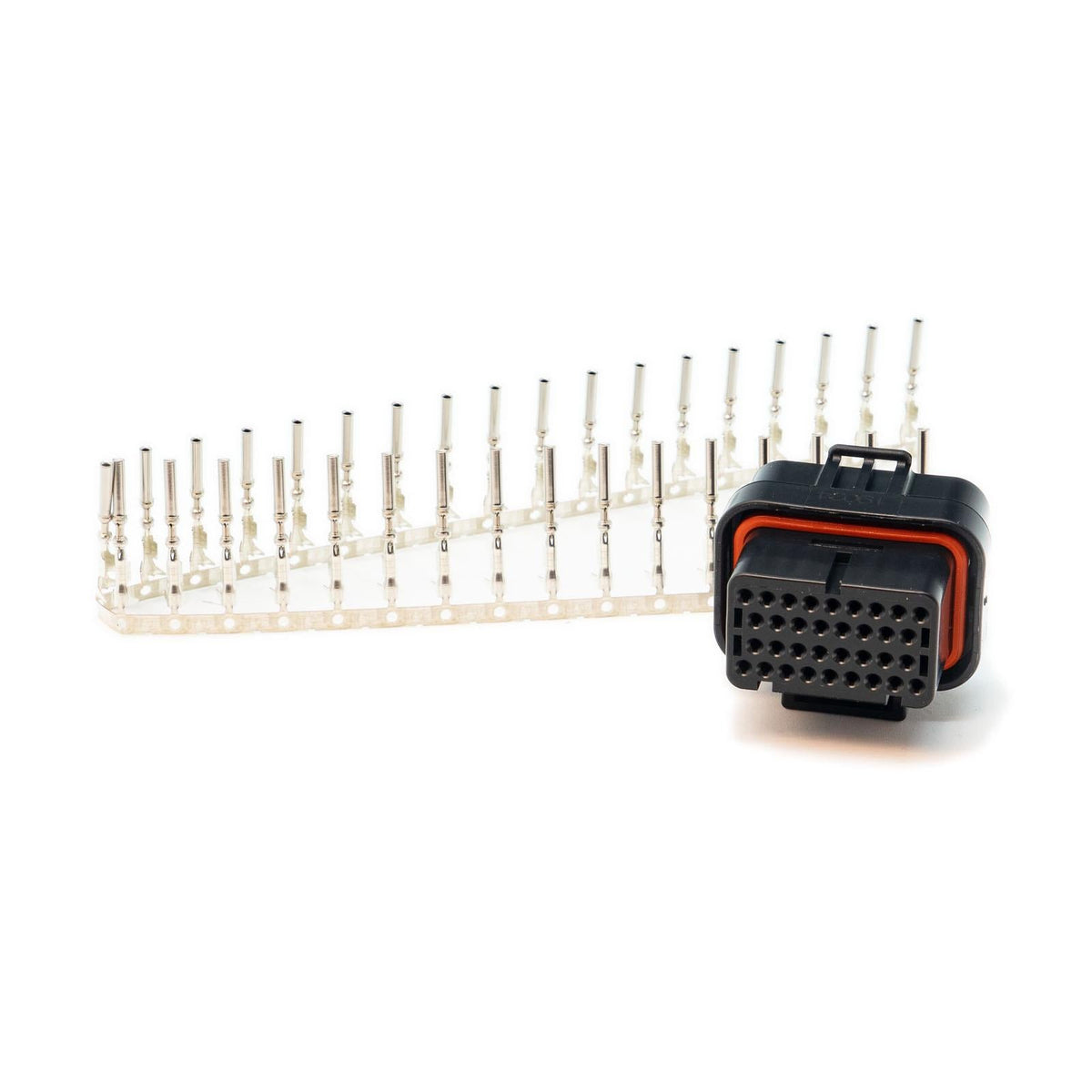

What's in the Box

• Connector Key 1 G4A
• Superseal terminal PN 101-0090

Installation and ordering

Check the specified application, dimensions and package contents before ordering. Install and configure this part according to the relevant manufacturer instructions.

Installation and Compatibility Checks

Use the correct terminal crimping tool and the pinout for the intended connector. Verify terminal retention, continuity and pin assignments before applying power.
