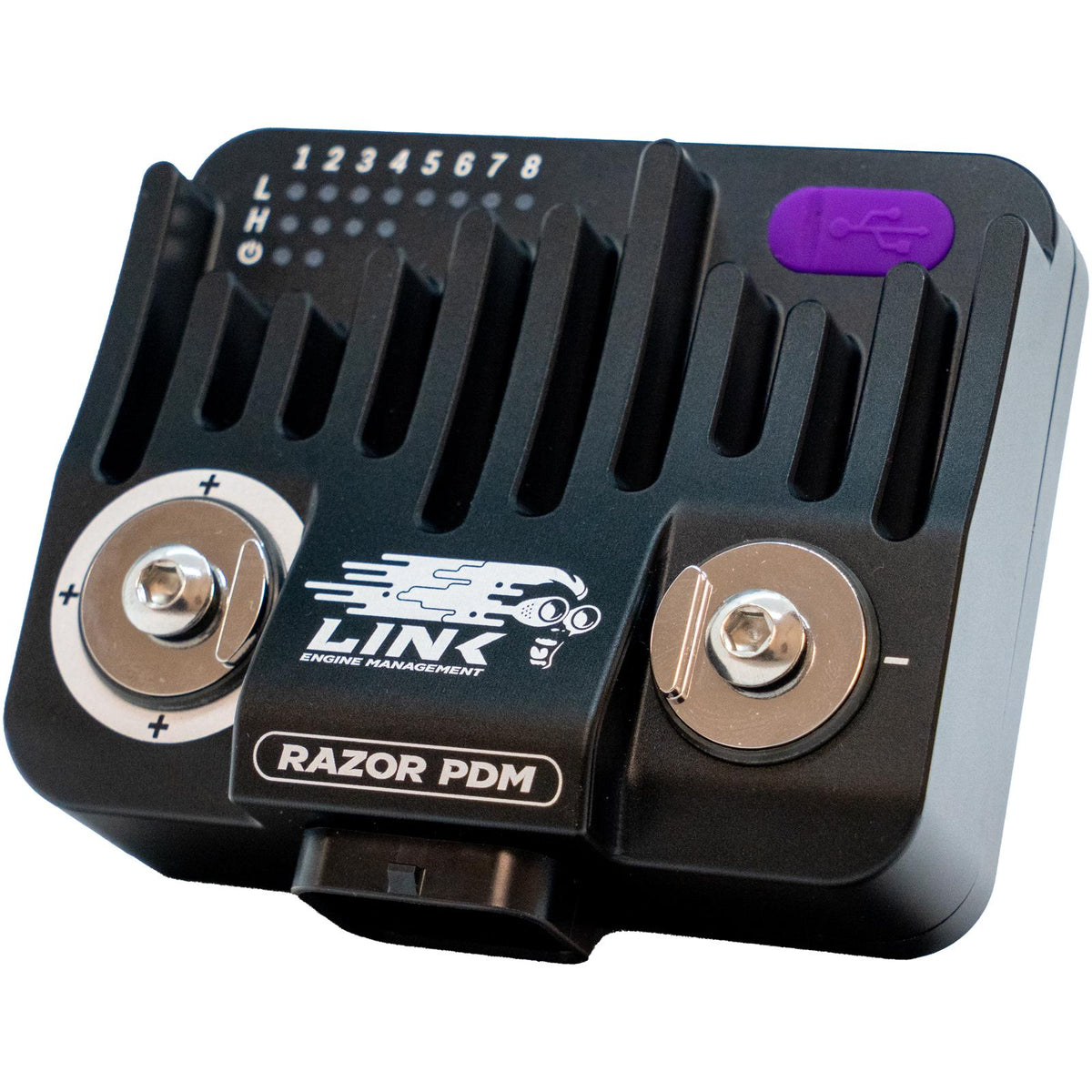

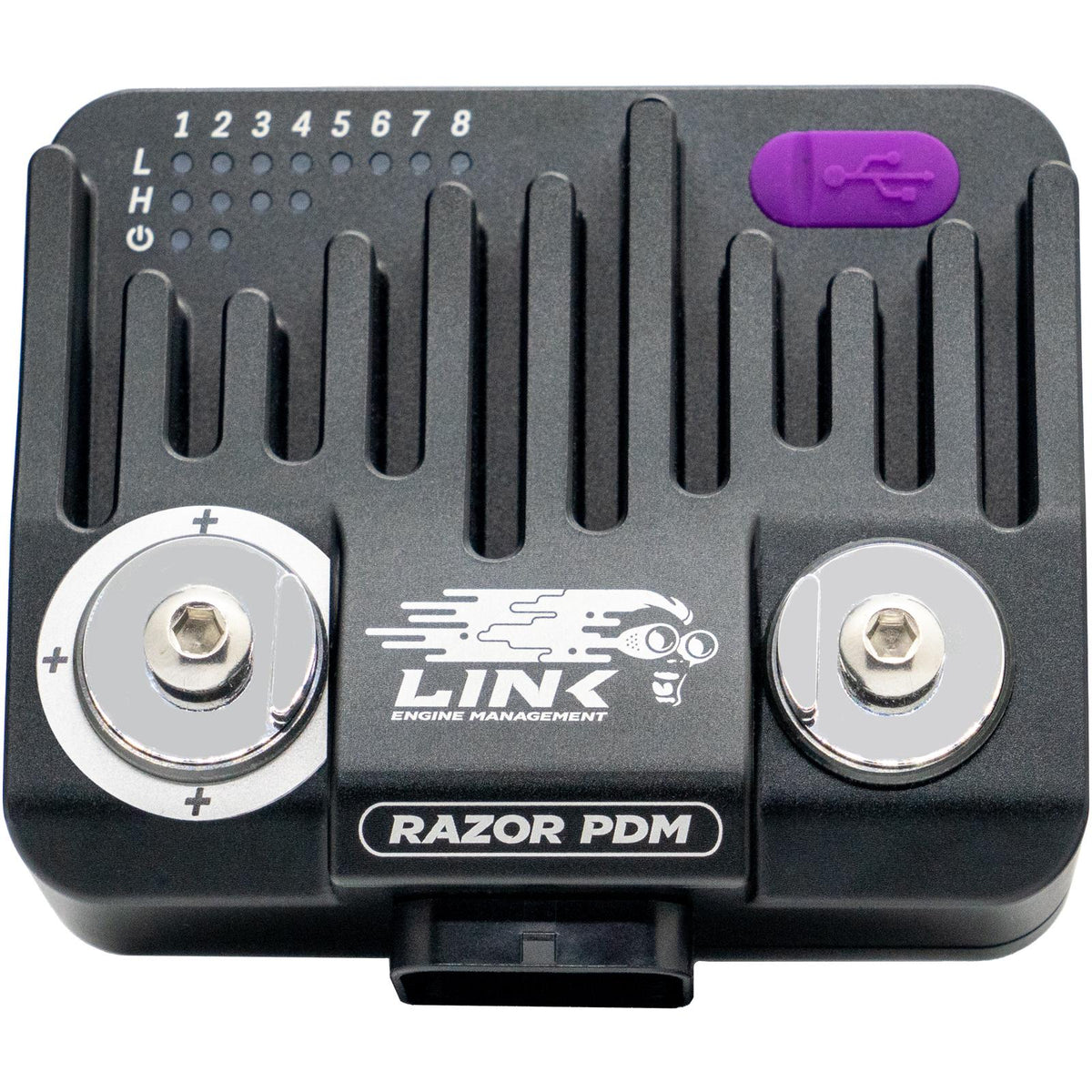

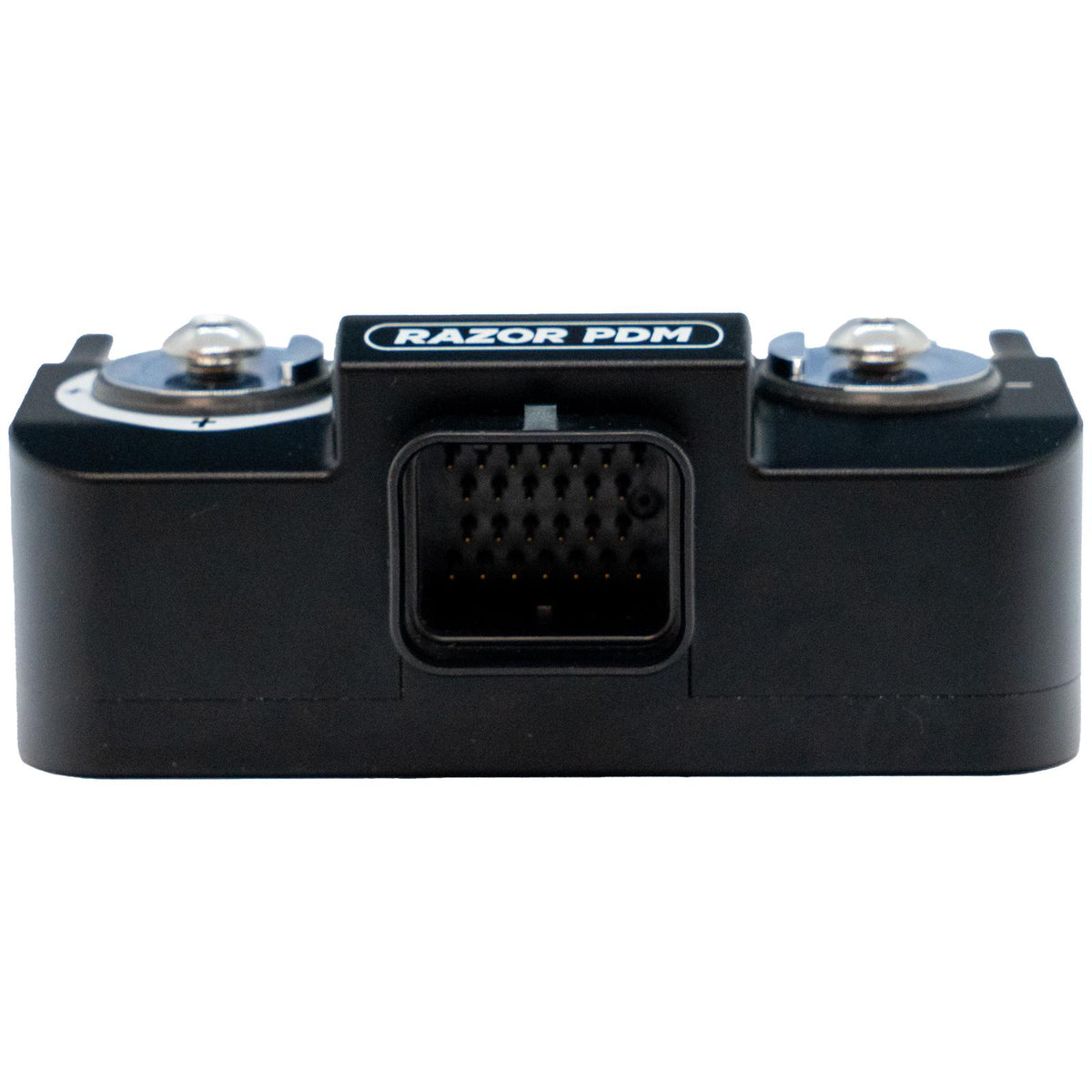

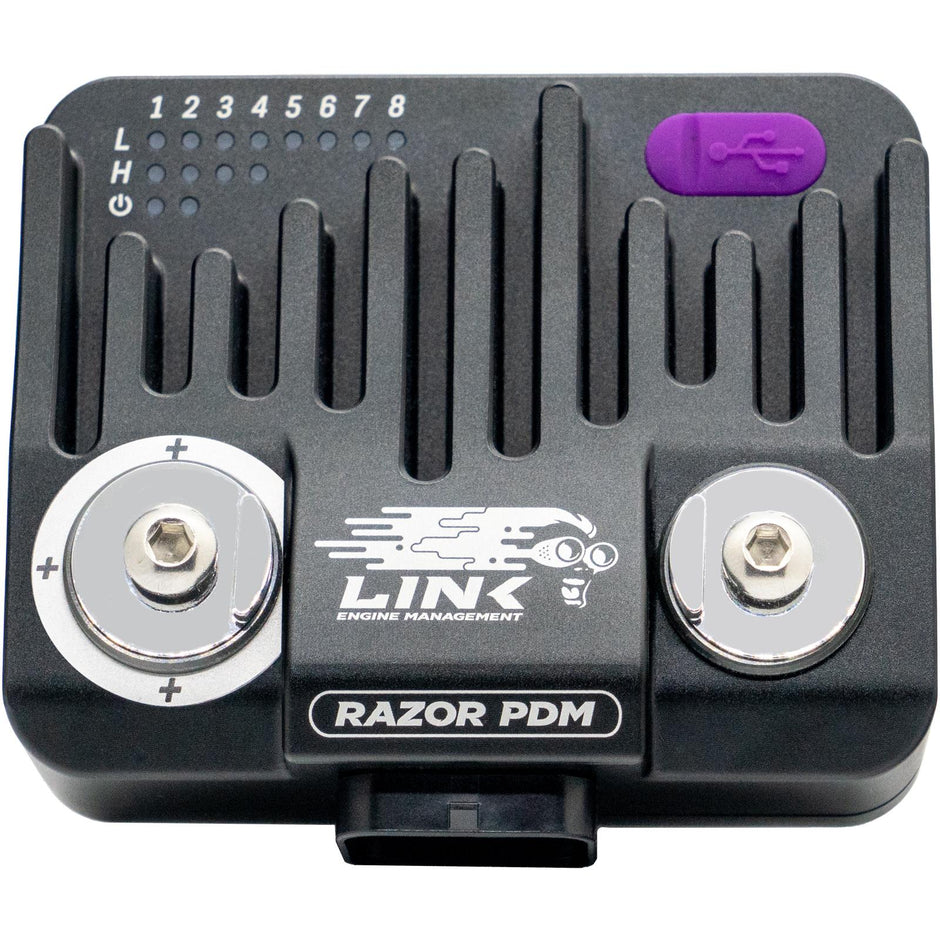

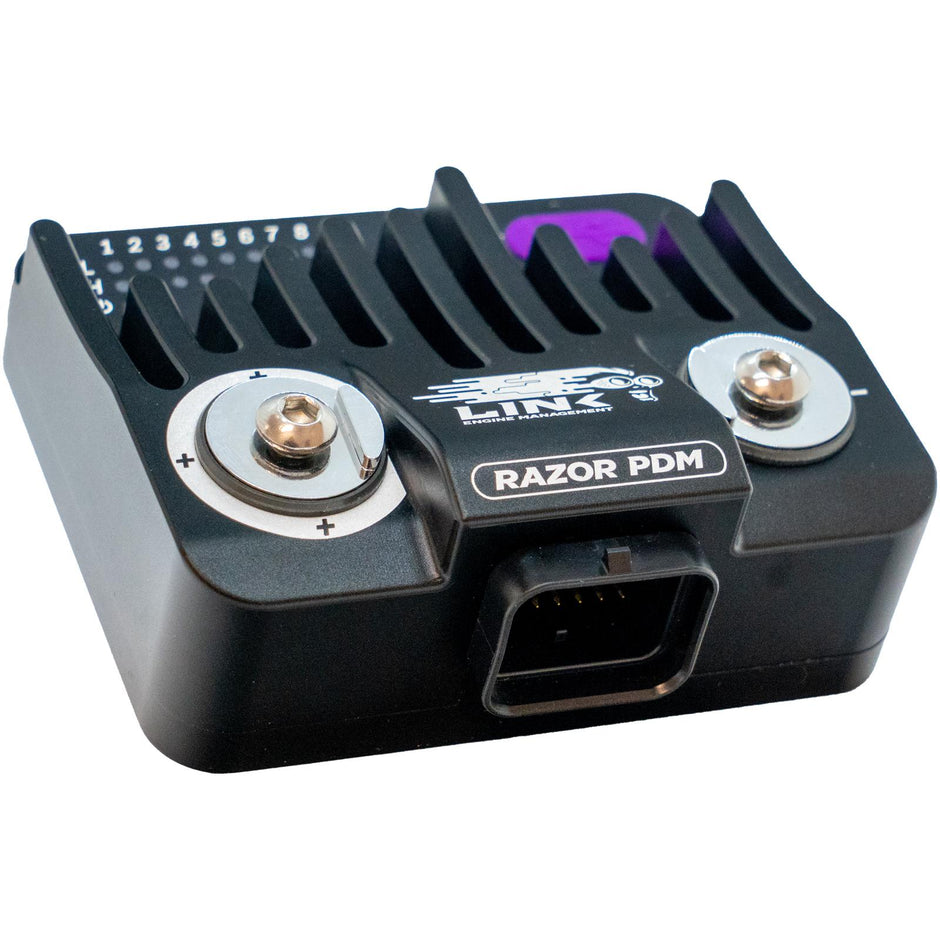

Link Razor PDM Power Distribution Module

Link Razor PDM Power Distribution Module

Available from JDM Mods NQ, the Link Razor PDM Power Distribution Module is a Link performance-electronics component for the compatible installation described below. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 135-1000

Models Supported

• The Razor PDM can control up to 4 high power outputs and 8 universal ADIO pins.

Warnings

• PDMs will get hot under large loads.

PDM Features

• Can be used in conjunction with a Link ECU or as a completely standalone device.
• Configurable Over-Current and Short Circuit Protection, with adjustable trip and resettable fuse parameters.
• Flexible and powerful control strategies including general purpose PID control, math functions, logic expressions and CAN keypad functions.
• Flexible CAN keypad control, allowing buttons to operate Razor PDM outputs, Link ECU functions or both (G5, G4X and G4+ with some limitations).
• Data logging via CAN or USB for diagnostics, analysis and troubleshooting, helping you find issues quicker.
• Multiple Razor PDM units can be connected easily via CAN for more I/O.
• USB Configuration via Link's free advanced software package, PDM Link.

Inputs and Outputs

• High Power Outputs: Four 25A continuous (80A safe peak), configurable as high side, low side, PWM or paired for H-bridge control.
• Universal ADIO: Eight Analogue/Digital/Input/Output (ADIO) pins, configurable as analogue or digital/switched inputs, or high-side outputs up to 8A each. Four ADIO pins support PWM output, while the remaining four support PWM, Frequency, Duty cycle, Speed inputs.
• Software-Controlled Pull-Ups: 4K7 to 5V.
• Current Capacity: Up to 100A continuous combined output with 160A non-repetitive peak current.
• Expansion: Multiple PDMs can be easily connected via CAN to give you more I/O. The compact nature of the Razor PDM allows you to place each PDM closest to the power draw.

Communications

• 1 CAN bus Channel
• 1 USB Type-C for configuration via PDM Link software

Product Dimensions

• 103.6mm(L) x 93.4mm(W) x 43.2mm(H)
• 4.08in(L) x 3.68in(W) x 1.70in(H)

Product Weight

• 475 grams (16.76 ounces)

Material

• Fully sealed CNC aluminium enclosure

Electrical

• Operating Voltage Range: 6-24V
• Maximum Input Voltage: 27V
• Maximum Continuous Current Draw: 140A

Misc.

• Water resistant
• -40 to +80°C operating temperature

What's in the Box

• Link Razor PDM
• Quick Start guide
• Mounting plate and screws
• Superseal C Plug and Pin Kit
• USB-C connection cable
• Positive terminal insulation boot
• 2 x high-current ring terminals and bolts

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Plan current demand, cable sizes, grounding and output protection for each circuit. Configure the module before connecting controlled loads; bundled module ratings apply per unit.
