Link RACEPAD - Steering Wheel CAN Keypad

Link RACEPAD - Steering Wheel CAN Keypad

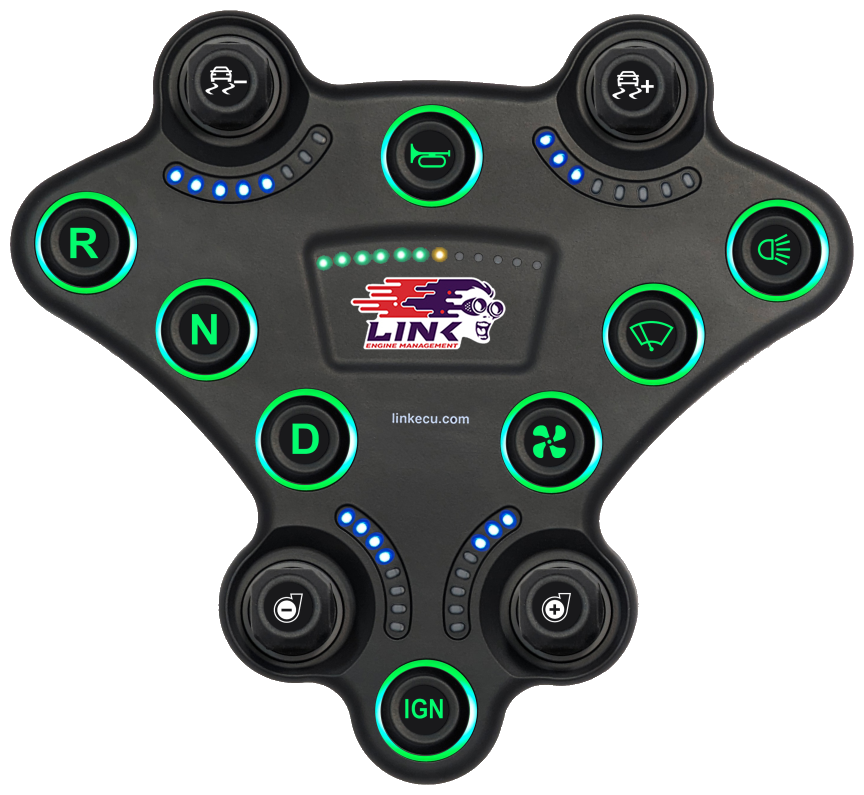

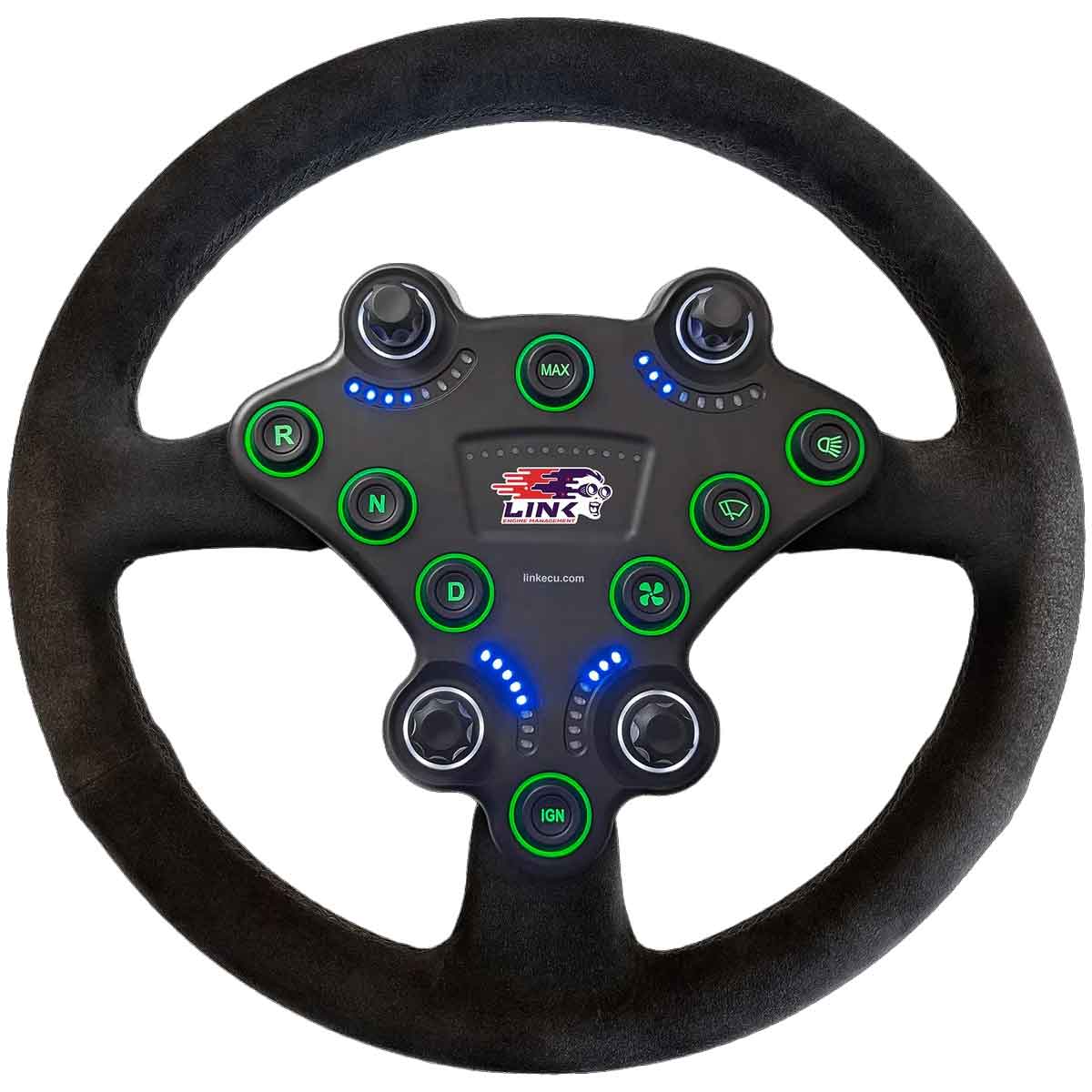

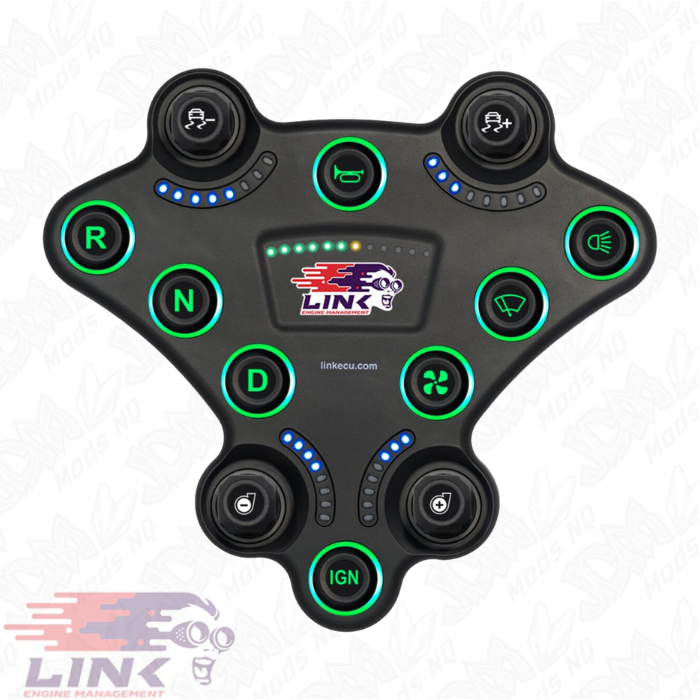

Available from JDM Mods NQ, the Link RACEPAD - Steering Wheel CAN Keypad is a programmable CAN interface for controlling functions through a compatible ECU or power-distribution module. Use the fitment, technical and package details below to select the correct part for your build.

Manufacturer part number: 101-0332

Models Supported

• Compatible with all G4X and G5 ECUs

Warnings

• Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included loose in box.

Switch Life

• 3 million operations

Default Baud Rate

• 1000kbit/s

Chemical Resistance

• Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid

UV Protection

• UVB 400 hours

Product Dimensions

• 20x19x7cm

Product Weight

• 425g

Thickness

• 36.2mm excluding knob height

Electrical

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

What's in the Box

• Blink Racepad 8 button + DTM4
• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72

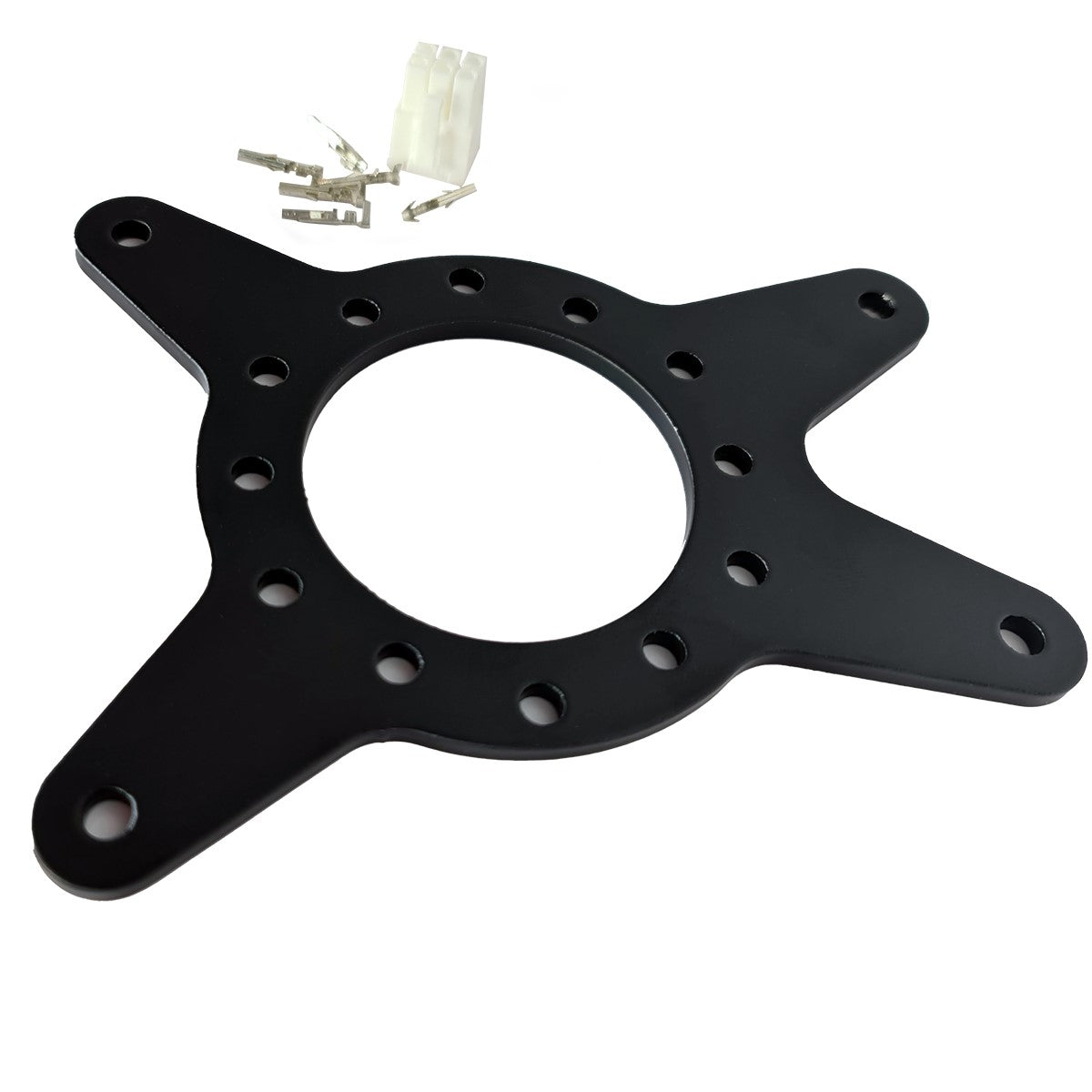

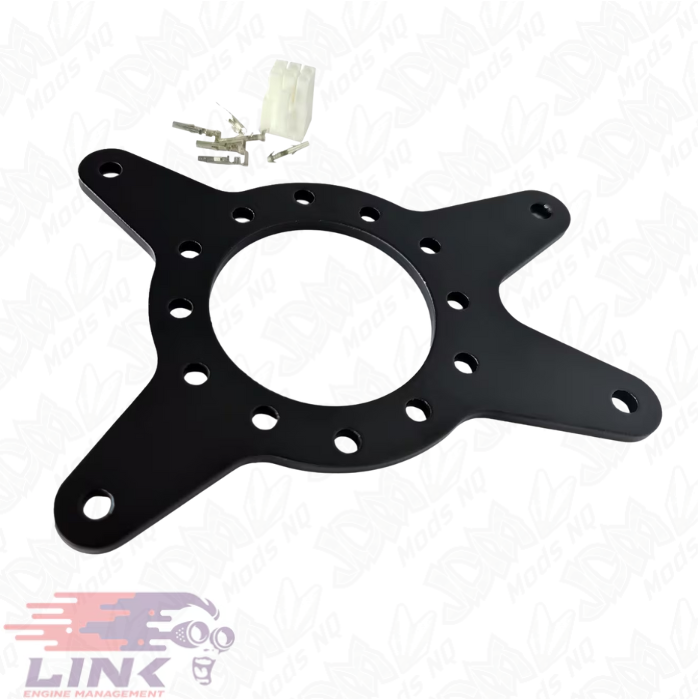

• Deutsch 4 way Connector Kit

Connector

• TE Connectivity Deutsch DTM 4-pin and Molex 6-pin 101-0156
• Black = Ground
• Red = Power
• White = CAN High
• Blue = CAN Low

Installation and ordering

Confirm connector type, wiring, supply voltage and compatibility with the ECU or connected device before purchase. Follow the relevant Link wiring diagram, calibration and mounting instructions. CAN devices require a compatible CAN configuration and correct bus termination. Accessories are included only where they are explicitly listed below.

Installation and Compatibility Checks

Confirm the specified device compatibility, connectors and installation requirements before ordering. Use a qualified installer for vehicle electrical work.
